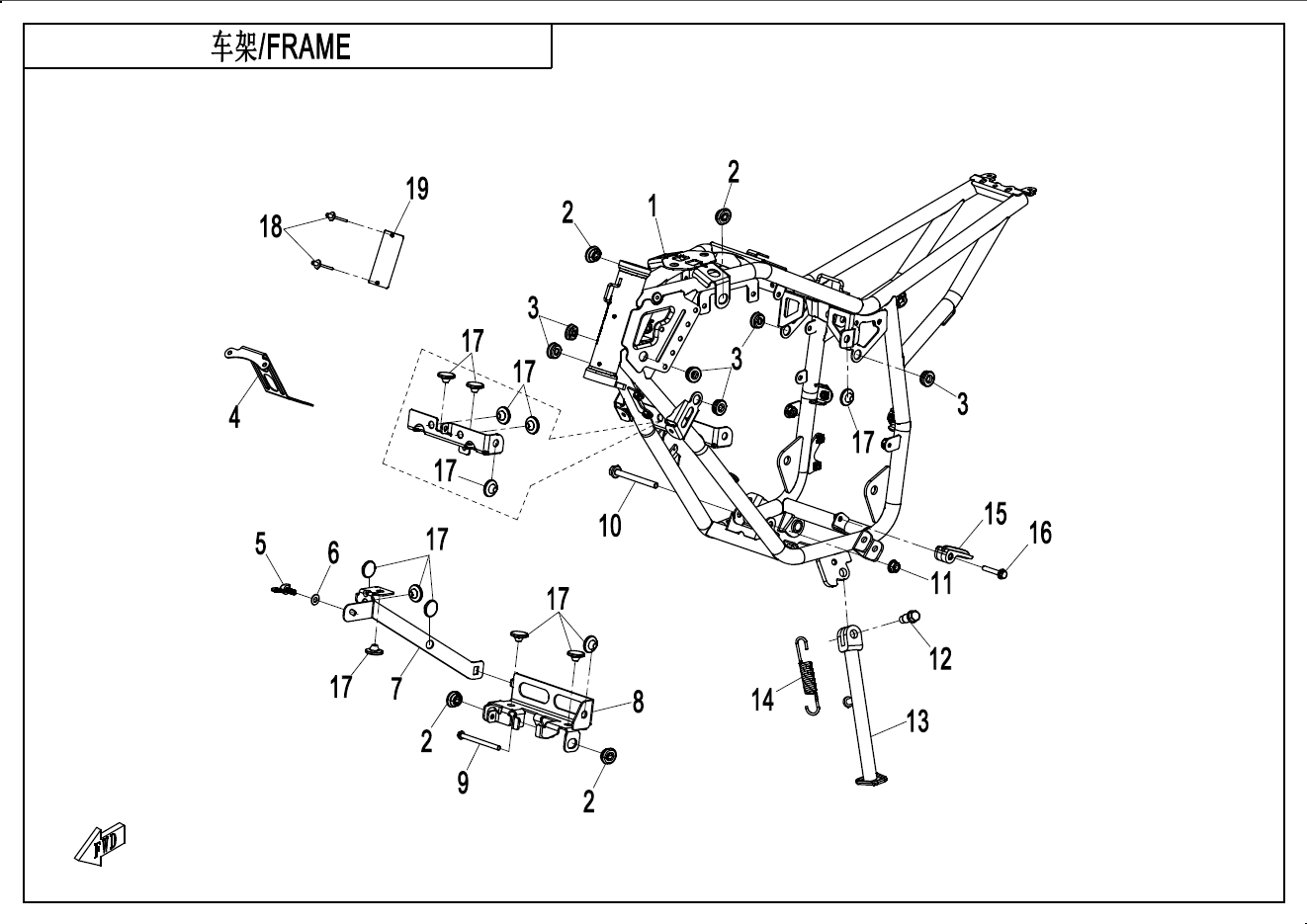

FRAME ASSY - F03

FRAME ASSY - F03

No.

01
P/N (SKU): EC3V-031000-1000-0FM00
Part Name: FRAME ASSY
Effective: 2023-07-24
Alternative parts: EC3V-031000-1001-0FM00
Specification: BLUE
Price: 182,00 € : 182,00 €
02
P/N (SKU): 8080-040064
Part Name: FRONT FENDER DAMPER
Effective: 2023-07-24
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 5BY0-040010
Part Name: RUBBER SLEEVE
Effective: 2023-07-24
Alternative parts:
Price: 2,00 € : 2,00 €
-+
04
P/N (SKU): EC3V-034000-1000
Part Name: FRONT FENDER STIFFENER
Effective: 2023-07-24
Alternative parts:
Price: 4,00 € : 4,00 €
-+
05
P/N (SKU): EC3V-033001-1000-M1
Part Name: DISC SCREW
Effective: 2023-07-24
Alternative parts:
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 30309-060870
Part Name: WASHER
Effective: 2023-07-24
Alternative parts:
Specification: φ6@BLACK ZINC
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): EC3V-033000-1000
Part Name: BATTERY QUICK-RELEASE DAMPER
Effective: 2023-07-24
Alternative parts:
Price: 4,50 € : 4,50 €
-+
08
P/N (SKU): EC3V-032000-1000
Part Name: BATTERY BRACKET
Effective: 2023-07-24
Alternative parts:
Price: 3,50 € : 3,50 €
-+
09
P/N (SKU): 0A70-011005
Part Name: BOLT M6x75
Effective: 2023-07-24
Alternative parts: 0A70-011005-00001
Specification: M6x75
Price: 1,50 € : 1,50 €
10
P/N (SKU): 30006-080075810
Part Name: BOLT
Effective: 2023-07-24
Alternative parts:
Specification: M8×75
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2023-07-24
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): ED2V-030001-1000
Part Name: SIDE BRACKET BOLT
Effective: 2023-07-24
Alternative parts:
Price: 2,50 € : 2,50 €
-+
13
P/N (SKU): EC3V-030310-1000-0BP00
Part Name: SIDE BRACKET ASSY
Effective: 2023-07-24
Alternative parts: EC3V-030310-1001-0BP00
Specification: MAUD SPIRIT BLACK
Price: 13,00 € : 13,00 €
-+
14
P/N (SKU): ED2V-030320-1000
Part Name: SIDE BRACKET SPRING
Effective: 2023-07-24
Alternative parts: ED2V-030320-1001
Price: 0,00 € : 0,00 €
15
P/N (SKU): 6KJ0-030510
Part Name: CHAIN GUARD ASSY
Effective: 2023-07-24
Alternative parts:
Price: 3,50 € : 3,50 €
-+
16
P/N (SKU): 30006-060035810
Part Name: BOLT
Effective: 2023-07-24
Alternative parts:
Specification: M6×35
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): ED2V-131005-1000
Part Name: RUBBER DAMPER
Effective: 2023-07-24
Alternative parts:
Price: 3,00 € : 3,00 €
-+
18
P/N (SKU): 30902-0401320
Part Name: RIVET
Effective: 2023-07-24
Alternative parts:
Specification: φ4×13
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): ED2V-190011-1000
Part Name: VIN PLATE
Effective: 2023-07-24
Remarks: INTL/EU5
Alternative parts:
Price: 2,00 € : 2,00 €
-+
