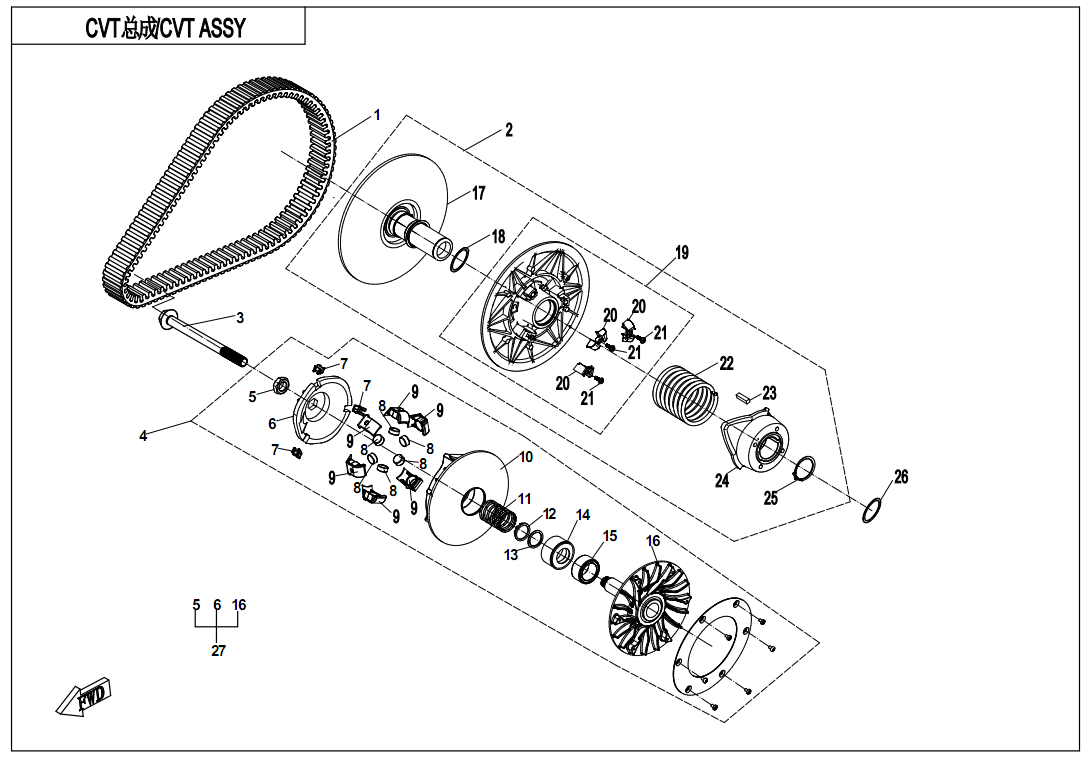

CVT ASSY(NON SPEED LIMITED&DIE THRUST COLLAR) - E05

CVT ASSY(NON SPEED LIMITED&DIE THRUST COLLAR) - E05

No.

01
P/N (SKU): 0JWA-055000-10000
Part Name: TOOTHED DRIVE BELT
Alternative parts:
Price: 202,00 € : 202,00 €
-+
02
P/N (SKU): 0JYA-052000
Part Name: DRIVEN PULLEY ASSY
Alternative parts:
Price: 402,00 € : 402,00 €
-+
03
P/N (SKU): 0JY0-050001
Part Name: BOLT, DRIVE PULLEY
Alternative parts: 0JY0-050001-00001
Price: 4,00 € : 4,00 €
04
P/N (SKU): 0JYA-051000
Part Name: DRIVE PULLEY ASSY
Alternative parts: 0JYA-051000-00001
Price: 699,00 € : 699,00 €
04
P/N (SKU): 0JYA-051000-00001
Part Name: DRIVE PULLEY ASSY
Alternative parts: 0JYA-051000-00002
Price: 685,00 € : 685,00 €
05
P/N (SKU): 0JYA-051013-10000
Part Name: NUT, DRIVE PULLEY
Alternative parts:
Specification: CVtech
Price: 80,00 € : 80,00 €
-+
05
P/N (SKU): 0JYA-051013
Part Name: LOCK NUT, DRIVE PULLEY
Alternative parts: 0JYA-051013-10000
Specification: CVtech
Price: 20,00 € : 20,00 €
06
P/N (SKU): 0JYA-051006-10000
Part Name: THRUST COLLAR
Alternative parts:
Specification: CVtech
Price: 327,00 € : 327,00 €
-+
07
P/N (SKU): 0JYA-051004
Part Name: NYLON SLIDER
Alternative parts:
Specification: CVtech
Price: 17,00 € : 17,00 €
-+
08
P/N (SKU): 0GR0-051004-20000
Part Name: WEIGHT SLIDER
Alternative parts:
Specification: CVtech
Price: 9,00 € : 9,00 €
-+
09
P/N (SKU): 0GR0-051005
Part Name: NYLON PROTECTOR, WEIGHT SLIDER
Alternative parts:
Specification: CVtech
Price: 20,00 € : 20,00 €
-+
10
P/N (SKU): 0JYA-051100
Part Name: MOVING PLATE ASSY, DRIVE PULLEY
Alternative parts:
Specification: CVtech
Price: 346,00 € : 346,00 €
-+
11
P/N (SKU): 0JY0-051002
Part Name: SPRING,DRIVE PULLEY
Alternative parts:
Specification: CVtech
Price: 47,00 € : 47,00 €
-+
12
P/N (SKU): 0GR0-051012
Part Name: NYLON BUSHING
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
13
P/N (SKU): 0GR0-051011
Part Name: STEEL WASHER
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
14
P/N (SKU): 0GR0-051001
Part Name: SPRING SEAT
Alternative parts:
Specification: CVtech
Price: 60,00 € : 60,00 €
-+
15
P/N (SKU): 0JY0-051210
Part Name: BEARING ASSY, DRIVE PULLEY
Alternative parts:
Specification: CVtech
Price: 173,00 € : 173,00 €
-+
16
P/N (SKU): 0JYA-051200
Part Name: DRIVE FIXED PULLEY ASSY
Alternative parts:
Specification: CVtech
Price: 529,00 € : 529,00 €
-+
17
P/N (SKU): 0GR0-052100
Part Name: DRIVEN FIXED PULLEY ASSY
Alternative parts:
Specification: CVtech
Price: 384,00 € : 384,00 €
-+
18
P/N (SKU): 0JYA-052007
Part Name: NYLON WASHER
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
19
P/N (SKU): 0GR0-0522A0
Part Name: SLIDING FLANGE ASSY
Alternative parts:
Specification: CVtech
Price: 324,00 € : 324,00 €
-+
20
P/N (SKU): 0GR0-052005
Part Name: NYLON BLOCK
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
21
P/N (SKU): 0GR0-052006
Part Name: SCREW
Alternative parts:
Specification: CVtech
Price: 4,50 € : 4,50 €
-+
22
P/N (SKU): 0GR0-052001
Part Name: SPRING, DRIVEN PULLEY
Alternative parts:
Specification: CVtech
Price: 80,00 € : 80,00 €
-+
23
P/N (SKU): 0GR0-052003
Part Name: TAPER KEY
Alternative parts:
Specification: CVtech
Price: 4,00 € : 4,00 €
-+
24
P/N (SKU): 0GR0-052002
Part Name: CAM PLATE
Alternative parts:
Specification: CVtech
Price: 97,00 € : 97,00 €
-+
25
P/N (SKU): 0GR0-052004
Part Name: CIRCLIP
Alternative parts:
Specification: CVtech
Price: 15,00 € : 15,00 €
-+
26
P/N (SKU): 0GR0-050001-00001
Part Name: ADJUSTING WASHER
Alternative parts:
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 0GR0-050001
Part Name: ADJUSTING WASHER
Alternative parts: 0GR0-050001-00001
Specification: CVtech
Price: 2,00 € : 2,00 €
27
P/N (SKU): 0JYA-0510A0
Part Name: SERVICE KITS, THRUST DISC
Alternative parts:
Specification: CVtech
Price: 689,00 € : 689,00 €
-+
