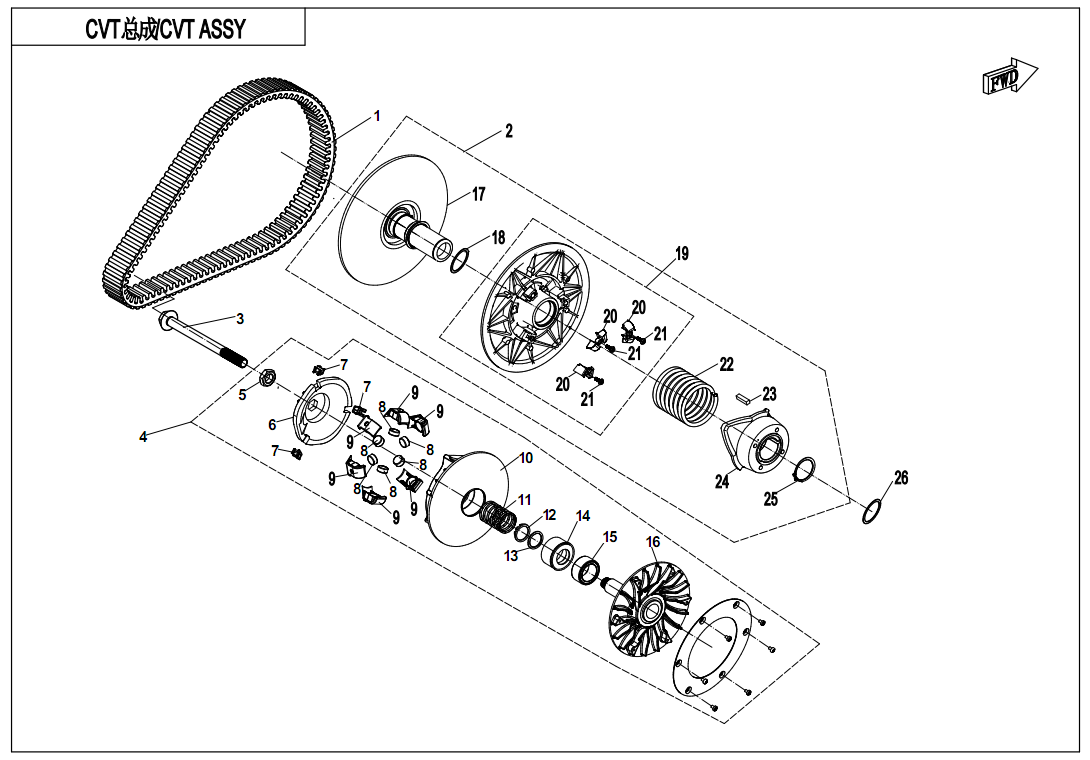

CVT ASSY - E05 | 2019, ENGINE, 2V91Y-U10 | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0JWA-055000-10000

Part Name: TOOTHED DRIVE BELT

Alternative parts:

Price: 198,00 € : 198,00 €

02

P/N (SKU): 0JYA-052000

Part Name: DRIVEN PULLEY ASSY

Alternative parts:

Price: 391,50 € : 391,50 €

03

P/N (SKU): 0JY0-050001

Part Name: BOLT, DRIVE PULLEY

Alternative parts: 0JY0-050001-00001

Price: 3,30 € : 3,30 €

04

P/N (SKU): 0JYA-051000-10000

Part Name: DRIVE PULLEY ASSY

Alternative parts: 0JYA-051000-10001

Price: 690,90 € : 690,90 €

05

P/N (SKU): 0JYA-051013-10000

Part Name: NUT, DRIVE PULLEY

Alternative parts:

Specification: CVtech

Price: 65,60 € : 65,60 €

06

P/N (SKU): 0JYA-051006-10000

Part Name: THRUST COLLAR

Alternative parts:

Specification: CVtech

Price: 202,40 € : 202,40 €

07

P/N (SKU): 0JYA-051004

Part Name: NYLON SLIDER

Alternative parts:

Specification: CVtech

Price: 13,60 € : 13,60 €

08

P/N (SKU): 0JYA-051001

Part Name: WEIGHT SLIDER

Alternative parts:

Price: 25,70 € : 25,70 €

09

P/N (SKU): 0GR0-051005

Part Name: NYLON PROTECTOR, WEIGHT SLIDER

Alternative parts:

Specification: CVtech

Price: 16,90 € : 16,90 €

10

P/N (SKU): 0JYA-051100

Part Name: MOVING PLATE ASSY, DRIVE PULLEY

Alternative parts:

Specification: CVtech

Price: 339,50 € : 339,50 €

11

P/N (SKU): 0JY0-051002

Part Name: SPRING,DRIVE PULLEY

Alternative parts:

Specification: CVtech

Price: 35,20 € : 35,20 €

12

P/N (SKU): 0GR0-051012

Part Name: NYLON BUSHING

Alternative parts:

Specification: CVtech

Price: 14,00 € : 14,00 €

13

P/N (SKU): 0GR0-051011

Part Name: STEEL WASHER

Alternative parts:

Specification: CVtech

Price: 11,40 € : 11,40 €

14

P/N (SKU): 0GR0-051001

Part Name: SPRING SEAT

Alternative parts:

Specification: CVtech

Price: 56,80 € : 56,80 €

15

P/N (SKU): 0JY0-051210

Part Name: BEARING ASSY, DRIVE PULLEY

Alternative parts:

Specification: CVtech

Price: 169,90 € : 169,90 €

16

P/N (SKU): 0JYA-051200

Part Name: DRIVE FIXED PULLEY ASSY

Alternative parts:

Specification: CVtech

Price: 520,40 € : 520,40 €

17

P/N (SKU): 0GR0-052100

Part Name: DRIVEN FIXED PULLEY ASSY

Alternative parts:

Specification: CVtech

Price: 377,30 € : 377,30 €

18

P/N (SKU): 0JYA-052007

Part Name: NYLON WASHER

Alternative parts:

Specification: CVtech

Price: 11,40 € : 11,40 €

19

P/N (SKU): 0GR0-0522A0

Part Name: SLIDING FLANGE ASSY

Alternative parts:

Specification: CVtech

Price: 318,50 € : 318,50 €

20

P/N (SKU): 0GR0-052005

Part Name: NYLON BLOCK

Alternative parts:

Specification: CVtech

Price: 11,40 € : 11,40 €

21

P/N (SKU): 0GR0-052006

Part Name: SCREW

Alternative parts:

Specification: CVtech

Price: 2,95 € : 2,95 €

22

P/N (SKU): 0GR0-052001

Part Name: SPRING, DRIVEN PULLEY

Alternative parts:

Specification: CVtech

Price: 77,80 € : 77,80 €

23

P/N (SKU): 0GR0-052003

Part Name: TAPER KEY

Alternative parts:

Specification: CVtech

Price: 2,95 € : 2,95 €

24

P/N (SKU): 0GR0-052002

Part Name: CAM PLATE

Alternative parts:

Specification: CVtech

Price: 94,60 € : 94,60 €

25

P/N (SKU): 0GR0-052004

Part Name: CIRCLIP

Alternative parts:

Specification: CVtech

Price: 11,40 € : 11,40 €

26

P/N (SKU): 0GR0-050001-00001

Part Name: ADJUSTING WASHER

Alternative parts:

Price: 0,55 € : 0,55 €

26

P/N (SKU): 0GR0-050001

Part Name: ADJUSTING WASHER

Alternative parts: 0GR0-050001-00001

Specification: CVtech

Price: 1,25 € : 1,25 €
