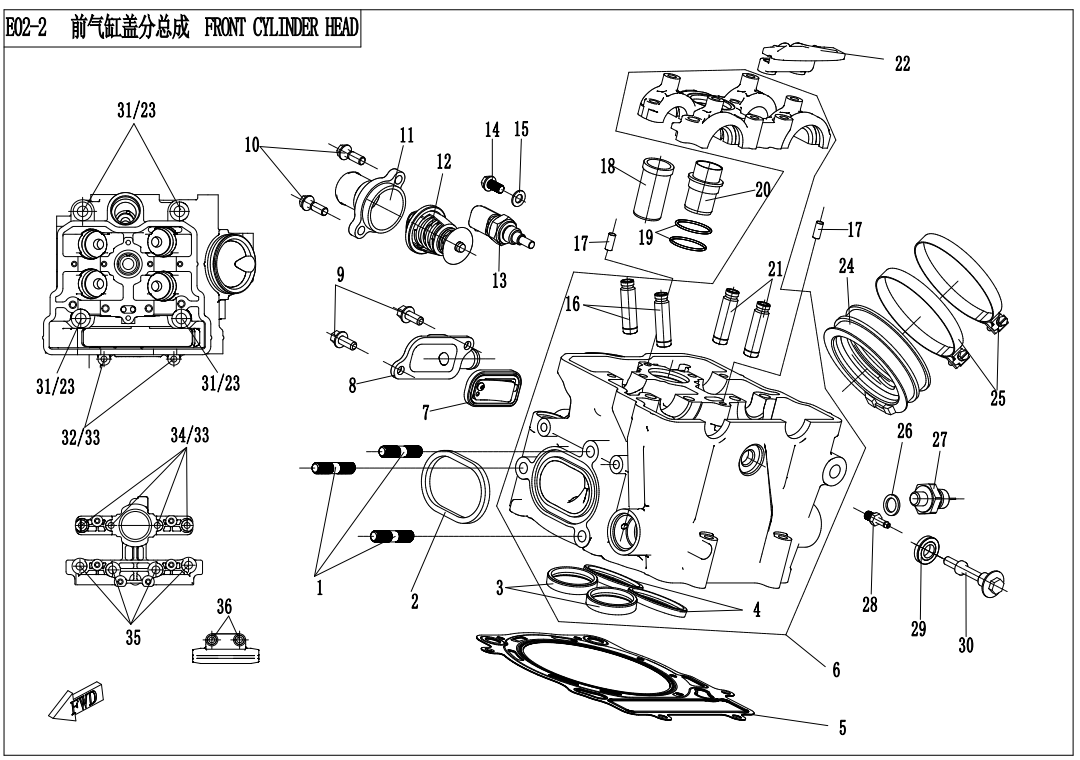

FRONT CYLINDER HEAD - E02-2

FRONT CYLINDER HEAD - E02-2

No.

01
P/N (SKU): 1F30-022012
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M8X37
Price: 1,80 € : 1,80 €
-+
02
P/N (SKU): 1F30-022020
Part Name: GASKET, EXHAUST PIPE
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
03
P/N (SKU): 1F30-022213
Part Name: RING, AIR EXHAUST VALVE SEAT
Effective: 2021-02-26
Alternative parts:
Price: 5,39 € : 5,39 €
-+
04
P/N (SKU): 1F30-022212
Part Name: RING, AIR INTAKE VALVE SEAT
Effective: 2021-02-26
Alternative parts:
Price: 5,39 € : 5,39 €
-+
05
P/N (SKU): 1F30-022600
Part Name: CYLINDER HEAD GASKET ASSY
Effective: 2021-02-26
Alternative parts:
Price: 12,50 € : 12,50 €
-+
06
P/N (SKU): 1F30-022200-0BP00
Part Name: FIRST CYLINDER HEAD ASSY
Effective: 2021-04-12
Alternative parts:
Price: 553,50 € : 553,50 €
-+
06
P/N (SKU): 1F30-022200-0B201
Part Name: FIRST CYLINDER HEAD
Effective: 2021-07-15
Alternative parts:
Price: 306,50 € : 306,50 €
-+
06
P/N (SKU): 1F30-022200-0BP01
Part Name: FIRST CYLINDER HEAD
Effective: 2021-07-15
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 271,25 € : 271,25 €
-+
07
P/N (SKU): 1F30-026100-10000
Part Name: SPRING VALVE ASSY
Effective: 2021-02-26
Alternative parts:
Price: 6,50 € : 6,50 €
-+
08
P/N (SKU): 1F30-026001-2BP00
Part Name: SPRING VALVE CAP
Effective: 2021-02-26
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 5,00 € : 5,00 €
-+
09
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Effective: 2021-02-26
Alternative parts:
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0010-023008-0010
Part Name: BOLT M6x18
Effective: 2021-02-26
Alternative parts: 0010-023008-00001
Specification: M6x18
Price: 1,50 € : 1,50 €
11
P/N (SKU): 1F30-022014-10000
Part Name: THERMOSTAT CAP
Effective: 2021-02-26
Alternative parts:
Price: 13,50 € : 13,50 €
-+
11
P/N (SKU): 1F30-022014-1BP00
Part Name: THERMOSTAT CAP
Effective: 2021-04-12
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 4,80 € : 4,80 €
-+
12
P/N (SKU): 1F30-022900
Part Name: THERMOSTAT ASSY
Effective: 2021-02-26
Alternative parts:
Price: 13,00 € : 13,00 €
-+
13
P/N (SKU): 018B-022810
Part Name: COOLANT TEMP. SENSOR
Effective: 2021-02-26
Alternative parts:
Price: 27,00 € : 27,00 €
-+
14
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2021-02-26
Alternative parts:
Specification: M6x12
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0010-080011
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 6x12x1
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 1F30-022214
Part Name: EXHAUST VALVE GUIDE
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
17
P/N (SKU): 30406-00500
Part Name: ROLLER NEEDLE
Effective: 2021-02-26
Alternative parts:
Specification: P5x11.8
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 1F30-022016
Part Name: SLEEVE, SPARK PLUG
Effective: 2021-02-26
Alternative parts:
Price: 6,05 € : 6,05 €
-+
19
P/N (SKU): 1F30-022018
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 29.87x1.78
Price: 2,80 € : 2,80 €
-+
20
P/N (SKU): 1F30-022017
Part Name: SLEEVE, SPARK PLUG
Effective: 2021-02-26
Alternative parts:
Price: 6,60 € : 6,60 €
-+
21
P/N (SKU): 1F30-022215
Part Name: INTAKE VALVE GUIDE
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
22
P/N (SKU): 1F30-022800
Part Name: CHAIN GUIDE BLOCK
Effective: 2021-02-26
Alternative parts:
Price: 5,39 € : 5,39 €
-+
23
P/N (SKU): 1F30-022005
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 11.5x20x3
Price: 1,80 € : 1,80 €
-+
24
P/N (SKU): 1F30-022009
Part Name: AIR INLET PIPE
Effective: 2021-02-26
Alternative parts:
Price: 15,00 € : 15,00 €
-+
25
P/N (SKU): 1F30-022700
Part Name: CLAMP 75
Effective: 2021-02-26
Alternative parts:
Price: 3,60 € : 3,60 €
-+
26
P/N (SKU): 0010-060010
Part Name: WASHER 10
Effective: 2021-02-26
Alternative parts:
Specification: 10
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0800-012400
Part Name: OIL PRESSURE SWITCH
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
28
P/N (SKU): 1F30-022015
Part Name: VACUUM HOSE JOINT
Effective: 2021-02-26
Alternative parts:
Price: 3,60 € : 3,60 €
-+
29
P/N (SKU): 0700-021200
Part Name: CYLINDER HEAD COVER BOLT SEAL RING
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
30
P/N (SKU): 0DM0-022008
Part Name: CYLINDER HEAD DAMPING BOLT
Effective: 2021-02-26
Alternative parts: 0DM0-022008-00001
Price: 3,00 € : 3,00 €
31
P/N (SKU): 1F30-022011
Part Name: CYLINDER BOLT M11x1.5x145
Effective: 2021-02-26
Alternative parts:
Specification: M11x1.5x145
Price: 3,60 € : 3,60 €
-+
32
P/N (SKU): 30212-060810
Part Name: NUT
Effective: 2021-02-26
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): 0060-030004-0030
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 6x10.4x1.6
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 0060-030003-0030
Part Name: INNER HEX BOLT
Effective: 2021-02-26
Alternative parts: 0060-030003-00001
Specification: M6x30
Price: 1,50 € : 1,50 €
35
P/N (SKU): 1F30-022202-10000
Part Name: INNER HEX SCREW
Effective: 2021-02-26
Alternative parts:
Specification: M8x30
Price: 0,91 € : 0,91 €
-+
36
P/N (SKU): 0010-023010-0010
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 0JWV-011107-3000
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
