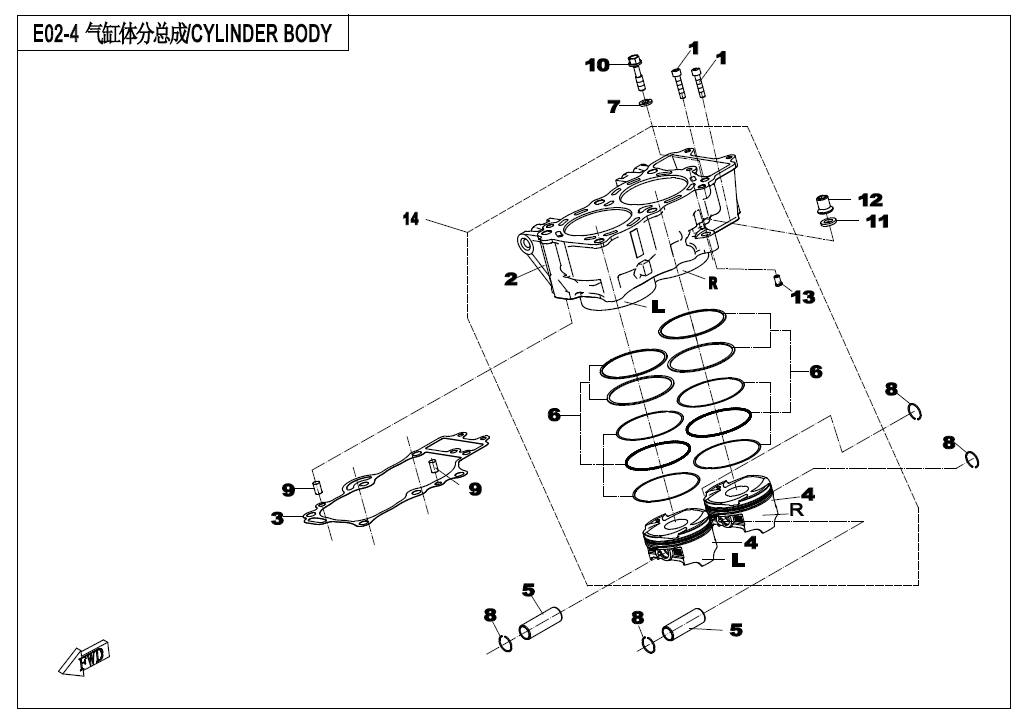

CYLINDER BODY - E02-4-A

CYLINDER BODY - E02-4-A

No.

01
P/N (SKU): 0060-030003-0030
Part Name: INNER HEX BOLT
Effective: 2021-02-26
Alternative parts: 0060-030003-00001
Specification: M6x30
Price: 1,50 € : 1,50 €
02
P/N (SKU): 0700-023001-3B200
Part Name: CYLINDER BODY
Effective: 2021-02-26
Alternative parts: 0700-023001-4B200/0700-023001-4B204
Specification: MATTE BLACK
Price: 393,00 € : 393,00 €
02
P/N (SKU): 0700-023001-4B200
Part Name: CYLINDER BODY
Effective: 2021-02-26
Alternative parts: 0700-023001-4B201/0700-023001-4B203/0700-023001-4B204
Specification: MATTE BLACK
Price: 207,00 € : 207,00 €
03
P/N (SKU): 0700-023002-0001
Part Name: CYLINDER BODY GASKET
Effective: 2021-02-26
Alternative parts:
Price: 5,00 € : 5,00 €
-+
04
P/N (SKU): 0700-040007-00030
Part Name: PISTON
Effective: 2021-02-26
Alternative parts: 0700-040007-00031
Specification: MARK 3
Price: 28,00 € : 28,00 €
04
P/N (SKU): 0700-040007-00020
Part Name: PISTON
Effective: 2021-02-26
Alternative parts: 0700-040007-20020
Specification: MARK 2
Price: 27,00 € : 27,00 €
04
P/N (SKU): 0700-040007-00010
Part Name: PISTON
Effective: 2021-02-26
Alternative parts: 0700-040007-20010
Specification: MARK 1
Price: 27,00 € : 27,00 €
05
P/N (SKU): 0700-040008
Part Name: PISTON PIN
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
06
P/N (SKU): 0700-0400A0
Part Name: PISTON RING ASSY
Effective: 2021-02-26
Alternative parts:
Price: 30,00 € : 30,00 €
-+
07
P/N (SKU): 0700-023004
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 8.5×15.5×2
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 0700-040009
Part Name: CIRCLIP, PISTON PIN
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0700-022018
Part Name: SOLID PIN 8x14
Effective: 2021-02-26
Alternative parts:
Specification: 8x14
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0700-023003-00001
Part Name: BOLT M8x43
Effective: 2021-02-26
Alternative parts: 0700-023003-00002
Specification: M8x43
Price: 1,50 € : 1,50 €
11
P/N (SKU): 0700-022016
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 10.5x19x2.3
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0700-011111-00001
Part Name: NUT M10x1.25
Effective: 2021-02-26
Alternative parts: 0700-011111-00002
Specification: M10x1.25
Price: 3,00 € : 3,00 €
13
P/N (SKU): 0700-023005
Part Name: RESTRICTION PLUG
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 0700-0230A0
Part Name: PISTON, CYLINDER BODY
Effective: 2021-02-26
Alternative parts:
Price: 353,00 € : 353,00 €
-+
