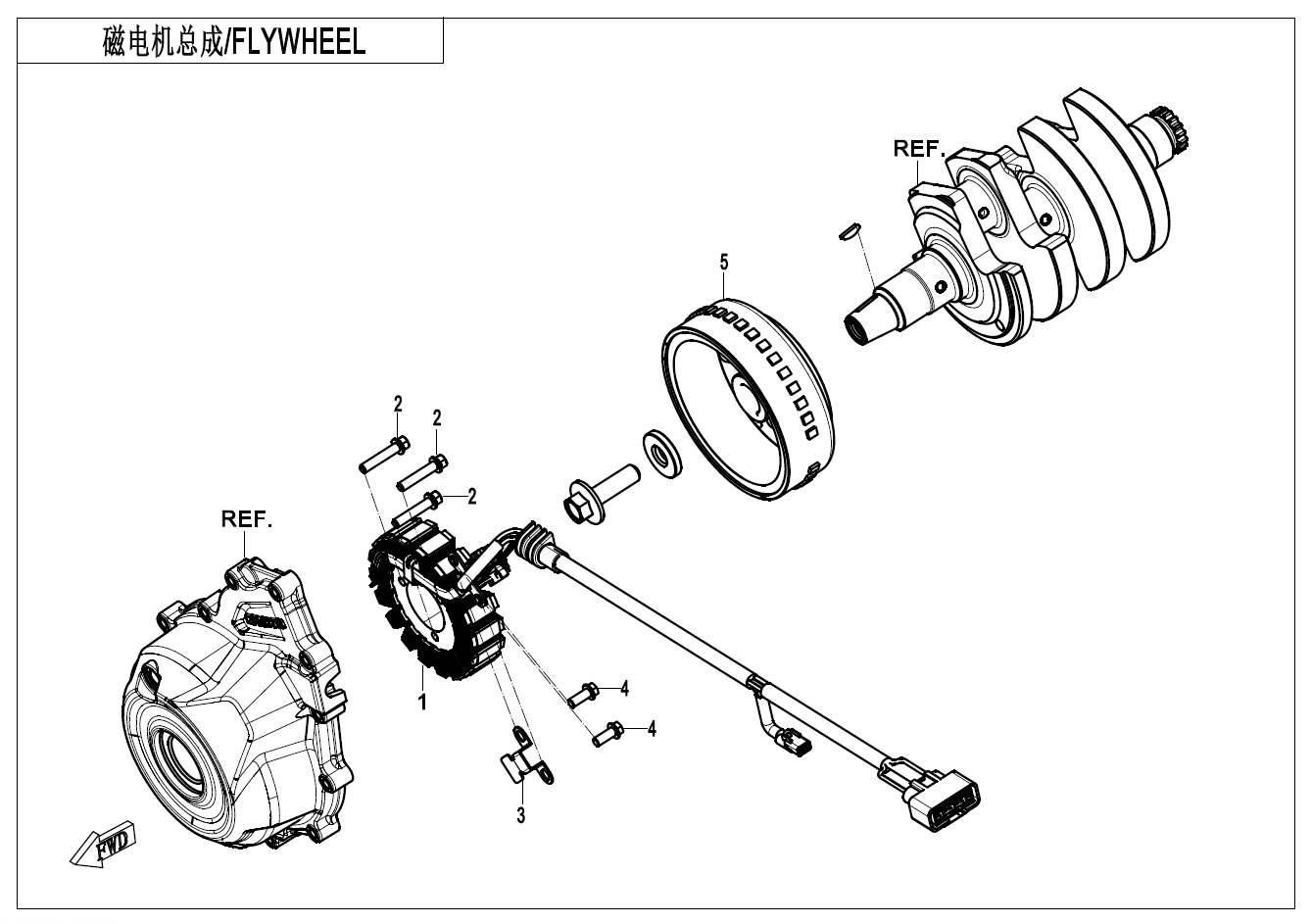

MAGNETO - E03

MAGNETO - E03

No.

1
P/N (SKU): 0SQV-032000-1000
Part Name: MAGNETO STATOR ASSY
Effective: 2023-11-20
Remarks: GUHE
Alternative parts: 0SQV-032000-1001
Price: 145,00 € : 145,00 €
1
P/N (SKU): 0SQV-032000-1001-10
Part Name: MAGNETO STATOR ASSY
Effective: 2023-11-21
Remarks: KAIDI
Price: 142,00 € : 142,00 €
-+
2
P/N (SKU): 0180-030001-00001
Part Name: BOLT
Effective: 2023-11-20
Specification: M6x30
Price: 1,50 € : 1,50 €
-+
3
P/N (SKU): 0SQV-032100-1000
Part Name: STATER WIRE PRESS PLATE
Effective: 2023-11-20
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 0010-030002-00001
Part Name: BOLT
Effective: 2023-11-20
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 0SQV-031000-1001
Part Name: MAGNETO ROTOR ASSY
Effective: 2023-11-20
Price: 76,00 € : 76,00 €
-+
