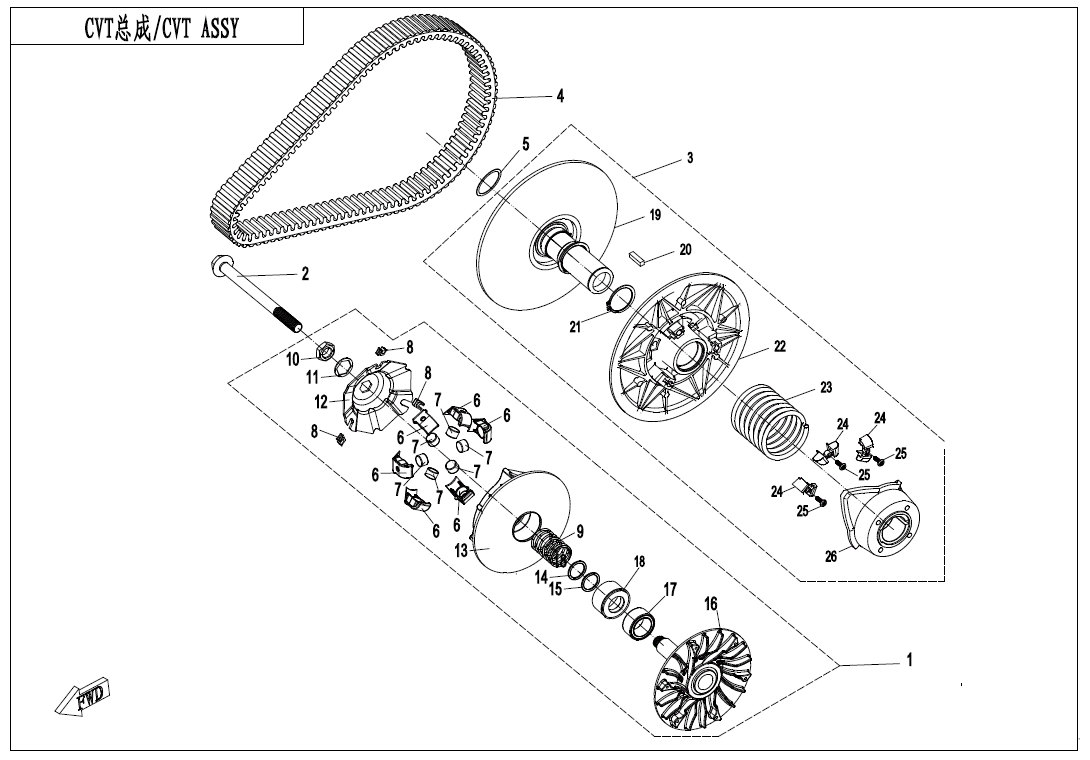

CVT ASSY - E05 | 2019, ENGINE, 191R-X550 | CFMOTO OEM

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0GRB-051000-00030

Part Name: DRIVE PULLEY

Alternative parts: 0GRB-051000-00031

Specification: WITH ENGINE BRAKE

Price: 817,00 € : 817,00 €

02

P/N (SKU): 0JY0-050001

Part Name: BOLT, DRIVE PULLEY

Alternative parts: 0JY0-050001-00001

Price: 4,00 € : 4,00 €

03

P/N (SKU): 0GR0-052000

Part Name: DRIVEN PULLEY

Alternative parts:

Price: 402,00 € : 402,00 €

04

P/N (SKU): 0180-055000-0004

Part Name: DRIVE BELT

Alternative parts:

Specification: MITSUBOSHI

Price: 206,00 € : 206,00 €

04

P/N (SKU): 0180-055000-0003

Part Name: DRIVE BELT

Alternative parts:

Specification: BANDO

Price: 221,00 € : 221,00 €

05

P/N (SKU): 0GR0-050001-00001

Part Name: ADJUSTING WASHER

Alternative parts:

Price: 1,50 € : 1,50 €

05

P/N (SKU): 0GR0-050001

Part Name: ADJUSTING WASHER

Alternative parts: 0GR0-050001-00001

Specification: CVtech

Price: 2,00 € : 2,00 €

06

P/N (SKU): 0GR0-051005

Part Name: NYLON PROTECTOR, WEIGHT SLIDER

Alternative parts:

Specification: CVtech

Price: 20,00 € : 20,00 €

07

P/N (SKU): 0GR0-051004-20000

Part Name: WEIGHT SLIDER

Alternative parts:

Specification: CVtech

Price: 9,00 € : 9,00 €

08

P/N (SKU): 0GR0-051006

Part Name: NYLON SLIDER

Alternative parts:

Price: 19,00 € : 19,00 €

09

P/N (SKU): 0GR0-051003-20000

Part Name: SPRING, DRIVE PULLEY

Alternative parts:

Specification: ORDINARY

Price: 36,00 € : 36,00 €

10

P/N (SKU): 0GR0-051008-00010

Part Name: NUT, DRIVE PULLEY

Remarks: ANTI-CLOCKWISE

Alternative parts:

Specification: LEFT-HAND THREAD

Price: 17,00 € : 17,00 €

11

P/N (SKU): 0GR0-051007

Part Name: HEXAGONAL BORE WASHER

Alternative parts:

Price: 23,00 € : 23,00 €

12

P/N (SKU): 0GR0-051002

Part Name: RAMP PLATE

Alternative parts:

Price: 92,00 € : 92,00 €

13

P/N (SKU): 0GR0-051100

Part Name: PRIMARY LOOSE PULLEY ASSY

Alternative parts:

Price: 310,00 € : 310,00 €

14

P/N (SKU): 0GR0-051011

Part Name: STEEL WASHER

Alternative parts:

Specification: CVtech

Price: 15,00 € : 15,00 €

15

P/N (SKU): 0GR0-051009

Part Name: NYLON WASHER

Alternative parts:

Price: 14,00 € : 14,00 €

16

P/N (SKU): 0GR0-051200-10010

Part Name: PRIMARY TIGHT PULLEY ASSY

Remarks: WITH ANTI-CLOCKWISE NUT

Alternative parts:

Specification: WITH ANTI-CLOCKWISE ROTATION SCREW THREAD

Price: 352,00 € : 352,00 €

17

P/N (SKU): 0GR0-051300

Part Name: OVERRIDING CLUTCH

Alternative parts:

Price: 182,00 € : 182,00 €

18

P/N (SKU): 0GR0-051001

Part Name: SPRING SEAT

Alternative parts:

Specification: CVtech

Price: 60,00 € : 60,00 €

19

P/N (SKU): 0GR0-052100

Part Name: DRIVEN FIXED PULLEY ASSY

Alternative parts:

Specification: CVtech

Price: 384,00 € : 384,00 €

20

P/N (SKU): 0GR0-052003

Part Name: TAPER KEY

Alternative parts:

Specification: CVtech

Price: 4,00 € : 4,00 €

21

P/N (SKU): 0GR0-052004

Part Name: CIRCLIP

Alternative parts:

Specification: CVtech

Price: 15,00 € : 15,00 €

22

P/N (SKU): 0GR0-052200

Part Name: DRIVEN SLIDING PULLEY ASSY

Alternative parts:

Price: 240,00 € : 240,00 €

23

P/N (SKU): 0GR0-052001

Part Name: SPRING, DRIVEN PULLEY

Alternative parts:

Specification: CVtech

Price: 80,00 € : 80,00 €

24

P/N (SKU): 0GR0-052005

Part Name: NYLON BLOCK

Alternative parts:

Specification: CVtech

Price: 15,00 € : 15,00 €

25

P/N (SKU): 0GR0-052006

Part Name: SCREW

Alternative parts:

Specification: CVtech

Price: 4,50 € : 4,50 €

26

P/N (SKU): 0GR0-052002

Part Name: CAM PLATE

Alternative parts:

Specification: CVtech

Price: 97,00 € : 97,00 €
