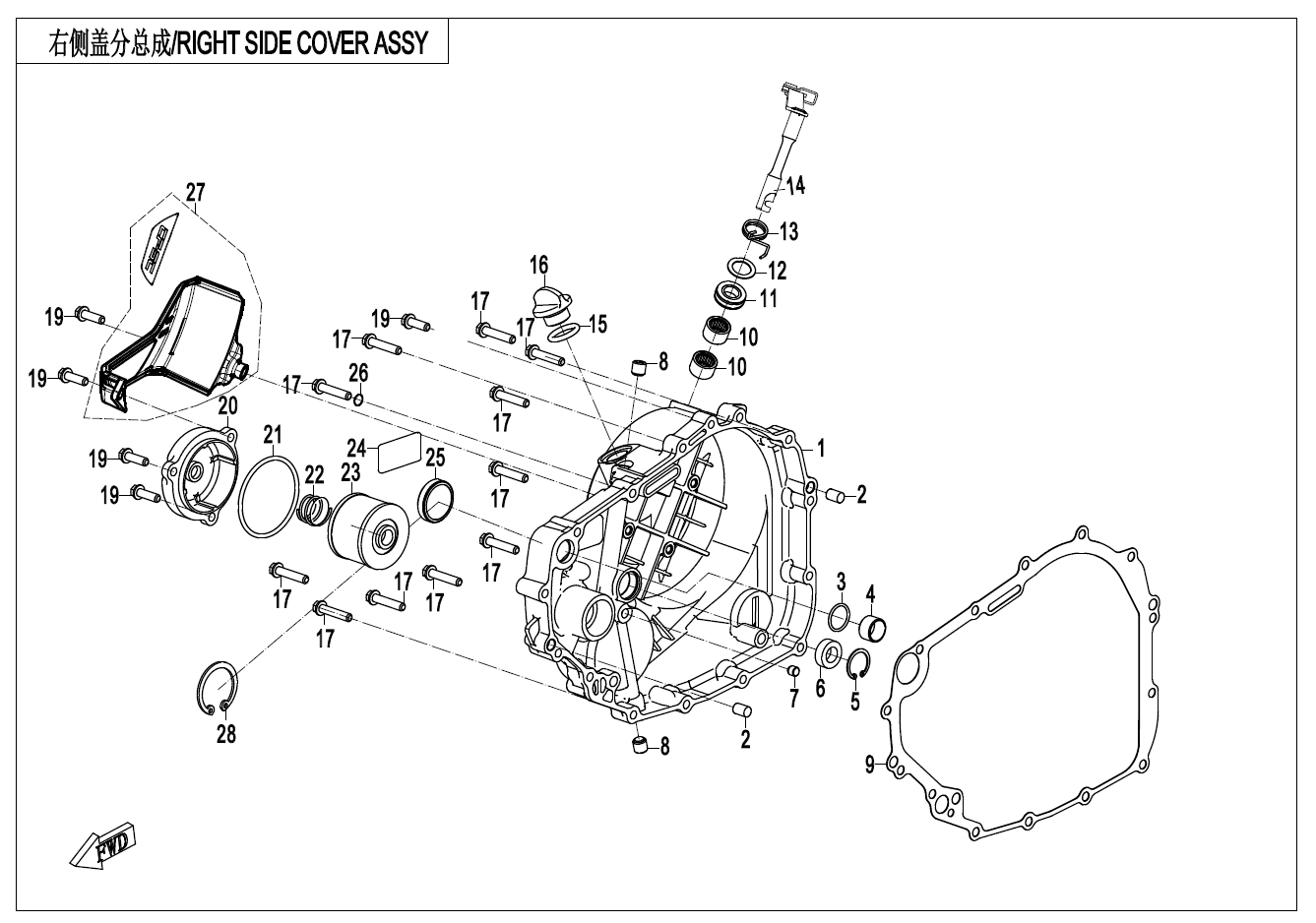

RIGHT SIDE COVER(SLIPPING CLUTCH ) - E01-3-A-V2

RIGHT SIDE COVER(SLIPPING CLUTCH ) - E01-3-A-V2

No.

01
P/N (SKU): 0DMB-013005-0HA01
Part Name: RH SIDE COVER
Effective: 2021-02-26
Alternative parts: 0DMB-013005-1HA00
Specification: SILVER GREY@TREATMENT POWDER
Price: 72,00 € : 72,00 €
01
P/N (SKU): 0DMB-013005-0H700
Part Name: RH SIDE COVER
Effective: 2021-02-26
Alternative parts:
Price: 65,00 € : 65,00 €
-+
02
P/N (SKU): 30410-00800
Part Name: ROLLER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30502-018000F
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
04
P/N (SKU): 0DM0-013002
Part Name: WATER PIPE
Effective: 2021-02-26
Alternative parts:
Price: 2,50 € : 2,50 €
-+
05
P/N (SKU): 30800-02205
Part Name: CIRCLIP FOR HOLE
Effective: 2021-02-26
Alternative parts:
Specification: 22
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 0DM0-013007
Part Name: OIL SEAL,CRANKCASE
Effective: 2021-02-26
Alternative parts:
Price: 5,00 € : 5,00 €
-+
07
P/N (SKU): 0A70-013004
Part Name: PLUG
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
08
P/N (SKU): 01A0-012010-00001
Part Name: SCREW
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 0DM0-013001-00001
Part Name: RH SIDE COVER GASKET
Effective: 2021-02-26
Alternative parts:
Price: 16,00 € : 16,00 €
-+
10
P/N (SKU): 30403-01200
Part Name: BEARING
Effective: 2021-02-26
Alternative parts:
Specification: 12×16×10
Price: 16,00 € : 16,00 €
-+
11
P/N (SKU): 0010-080009
Part Name: OIL SEAL
Effective: 2021-02-26
Alternative parts:
Specification: 12x20x5
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0700-013007-10000
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 12.5x18.5x0.6
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0700-013006-10000
Part Name: CLUTCH CONTROL LEVER RETURN SPRING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0DMB-013300-00001
Part Name: CLUTCH CONTROL SHAFT ASSY
Effective: 2021-02-26
Alternative parts: 0DMB-013300-00002/0DMB-013300-00003
Price: 13,00 € : 13,00 €
14
P/N (SKU): 0DMB-013300-00002
Part Name: CLUTCH CONTROL SHAFT ASSY
Effective: 2021-02-26
Alternative parts: 0DMB-013300-00003
Price: 13,00 € : 13,00 €
15
P/N (SKU): 0110-013030
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 18x3.55
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0700-013008
Part Name: OIL FILLING PLUG
Effective: 2021-02-26
Alternative parts:
Price: 2,00 € : 2,00 €
-+
17
P/N (SKU): 0010-060012-0010
Part Name: BOLT M6x30
Effective: 2021-02-26
Alternative parts:
Specification: M6x30
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 0010-023010-0010
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 0JWV-011107-3000
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 0DM0-013003-0HA01
Part Name: FILTER COVER
Effective: 2021-02-26
Alternative parts:
Specification: SILVER GREY
Price: 18,00 € : 18,00 €
-+
20
P/N (SKU): 0DM0-013003-0B201
Part Name: OIL FILTER COVER
Effective: 2021-02-26
Alternative parts:
Specification: MATTE BLACK
Price: 6,50 € : 6,50 €
-+
21
P/N (SKU): 30502-057000F
Part Name: O-RING 57x3
Effective: 2021-02-26
Alternative parts:
Specification: 57x3
Price: 4,00 € : 4,00 €
-+
22
P/N (SKU): 0DM0-013009
Part Name: FILTER ELEMENT SPRING
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 0DM0-013200
Part Name: OIL FILTER ASSY, ENGINE
Effective: 2021-02-26
Alternative parts:
Price: 6,50 € : 6,50 €
-+
24
P/N (SKU): 0DM0-013008
Part Name: OIL FILLING INSTRUCTION LABEL
Effective: 2021-02-26
Remarks: CHINESE
Alternative parts:
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0DM0-013008-10000
Part Name: OIL FILLING INSTRUCTION LABEL
Effective: 2021-02-26
Remarks: ENGLISH
Alternative parts:
Specification: ENGLISH
Price: 2,00 € : 2,00 €
-+
25
P/N (SKU): 0700-013100-00001
Part Name: VIEWER, OIL LEVEL
Effective: 2021-02-26
Alternative parts:
Price: 5,50 € : 5,50 €
-+
26
P/N (SKU): 0700-012201
Part Name: O-RING
Effective: 2021-02-26
Alternative parts:
Specification: 5x2
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 0DMB-019000
Part Name: DECO COVER
Effective: 2021-02-26
Alternative parts:
Price: 24,00 € : 24,00 €
-+
28
P/N (SKU): 0HU0-013009
Part Name: RETAINER
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
