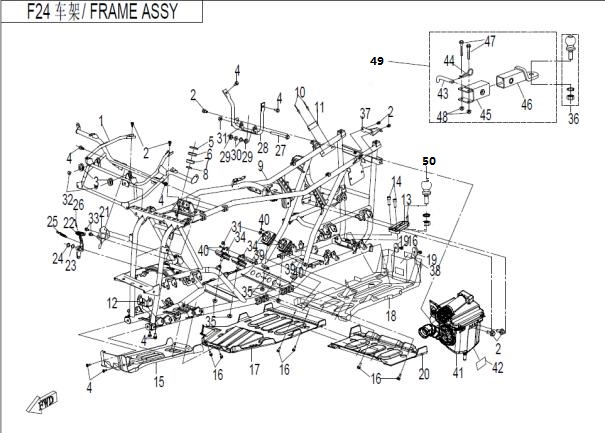

FRAME - F24（2） | 2015, ATV, CF500-5C

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 9050-030040-3000

Part Name: BRACKET, RADIATOR

Alternative parts:

Price: 41,00 € : 41,00 €

P/N (SKU): 30006-060012840

Part Name: BOLT M6x12

Alternative parts: 30006-060012810

Specification: M6x12

Price: 0,55 € : 0,55 €

P/N (SKU): 9010-030047

Part Name: RUBBER CUSHION WASHER

Alternative parts:

Price: 1,05 € : 1,05 €

P/N (SKU): 30006-080014840

Part Name: BOLT

Alternative parts: 30006-080014810

Specification: M8×14

Price: 0,55 € : 0,55 €

P/N (SKU): 30500-025801N

Part Name: OIL SEAL

Alternative parts:

Specification: FB25x44x7

Price: 1,50 € : 1,50 €

P/N (SKU): 9010-030003

Part Name: BEARING RETAINER

Alternative parts:

Price: 2,20 € : 2,20 €

P/N (SKU): 30400-01780

Part Name: BEARING

Alternative parts:

Specification: 6203-2RZ

Price: 3,30 € : 3,30 €

P/N (SKU): 30500-025800N

Part Name: OIL SEAL

Alternative parts:

Specification: FB25x36x8

Price: 1,25 € : 1,25 €

P/N (SKU): 905C-030100-2B000

Part Name: FRAME ASSY

Remarks: EURO

Alternative parts:

Specification: BLACK

Price: 568,60 € : 568,60 €

P/N (SKU): 30902-0400820

Part Name: BLIND RIVET

Alternative parts: 30902-0401320

Specification: 4x8

Price: 0,55 € : 0,55 €

P/N (SKU): 905A-190006

Part Name: VIN PLATE

Alternative parts:

Specification: EURO

Price: 0,95 € : 0,95 €

P/N (SKU): 9010-030001

Part Name: BRACKET, FRONT GEAR CASE

Alternative parts: 9010-037400

Price: 4,40 € : 4,40 €

P/N (SKU): 9010-030002

Part Name: TOWING BRACKET

Remarks: OPTIONAL ；is replaced by 4020-030002

Alternative parts:

Price: 12,50 € : 12,50 €

P/N (SKU): 30102-102040840

Part Name: INNER HEX SCREW

Remarks: M10*1.25*40

Alternative parts: 30102-102040810

Price: 0,95 € : 0,95 €

P/N (SKU): 9010-040017-A000

Part Name: FRONT PANEL, ENGINE

Alternative parts:

Price: 28,20 € : 28,20 €

P/N (SKU): 30006-060016840

Part Name: BOLT

Alternative parts: 30006-060016810

Specification: M6x16

Price: 0,55 € : 0,55 €

P/N (SKU): 9010-040016-1000

Part Name: MIDDLE PANEL, ENGINE

Alternative parts:

Price: 32,60 € : 32,60 €

P/N (SKU): 9010-040015

Part Name: REAR PANEL, ENGINE

Alternative parts:

Price: 30,40 € : 30,40 €

P/N (SKU): 30301-060442

Part Name: WASHER

Remarks: φ10

Alternative parts: 30301-060412

Specification: 6

Price: 0,55 € : 0,55 €

P/N (SKU): 901A-040001

Part Name: PANEL, DOUBLE SEAT

Alternative parts:

Price: 12,10 € : 12,10 €

P/N (SKU): 9010-030009

Part Name: PANEL, FRONT BRAKE MASTER CYLINDER

Alternative parts:

Price: 5,50 € : 5,50 €

P/N (SKU): 9010-080210

Part Name: BRAKE PEDAL

Alternative parts:

Price: 10,65 € : 10,65 €

P/N (SKU): 30304-140440

Part Name: WASHER

Alternative parts: 30306-140112

Specification: 14

Price: 0,55 € : 0,55 €

P/N (SKU): 30801-01405

Part Name: CIRCLIPS FOR SHAFT14

Alternative parts:

Specification: 14

Price: 0,95 € : 0,95 €

P/N (SKU): 9010-080201

Part Name: RETURN SPRING, BRAKE PEDAL

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 9010-080203

Part Name: SPRING, BRAKE SWITCH

Remarks: is replaced by 9010-080203-1000

Alternative parts: 9010-080203-1000

Price: 0,55 € : 0,55 €

P/N (SKU): 9010-080203-1000

Part Name: SPRING, BRAKE SWITCH

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 30006-122130840

Part Name: BOLT M12x1.25x130

Alternative parts: 30006-122130810

Specification: M12x1.25x130

Price: 2,60 € : 2,60 €

P/N (SKU): 9010-037200-3000

Part Name: REAR BRACKET

Alternative parts:

Price: 12,50 € : 12,50 €

P/N (SKU): 9010-037205

Part Name: CUSHION, REAR BRACKET

Alternative parts:

Price: 1,65 € : 1,65 €

P/N (SKU): 9010-037210

Part Name: BUSHING, REAR SUSPENSION

Alternative parts:

Price: 3,30 € : 3,30 €

P/N (SKU): 30204-122840

Part Name: NUT

Alternative parts: 30204-122810

Specification: M12×1.25

Price: 0,95 € : 0,95 €

P/N (SKU): 8010-120006

Part Name: T-WASHER

Remarks: is replaced by 5020-031002

Alternative parts: 5020-031002

Price: 0,55 € : 0,55 €

P/N (SKU): 30006-060010840

Part Name: BOLT M6x10

Alternative parts:

Specification: M6x10

Price: 1,25 € : 1,25 €

P/N (SKU): 9010-000200

Part Name: DAMPER

Alternative parts: 401B-000200-10000

Price: 7,35 € : 7,35 €

P/N (SKU): 30204-102840

Part Name: NUT M10x1.25

Alternative parts: 30204-102110

Specification: M10x1.25

Price: 0,95 € : 0,95 €

P/N (SKU): 9010-205000-1000

Part Name: TOWING HITCHBALL ASSY

Alternative parts:

Specification: 50mm Certificated ball head

Price: 19,40 € : 19,40 €

P/N (SKU): 9010-204000

Part Name: TOWING HITCHBALL ASSY

Remarks: 1 7/8 inches

Alternative parts:

Specification: 1and 7/8"

Price: 22,40 € : 22,40 €

P/N (SKU): 9050-030140

Part Name: BRACKET, REAR DECO PLATE

Alternative parts:

Price: 3,30 € : 3,30 €

P/N (SKU): 9010-190012

Part Name: INSTRUCTION LABEL, TOWING LOAD

Remarks: OVERSEA

Alternative parts:

Price: 0,55 € : 0,55 €

P/N (SKU): 9010-190025

Part Name: INSTRUCTION LABEL, TOWING LOAD

Remarks: CHINESE

Alternative parts:

Specification: CHINESE

Price: 1,25 € : 1,25 €

P/N (SKU): 30006-122145840

Part Name: BOLT M12x1.25x145

Alternative parts: 30006-122145810

Specification: M12x1.25x145

Price: 2,95 € : 2,95 €

P/N (SKU): 30102-060012840

Part Name: INNER HEX SCREW M6x12

Alternative parts: 30102-060012810

Specification: M6x12

Price: 0,55 € : 0,55 €

P/N (SKU): 018B-110000

Part Name: AIR FILTER ASSY

Remarks: is replaced by 018B-110000-1000

Alternative parts: 018B-110000-1000

Price: 53,10 € : 53,10 €

P/N (SKU): 018B-110000-1000

Part Name: AIR FILTER ASSY

Alternative parts:

Price: 54,20 € : 54,20 €

P/N (SKU): 9010-190029

Part Name: HEAT INSULATOR, AIR FILTER

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): 9010-400103

Part Name: PIN SHAFT

Alternative parts:

Price: 4,10 € : 4,10 €

P/N (SKU): 9010-400102

Part Name: COTTER PIN, BRACKET

Alternative parts: 9010-400102-10000

Price: 2,05 € : 2,05 €

P/N (SKU): 9CR6-401100

Part Name: TOWING BRACKET, 2"

Alternative parts: 9CR6-401100-0B001

Specification: DOT

Price: 25,70 € : 25,70 €

P/N (SKU): 9CR6-401200

Part Name: TOWING TUBE,2"

Alternative parts: 9CR6-401200-0B001

Specification: DOT

Price: 62,00 € : 62,00 €

P/N (SKU): 30006-102070810

Part Name: BOLT M10x1.25x70

Alternative parts:

Specification: M10x1.25x70

Price: 0,95 € : 0,95 €

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Alternative parts:

Specification: M10x1.25

Price: 0,55 € : 0,55 €

P/N (SKU): 9CR6-401000

Part Name: TOWING BRACKET ASSY

Remarks: OPTIONAL

Alternative parts:

Specification: SEPARATED TYPE

Price: 100,40 € : 100,40 €

P/N (SKU): 9010-205000

Part Name: TOWING HITCHBALL ASSY

Remarks: 2 INCHES, OVERSEAS

Alternative parts:

Specification: 2"

Price: 20,50 € : 20,50 €
