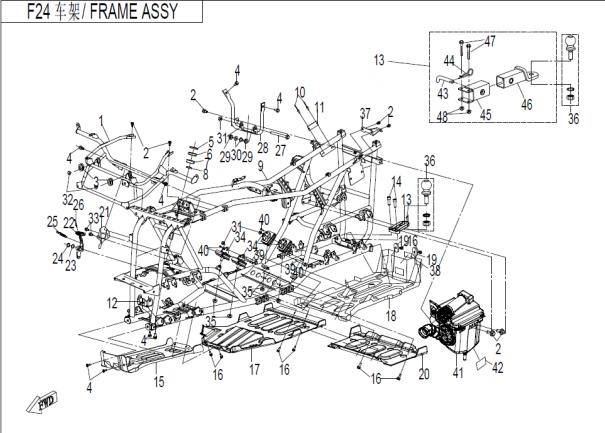

FRAME - F24（2）

FRAME - F24（2）

No.

01
P/N (SKU): 9050-030040-3000
Part Name: BRACKET, RADIATOR
Alternative parts:
Price: 42,00 € : 42,00 €
-+
02
P/N (SKU): 30006-060012840
Part Name: BOLT M6x12
Alternative parts: 30006-060012810
Specification: M6x12
Price: 1,50 € : 1,50 €
03
P/N (SKU): 9010-030047
Part Name: RUBBER CUSHION WASHER
Alternative parts:
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 30006-080014840
Part Name: BOLT
Alternative parts: 30006-080014810
Specification: M8×14
Price: 1,50 € : 1,50 €
05
P/N (SKU): 30500-025801N
Part Name: OIL SEAL
Alternative parts:
Specification: FB25x44x7
Price: 3,00 € : 3,00 €
-+
06
P/N (SKU): 9010-030003
Part Name: BEARING RETAINER
Alternative parts:
Price: 3,50 € : 3,50 €
-+
07
P/N (SKU): 30400-01780
Part Name: BEARING
Alternative parts:
Specification: 6203-2RZ
Price: 4,00 € : 4,00 €
-+
08
P/N (SKU): 30500-025800N
Part Name: OIL SEAL
Alternative parts:
Specification: FB25x36x8
Price: 2,00 € : 2,00 €
-+
09
P/N (SKU): 9050-030100-30000
Part Name: FRAME ASSY.
Remarks: EURO
Alternative parts: 9050-030100-50000
Price: 508,00 € : 508,00 €
10
P/N (SKU): 30902-0400820
Part Name: BLIND RIVET
Alternative parts: 30902-0401320
Specification: 4x8
Price: 1,50 € : 1,50 €
11
P/N (SKU): 9050-190014
Part Name: VIN PLATE
Alternative parts:
Specification: EURO
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 9010-030001
Part Name: BRACKET, FRONT GEAR CASE
Alternative parts: 9010-037400
Price: 7,00 € : 7,00 €
13
P/N (SKU): 9CR6-401000
Part Name: TOWING BRACKET ASSY
Remarks: OPTIONAL
Alternative parts:
Specification: SEPARATED TYPE
Price: 103,00 € : 103,00 €
-+
13
P/N (SKU): 9010-030002
Part Name: TOWING BRACKET
Remarks: OPTIONAL ；is replaced by 4020-030002
Alternative parts:
Price: 13,00 € : 13,00 €
-+
14
P/N (SKU): 30102-102040840
Part Name: INNER HEX SCREW
Remarks: M10*1.25*40
Alternative parts: 30102-102040810
Price: 2,00 € : 2,00 €
15
P/N (SKU): 9010-040017-A000
Part Name: FRONT PANEL, ENGINE
Alternative parts:
Price: 33,00 € : 33,00 €
-+
16
P/N (SKU): 30006-060016840
Part Name: BOLT
Alternative parts: 30006-060016810
Specification: M6x16
Price: 1,50 € : 1,50 €
17
P/N (SKU): 9010-040016-1000
Part Name: MIDDLE PANEL, ENGINE
Alternative parts:
Price: 34,00 € : 34,00 €
-+
18
P/N (SKU): 9010-040015
Part Name: REAR PANEL, ENGINE
Alternative parts:
Price: 31,00 € : 31,00 €
-+
19
P/N (SKU): 30301-060442
Part Name: WASHER
Remarks: φ10
Alternative parts: 30301-060412
Specification: 6
Price: 1,50 € : 1,50 €
21
P/N (SKU): 9010-030009
Part Name: PANEL, FRONT BRAKE MASTER CYLINDER
Alternative parts:
Price: 6,00 € : 6,00 €
-+
22
P/N (SKU): 9010-080210
Part Name: BRAKE PEDAL
Alternative parts:
Price: 14,00 € : 14,00 €
-+
23
P/N (SKU): 30304-140440
Part Name: WASHER
Alternative parts: 30306-140112
Specification: 14
Price: 1,50 € : 1,50 €
24
P/N (SKU): 30801-01405
Part Name: CIRCLIPS FOR SHAFT14
Alternative parts:
Specification: 14
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 9010-080201
Part Name: RETURN SPRING, BRAKE PEDAL
Alternative parts:
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 9010-080203
Part Name: SPRING, BRAKE SWITCH
Remarks: is replaced by 9010-080203-1000
Alternative parts: 9010-080203-1000
Price: 1,50 € : 1,50 €
26
P/N (SKU): 9010-080203-1000
Part Name: SPRING, BRAKE SWITCH
Alternative parts:
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 30006-122130840
Part Name: BOLT M12x1.25x130
Alternative parts: 30006-122130810
Specification: M12x1.25x130
Price: 3,50 € : 3,50 €
28
P/N (SKU): 9010-037200-3000
Part Name: REAR BRACKET
Alternative parts:
Price: 23,00 € : 23,00 €
-+
29
P/N (SKU): 9010-037205
Part Name: CUSHION, REAR BRACKET
Alternative parts:
Price: 2,00 € : 2,00 €
-+
30
P/N (SKU): 9010-037210
Part Name: BUSHING, REAR SUSPENSION
Alternative parts:
Price: 3,50 € : 3,50 €
-+
31
P/N (SKU): 30204-122840
Part Name: NUT
Alternative parts: 30204-122810
Specification: M12×1.25
Price: 2,00 € : 2,00 €
32
P/N (SKU): 8010-120006
Part Name: T-WASHER
Remarks: is replaced by 5020-031002
Alternative parts: 5020-031002
Price: 1,50 € : 1,50 €
33
P/N (SKU): 30006-060010840
Part Name: BOLT M6x10
Alternative parts:
Specification: M6x10
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 9010-000200
Part Name: DAMPER
Alternative parts: 401B-000200-10000
Price: 8,50 € : 8,50 €
35
P/N (SKU): 30204-102840
Part Name: NUT M10x1.25
Alternative parts: 30204-102110
Specification: M10x1.25
Price: 1,50 € : 1,50 €
36
P/N (SKU): 9010-205000-1000
Part Name: TOWING HITCHBALL ASSY
Alternative parts:
Specification: 50mm Certificated ball head
Price: 20,00 € : 20,00 €
-+
36
P/N (SKU): 9010-205000
Part Name: TOWING HITCHBALL ASSY
Remarks: 2 INCHES, OVERSEAS
Alternative parts:
Specification: 2"
Price: 21,00 € : 21,00 €
-+
36
P/N (SKU): 9010-204000
Part Name: TOWING HITCHBALL ASSY
Remarks: 1 7/8 inches
Alternative parts:
Specification: 1and 7/8"
Price: 23,00 € : 23,00 €
-+
37
P/N (SKU): 9050-030140
Part Name: BRACKET, REAR DECO PLATE
Alternative parts:
Price: 3,50 € : 3,50 €
-+
38
P/N (SKU): 9010-190012
Part Name: INSTRUCTION LABEL, TOWING LOAD
Remarks: OVERSEA
Alternative parts:
Price: 1,50 € : 1,50 €
-+
38
P/N (SKU): 9010-190025
Part Name: INSTRUCTION LABEL, TOWING LOAD
Remarks: CHINESE
Alternative parts:
Specification: CHINESE
Price: 1,50 € : 1,50 €
-+
39
P/N (SKU): 30006-122145840
Part Name: BOLT M12x1.25x145
Alternative parts: 30006-122145810
Specification: M12x1.25x145
Price: 4,00 € : 4,00 €
40
P/N (SKU): 30102-060012840
Part Name: INNER HEX SCREW M6x12
Alternative parts: 30102-060012810
Specification: M6x12
Price: 1,50 € : 1,50 €
41
P/N (SKU): 0180-110000-1000
Part Name: AIR FILTER ASSY
Alternative parts:
Price: 65,00 € : 65,00 €
-+
41
P/N (SKU): 0180-110000
Part Name: AIR FILTER ASSY
Remarks: is replaced by 0180-110000-1000
Alternative parts: 0180-110000-1000
Price: 54,00 € : 54,00 €
42
P/N (SKU): 9010-190029
Part Name: HEAT INSULATOR, AIR FILTER
Alternative parts:
Price: 2,00 € : 2,00 €
-+
43
P/N (SKU): 9010-400103
Part Name: PIN SHAFT
Alternative parts:
Price: 4,50 € : 4,50 €
-+
44
P/N (SKU): 9010-400102
Part Name: COTTER PIN, BRACKET
Alternative parts: 9010-400102-10000
Price: 2,50 € : 2,50 €
45
P/N (SKU): 9CR6-401100
Part Name: TOWING BRACKET, 2"
Alternative parts: 9CR6-401100-0B001
Specification: DOT
Price: 27,00 € : 27,00 €
46
P/N (SKU): 9CR6-401200
Part Name: TOWING TUBE,2"
Alternative parts: 9CR6-401200-0B001
Specification: DOT
Price: 83,00 € : 83,00 €
47
P/N (SKU): 30006-102070810
Part Name: BOLT M10x1.25x70
Alternative parts:
Specification: M10x1.25x70
Price: 1,50 € : 1,50 €
-+
48
P/N (SKU): 30204-102810
Part Name: NUT M10x1.25
Alternative parts:
Specification: M10x1.25
Price: 1,50 € : 1,50 €
-+
