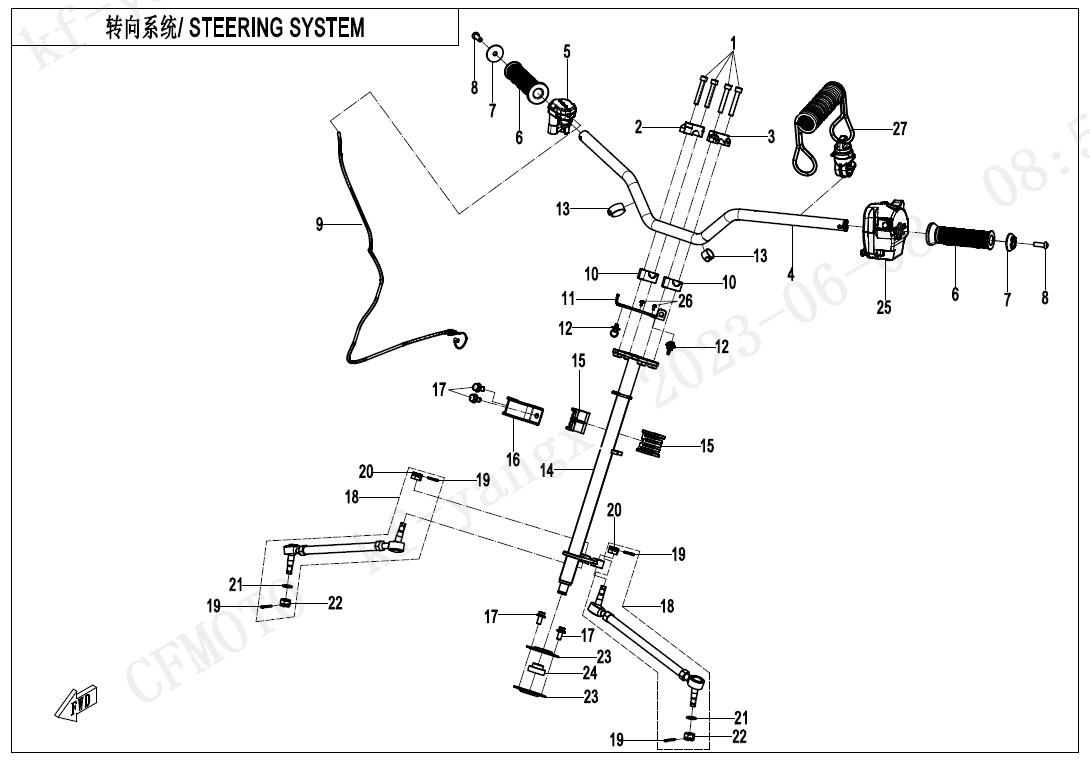

STEERING SYSTERM - F10-V2

STEERING SYSTERM - F10-V2

No.

1
P/N (SKU): 30102-080050810
Part Name: INNER HEX SCREW
Effective: 2023-11-28
Alternative parts: 30102-080050840
Specification: M8x50@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
2
P/N (SKU): 9RHV-100003-1001
Part Name: HANDLEBAR BLOCK 3
Effective: 2023-11-28
Alternative parts:
Price: 4,50 € : 4,50 €
-+
3
P/N (SKU): 9RHV-100002-1001
Part Name: HANDLEBAR BLOCK 2
Effective: 2023-11-28
Alternative parts:
Price: 4,50 € : 4,50 €
-+
4
P/N (SKU): 9RHV-101100-1000
Part Name: HANDLEBAR
Effective: 2023-11-28
Alternative parts:
Price: 33,00 € : 33,00 €
-+
5
P/N (SKU): 9RHV-080110-1001-0BP00
Part Name: THROTTLE LEVER
Effective: 2023-11-28
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 18,00 € : 18,00 €
-+
6
P/N (SKU): 9DQV-100005-3000
Part Name: RUBBER SLEEVE, HAND GRIP
Effective: 2023-11-28
Alternative parts:
Price: 7,00 € : 7,00 €
-+
7
P/N (SKU): 9DQV-100003-3000
Part Name: HANDLEBAR END COVER
Effective: 2023-11-28
Alternative parts:
Price: 3,50 € : 3,50 €
-+
8
P/N (SKU): 30121-080020870
Part Name: SCREW
Effective: 2023-11-28
Alternative parts: 30006-080020870
Specification: M8x20@BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
9
P/N (SKU): 9RHV-105000-3000
Part Name: THROTTLE CABLE
Effective: 2023-11-28
Alternative parts:
Price: 6,50 € : 6,50 €
-+
10
P/N (SKU): 9RHV-100001-1001
Part Name: HANDLEBAR BLOCK 1
Effective: 2023-11-28
Alternative parts:
Price: 4,50 € : 4,50 €
-+
11
P/N (SKU): 9RHV-030051-1000
Part Name: DASHBOARD GUARD BRACKET
Effective: 2023-11-28
Alternative parts:
Price: 4,50 € : 4,50 €
-+
12
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2023-11-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 6KJ0-100002
Part Name: CLUTCH PULL BINDING
Effective: 2023-11-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9RHV-102100-1201
Part Name: STEERING SHAFT ASSY
Effective: 2023-11-28
Alternative parts: 9RHV-102100-1202
Price: 32,40 € : 32,40 €
14
P/N (SKU): 9RHV-102100-1202
Part Name: STEERING STEM ASSY
Effective: 2024-01-09
Alternative parts: 9RHV-102100-1203
Price: 47,19 € : 47,19 €
15
P/N (SKU): 5BYA-060003
Part Name: SEAT, SWAY BAR
Effective: 2023-11-28
Alternative parts:
Price: 6,00 € : 6,00 €
-+
16
P/N (SKU): 9RHV-100510-1000
Part Name: STEERING COLUMN PRESS COVER
Effective: 2023-11-28
Alternative parts:
Price: 3,50 € : 3,50 €
-+
17
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2023-11-28
Alternative parts: 30006-080020810
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
18
P/N (SKU): 9RHV-100530-1001
Part Name: STEERING ROD
Effective: 2023-11-28
Alternative parts:
Price: 29,00 € : 29,00 €
-+
19
P/N (SKU): 9RHV-100530-1001-23
Part Name: COTTER PIN
Effective: 2023-11-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 9RHV-100530-1000-21
Part Name: SLOTTED NUT THICK
Effective: 2023-11-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 9RHV-100530-1000-22
Part Name: GASKET
Effective: 2023-11-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 9RHV-100530-1000-20
Part Name: SLOTTED NUT THIN
Effective: 2023-11-28
Alternative parts:
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 9RHV-100301-1200
Part Name: STEERING BEARING SEAT
Effective: 2023-11-28
Alternative parts:
Price: 2,70 € : 2,70 €
-+
24
P/N (SKU): 9RHV-102110-1200
Part Name: BEARING
Effective: 2023-11-28
Alternative parts:
Specification: K003
Price: 5,39 € : 5,39 €
-+
25
P/N (SKU): 9RHV-166000-1200
Part Name: LH HANDLEBAR SWITCH ASSY
Effective: 2023-11-28
Remarks: NA
Alternative parts:
Price: 20,00 € : 20,00 €
-+
26
P/N (SKU): 30006-050012810
Part Name: BOLT
Effective: 2023-11-28
Alternative parts:
Specification: M5×12
Price: 1,50 € : 1,50 €
-+
27
P/N (SKU): 9RHV-169010-1000
Part Name: SAFETY ROPE
Effective: 2023-11-28
Alternative parts: 9RHV-169010-1001
Price: 21,00 € : 21,00 €
27
P/N (SKU): 9RHV-169010-1001
Part Name: SAFETY ROPE ASSY
Effective: 2024-04-16
Alternative parts:
Price: 17,00 € : 17,00 €
-+
