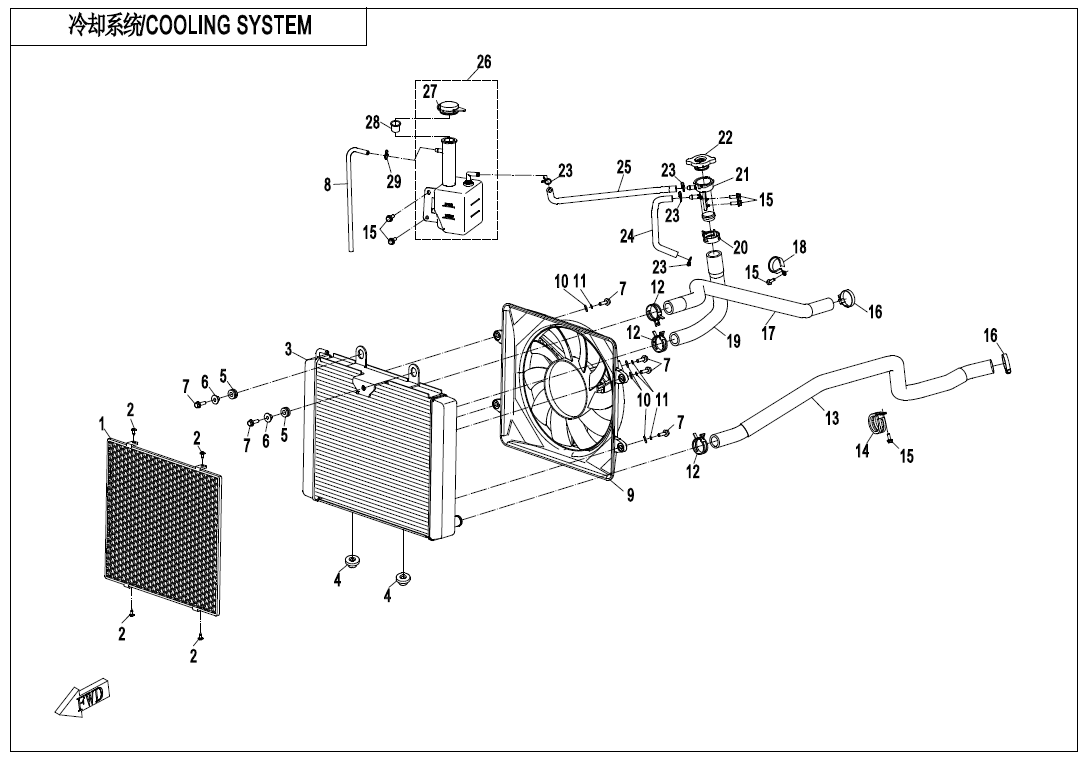

COOLING SYSTEM - F18-V2

COOLING SYSTEM - F18-V2

No.

01
P/N (SKU): 9AWA-181002
Part Name: RADITOR GUARD
Effective: 2021-02-26
Alternative parts:
Price: 19,00 € : 19,00 €
-+
02
P/N (SKU): 30110-481130010
Part Name: SELF-TAPPING SCREW
Effective: 2021-02-26
Alternative parts:
Specification: ST4.8x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 9AY0-181100
Part Name: RADIATOR ASSY
Effective: 2021-02-26
Alternative parts: 9AY0-181100-00001
Price: 330,00 € : 330,00 €
04
P/N (SKU): 9AWA-181001
Part Name: SLEEVE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 9060-180027
Part Name: RUBBER CUSHION, RADIATOR
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 9060-180029
Part Name: RADIATOR SLEEVE TUBE
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
08
P/N (SKU): 5HY0-180008
Part Name: RESERVOIR OVERFLOW HOSE
Effective: 2021-02-26
Alternative parts: 9DSV-180004-6K00
Price: 3,50 € : 3,50 €
09
P/N (SKU): 9AWA-181200-30000
Part Name: FAN MOTOR ASSY
Effective: 2021-02-26
Alternative parts:
Specification: SUMITOMO PLUG
Price: 126,00 € : 126,00 €
-+
09
P/N (SKU): 9AWA-181200-40000
Part Name: FAN MOTOR ASSY
Effective: 2021-02-26
Alternative parts: 9AWA-181200-40001
Price: 124,00 € : 124,00 €
09
P/N (SKU): 9AWA-181200-40001
Part Name: FAN MOTOR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 124,00 € : 124,00 €
-+
10
P/N (SKU): 30306-060112
Part Name: WASHER
Effective: 2021-02-26
Alternative parts: 30306-060142
Specification: φ6
Price: 1,50 € : 1,50 €
11
P/N (SKU): 30303-060920
Part Name: WASHER
Effective: 2021-02-26
Alternative parts:
Specification: 6
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): A000-180006
Part Name: CLAMP B30
Effective: 2021-02-26
Alternative parts:
Specification: B30
Price: 3,00 € : 3,00 €
-+
13
P/N (SKU): 9AWA-180002
Part Name: RADIATOR WATER OUTLET HOSE
Effective: 2021-02-26
Alternative parts:
Price: 31,00 € : 31,00 €
-+
14
P/N (SKU): 9AWA-180030
Part Name: WATER HOSE CLIP 1
Effective: 2021-02-26
Alternative parts:
Price: 4,50 € : 4,50 €
-+
15
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2021-02-26
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9010-180007
Part Name: WATER HOSE CLAMP
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
17
P/N (SKU): 9AWA-180001
Part Name: RADIATOR WATER INLET HOSE
Effective: 2021-02-26
Alternative parts:
Price: 25,00 € : 25,00 €
-+
18
P/N (SKU): 9AWA-180020
Part Name: CLIP,WATER HOSE
Effective: 2021-02-26
Alternative parts:
Price: 3,50 € : 3,50 €
-+
19
P/N (SKU): 9AWA-180005
Part Name: WATER FILLING PORT JOINT PIPE
Effective: 2021-02-26
Alternative parts:
Price: 11,00 € : 11,00 €
-+
20
P/N (SKU): 7000-180007-00001
Part Name: STEEL BAND CLAMP 34
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
20
P/N (SKU): 7000-180007
Part Name: STEEL BAND CLAMP 34
Effective: 2021-02-26
Alternative parts: 7000-180007-00001
Specification: WHITE
Price: 3,50 € : 3,50 €
21
P/N (SKU): 9060-180025-1000
Part Name: WATER FILLING PORT
Effective: 2021-02-26
Alternative parts:
Price: 9,00 € : 9,00 €
-+
22
P/N (SKU): 8010-180024
Part Name: WATER FILLING PORT CAP ASSY
Effective: 2021-02-26
Alternative parts:
Price: 8,50 € : 8,50 €
-+
23
P/N (SKU): 30601-113010
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: A13
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 9AWA-180003
Part Name: OVERFLOW HOSE, RADIATOR
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
25
P/N (SKU): 9AWA-180004
Part Name: RESERVOIR WATER PIPE
Effective: 2021-02-26
Alternative parts: 9AWV-180004-2B00
Price: 3,50 € : 3,50 €
26
P/N (SKU): 9AWA-180010
Part Name: RESERVOIR ASSY
Effective: 2021-02-26
Alternative parts:
Price: 13,00 € : 13,00 €
-+
27
P/N (SKU): 8010-180023
Part Name: RESERVOIR CAP
Effective: 2021-02-26
Alternative parts:
Price: 3,00 € : 3,00 €
-+
28
P/N (SKU): 9060-180903
Part Name: RESERVOIR GASKET
Effective: 2021-02-26
Alternative parts:
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 30601-111010
Part Name: CLAMP
Effective: 2021-02-26
Alternative parts:
Specification: A11@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
