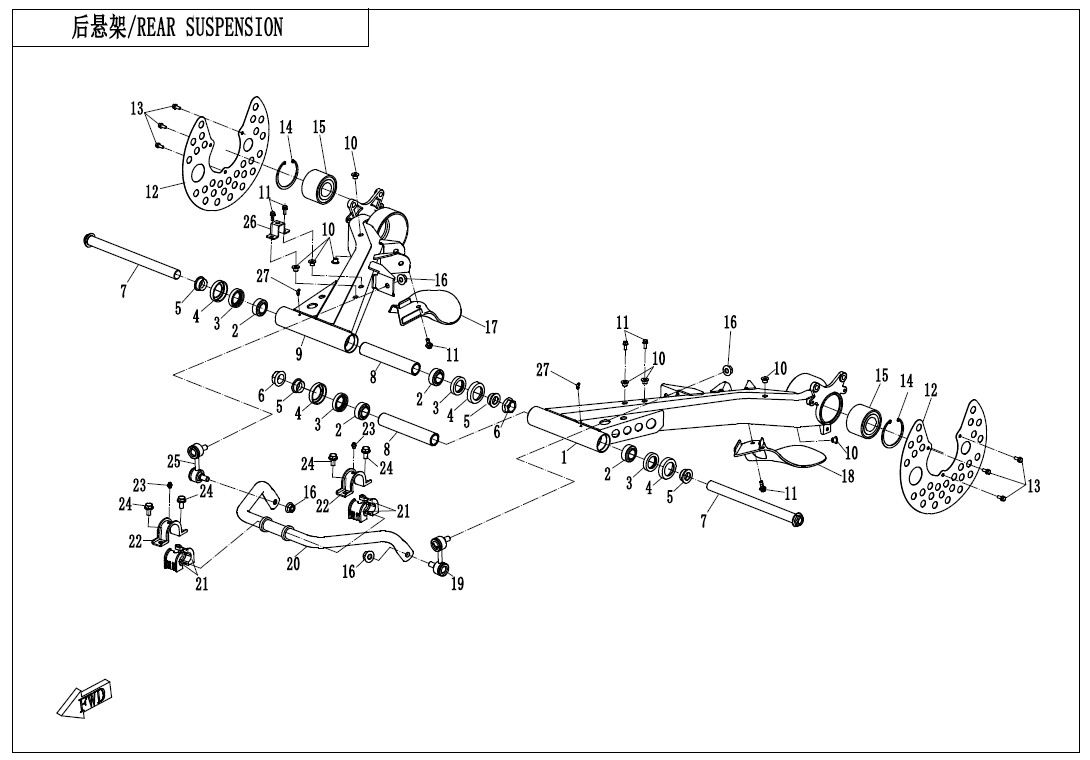

REAR SUSPENSION - F06-1-V2 | 2019, ATV, CF1000AU

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 9AWA-060110-2E800

Part Name: REAR LH SWING ARM

Alternative parts:

Specification: CORAL BLUE

Price: 233,70 € : 233,70 €

P/N (SKU): 9AWA-060110-20000

Part Name: REAR SWING ARM, LH

Alternative parts:

Price: 224,20 € : 224,20 €

P/N (SKU): 9AWA-060110-10000

Part Name: REAR SWING ARM, LH

Alternative parts: 9AWA-060110-20000

Price: 214,80 € : 214,80 €

P/N (SKU): 9AWA-060110-1E800

Part Name: REAR SWING ARM, LH

Alternative parts:

Specification: CORAL BLUE

Price: 214,80 € : 214,80 €

P/N (SKU): 9AWA-060110-1Y600

Part Name: REAR SWING ARM, LH

Alternative parts:

Specification: CRYSTAL ORANGE

Price: 214,80 € : 214,80 €

P/N (SKU): 9AWA-060110-2Y600

Part Name: REAR LH SWING ARM

Alternative parts:

Specification: CRYSTAL ORANGE

Price: 233,10 € : 233,10 €

P/N (SKU): 9AWA-060110-2H900

Part Name: REAR LH SWING ARM

Alternative parts:

Specification: GHOST GRAY

Price: 231,50 € : 231,50 €

P/N (SKU): 9AWA-060109

Part Name: BEARING, REAR SWINGARM

Alternative parts:

Price: 14,70 € : 14,70 €

P/N (SKU): 9AWA-060106

Part Name: OIL SEAL 24x38x8

Alternative parts:

Specification: 24x38x8

Price: 2,05 € : 2,05 €

P/N (SKU): 9AWA-060105-10000

Part Name: DUST COVER

Alternative parts: 9AWA-060105

Price: 1,25 € : 1,25 €

P/N (SKU): 9AWA-060105

Part Name: DUST COVER

Alternative parts: 9AWA-060105-10000

Price: 1,25 € : 1,25 €

P/N (SKU): 9AWA-060102

Part Name: BUSHING, SWING ARM

Alternative parts:

Price: 4,10 € : 4,10 €

P/N (SKU): 9AWA-060108

Part Name: LOCK NUT, SWING ARM

Alternative parts:

Price: 2,95 € : 2,95 €

P/N (SKU): 9AWA-060103

Part Name: REAR SWING ARM SHAFT

Alternative parts:

Price: 24,40 € : 24,40 €

P/N (SKU): 9AWA-060101-10000

Part Name: INNER LINER, REAR SWING ARM

Alternative parts:

Price: 3,30 € : 3,30 €

P/N (SKU): 9AWA-060210-2Y600

Part Name: REAR RH SWING ARM

Alternative parts:

Specification: CRYSTAL ORANGE

Price: 233,10 € : 233,10 €

P/N (SKU): 9AWA-060210-10000

Part Name: REAR SWING ARM, RH

Alternative parts: 9AWA-060210-20000

Price: 210,50 € : 210,50 €

P/N (SKU): 9AWA-060210-2H900

Part Name: REAR RH SWING ARM

Alternative parts:

Specification: GHOST GRAY

Price: 231,50 € : 231,50 €

P/N (SKU): 9AWA-060210-2E800

Part Name: REAR RH SWING ARM

Alternative parts:

Specification: CORAL BLUE

Price: 233,70 € : 233,70 €

P/N (SKU): 9AWA-060210-1Y600

Part Name: REAR SWING ARM, RH

Alternative parts:

Specification: CRYSTAL ORANGE

Price: 210,50 € : 210,50 €

P/N (SKU): 9AWA-060210-20000

Part Name: REAR SWING ARM, RH

Alternative parts:

Price: 204,40 € : 204,40 €

P/N (SKU): 9AWA-060210-1E800

Part Name: REAR SWING ARM, RH

Alternative parts:

Specification: CORAL BLUE

Price: 210,50 € : 210,50 €

P/N (SKU): 30228-061310

Part Name: RIVET NUT

Alternative parts:

Specification: M6

Price: 0,55 € : 0,55 €

P/N (SKU): 30006-060016810

Part Name: BOLT M6x16

Alternative parts: 30006-060016870

Specification: M6x16

Price: 0,55 € : 0,55 €

P/N (SKU): 9AWA-060104

Part Name: GUARD, REAR BRAKE DISC

Alternative parts:

Price: 8,80 € : 8,80 €

P/N (SKU): 30006-060012810

Part Name: BOLT M6x12

Alternative parts: 30006-060012870

Specification: M6x12

Price: 0,55 € : 0,55 €

P/N (SKU): 30800-06005

Part Name: CIRCLIP FOR HOLE

Alternative parts:

Specification: 60

Price: 1,25 € : 1,25 €

P/N (SKU): 30411-03080

Part Name: HUB BEARING

Alternative parts:

Price: 41,00 € : 41,00 €

P/N (SKU): 30204-102810

Part Name: NUT M10x1.25

Alternative parts:

Specification: M10x1.25

Price: 0,55 € : 0,55 €

P/N (SKU): 9AWA-044044

Part Name: REAR SUSPENSION PLATE, RH

Alternative parts:

Price: 3,30 € : 3,30 €

P/N (SKU): 9AWA-044043

Part Name: REAR SUSPENSION PLATE, LH

Alternative parts:

Price: 2,95 € : 2,95 €

P/N (SKU): 9010-060800-20000

Part Name: BALL PIN, RH

Alternative parts:

Specification: CCVI

Price: 27,50 € : 27,50 €

P/N (SKU): 9AWA-060410-10000

Part Name: REAR SWAY BAR ASSY

Alternative parts:

Price: 55,60 € : 55,60 €

P/N (SKU): 7000-060003

Part Name: SUPPORTER, SWAY BAR

Alternative parts:

Price: 3,05 € : 3,05 €

P/N (SKU): 9030-060002

Part Name: COVER, SWAY BAR

Alternative parts:

Price: 4,60 € : 4,60 €

P/N (SKU): 3121401

Part Name: RESERVOIR

Alternative parts:

Price: 0,95 € : 0,95 €

P/N (SKU): 30006-080016810

Part Name: BOLT M8x16

Alternative parts:

Specification: M8x16

Price: 0,55 € : 0,55 €

P/N (SKU): 9010-060700-20000

Part Name: BALL PIN, LH

Alternative parts:

Specification: CCVI

Price: 27,50 € : 27,50 €

P/N (SKU): 9AWA-060107

Part Name: BRACKET, PARKING CABLE, REAR SWING ARM

Alternative parts:

Price: 4,80 € : 4,80 €
