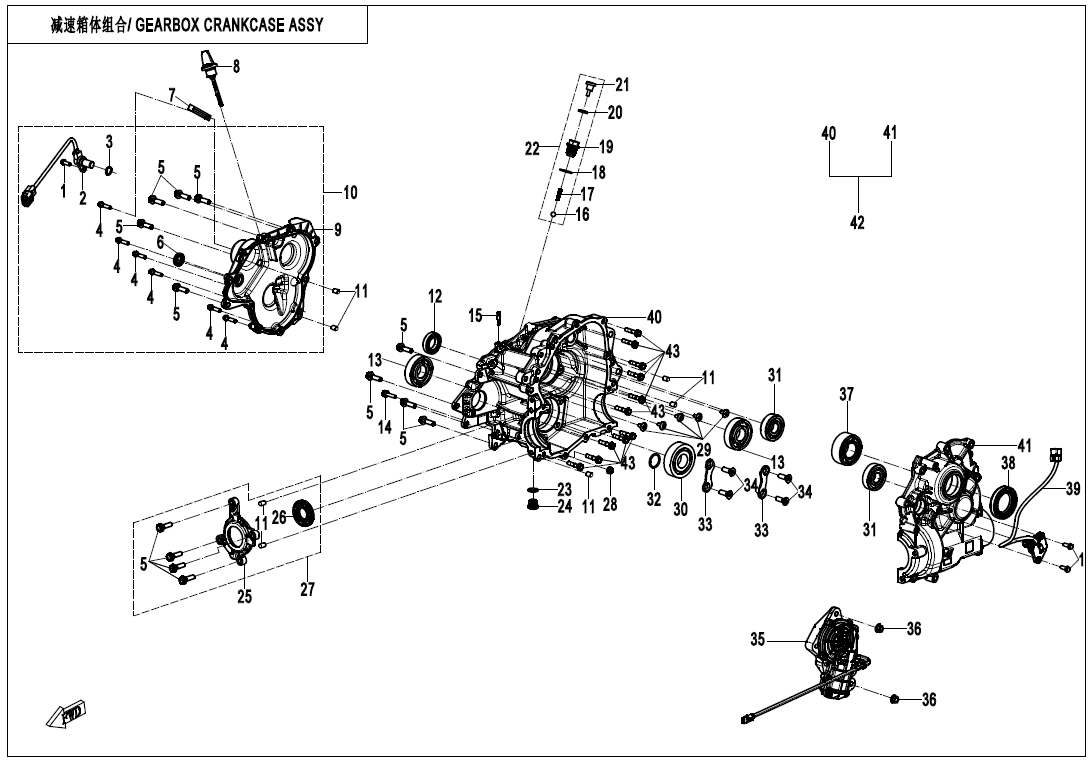

GEARBOX CRANKCASE ASSY - E01-6

GEARBOX CRANKCASE ASSY - E01-6

No.

1
P/N (SKU): 0010-090005-0010
Part Name: BOLT M6x16
Effective: 2026-05-09
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
2
P/N (SKU): 0LYV-011020-1000
Part Name: SPEEDOMETER SENSOR
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
3
P/N (SKU): 01A0-013005
Part Name: O-SEAL RING
Effective: 2026-05-09
Specification: 13x2
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 0010-021017-0010
Part Name: BOLT M6x25
Effective: 2026-05-09
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 0JYA-062104
Part Name: BOLT M8x28
Effective: 2026-05-09
Specification: M8x28
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 0180-065002
Part Name: OIL SEAL
Effective: 2026-05-09
Specification: SD15x25x5
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2026-05-09
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 0JWV-011104-3000
Part Name: DIPSTICK, ENGINE OIL
Effective: 2026-05-09
Price: 3,50 € : 3,50 €
-+
9
P/N (SKU): 0LYV-067101-1000
Part Name: SHIFT CHAMBER COVER
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
10
P/N (SKU): 0LYV-06700Z-1000
Part Name: SHIFT CHAMBER COVER SUB-ASSY
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
11
P/N (SKU): 30410-00800
Part Name: CYLINDRICAL ROLLERS
Effective: 2026-05-09
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30400-02509
Part Name: DEEP GROOVE BALL BEARING
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
13
P/N (SKU): 30499-02501
Part Name: ROLLING BEARING
Effective: 2026-05-09
Specification: 6305C3@NTN
Price: 20,00 € : 20,00 €
-+
14
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-05-09
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 0180-311004-0020
Part Name: BREATHER HOSE JOINT
Effective: 2026-05-09
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 3120003
Part Name: ROLLING BEARINGS
Effective: 2026-05-09
Specification: 38"
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 0180-068003-0050
Part Name: SPRING, LIMIT
Effective: 2026-05-09
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 0JWA-068003
Part Name: WASHER
Effective: 2026-05-09
Specification: 18.2x25x1.5, CUPRUM
Price: 2,00 € : 2,00 €
-+
19
P/N (SKU): 0JWA-068002-00001
Part Name: GEARSHIFT LIMIT BOLT
Effective: 2026-05-09
Price: 3,50 € : 3,50 €
-+
20
P/N (SKU): 0JWA-068004
Part Name: WASHER
Effective: 2026-05-09
Specification: 12.2x18x3
Price: 2,00 € : 2,00 €
-+
21
P/N (SKU): 0800-068001-00001
Part Name: SPRING SEAT, GEARSHIFT LIMIT
Effective: 2026-05-09
Price: 3,00 € : 3,00 €
-+
22
P/N (SKU): 0JWA-068000
Part Name: GEARSHIFT LIMIT BOLT ASSY
Effective: 2026-05-09
Price: 5,00 € : 5,00 €
-+
23
P/N (SKU): 0180-011006
Part Name: GASKET 14
Effective: 2026-05-09
Specification: 14
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 0180-332100
Part Name: MAGNETIC DRAIN BOLT M14×1.25×12
Effective: 2026-05-09
Specification: M14x1.25x12
Price: 5,50 € : 5,50 €
-+
25
P/N (SKU): 0LYV-068104-1100
Part Name: OUTPUT SHAFT OIL SEAL COVER
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
26
P/N (SKU): 0LYV-069607-1000
Part Name: OIL SEAL 25×52×7
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
27
P/N (SKU): 0LYV-06810Z-1100
Part Name: OUTPUT SHAFT OIL SEAL COVER SUB-ASSY
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
28
P/N (SKU): 30204-060810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2026-05-09
Specification: M6
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 0SQ0-0600001
Part Name: HEXAGON SOCKET BUTTON HEAD SCREW
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
30
P/N (SKU): 0110-041007
Part Name: BEARING
Effective: 2026-05-09
Specification: 28×68×18
Price: 39,00 € : 39,00 €
-+
31
P/N (SKU): 30499-02010
Part Name: ROLLING BEARING
Effective: 2026-05-09
Specification: 20×52×15
Price: 13,00 € : 13,00 €
-+
32
P/N (SKU): 0800-062205
Part Name: O-RING
Effective: 2026-05-09
Specification: 25x2
Price: 2,00 € : 2,00 €
-+
33
P/N (SKU): 0180-062104-0010
Part Name: LIMITATOR, BEARING
Effective: 2026-05-09
Price: 2,00 € : 2,00 €
-+
34
P/N (SKU): 30124-080025810
Part Name: HEXALOBULAR SOCKET COUNTERSUNK HEAD SCREWS
Effective: 2026-05-09
Specification: M8x25@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 0LYV-065300-1000
Part Name: ELECTRONIC SHIFT ACTUATOR
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
36
P/N (SKU): 01A0-022002-00002
Part Name: NUT
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
37
P/N (SKU): 30499-03000
Part Name: ROLLING BEARING
Effective: 2026-05-09
Specification: 5206
Price: 68,00 € : 68,00 €
-+
38
P/N (SKU): 0180-012006-10000
Part Name: OIL SEAL
Effective: 2026-05-11
Specification: 30x45x8
Price: 6,50 € : 6,50 €
-+
39
P/N (SKU): 0LYV-012200-1000
Part Name: ELECTRONIC SHIFT SENSOR
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
42
P/N (SKU): JBLY-06FZ01-1001
Part Name: REDUCTION GEARBOX HOUSING ASSY
Effective: 2026-05-09
Price: Not currently available : Not currently available
-+
43
P/N (SKU): 0110-060010-0030
Part Name: BOLT
Effective: 2026-05-11
Specification: M8X38
Price: 2,00 € : 2,00 €
-+
