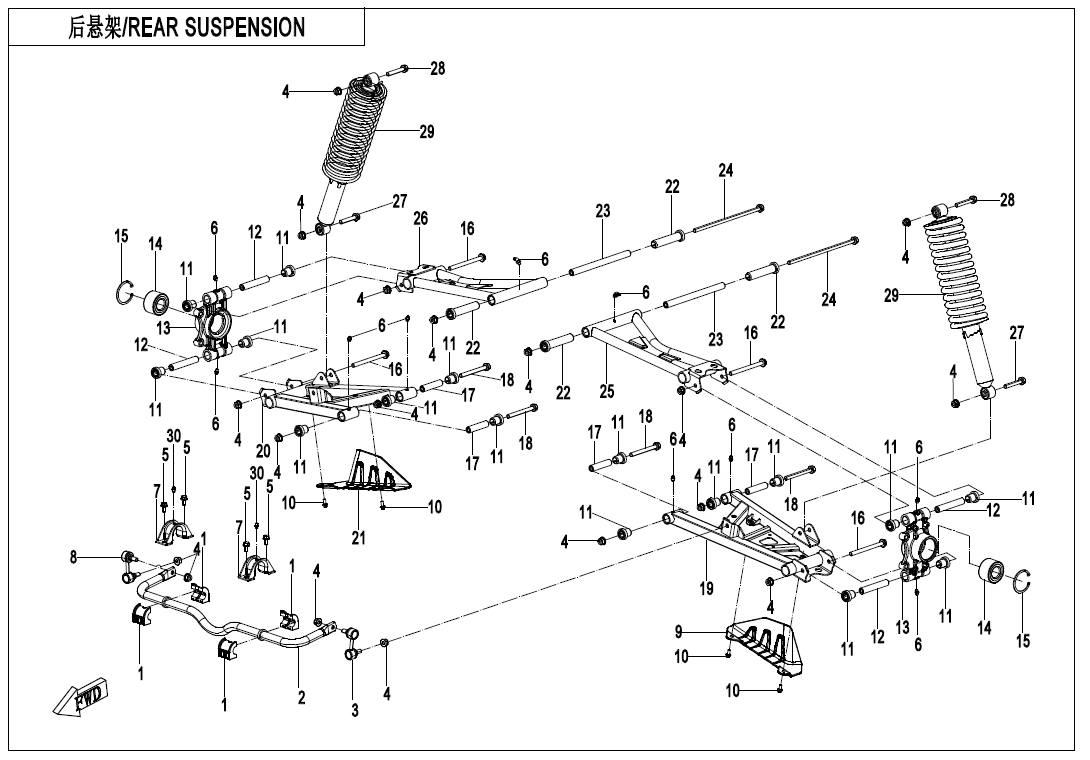

REAR SUSPENSION - F06

REAR SUSPENSION - F06

No.

01
P/N (SKU): 7000-060003
Part Name: SWAY BAR SEAT
Effective: 2024-12-26
Price: 3,50 € : 3,50 €
-+
02
P/N (SKU): 7DHV-060610-1000
Part Name: REAR SWAY BAR
Effective: 2024-12-26
Price: 29,00 € : 29,00 €
-+
03
P/N (SKU): 9010-060700-20000
Part Name: LH BALL PIN ASSY
Effective: 2024-12-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
04
P/N (SKU): 30204-102110
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2024-12-26
Alternative parts: 30204-102810
Specification: M10×1.25
Price: 1,50 € : 1,50 €
05
P/N (SKU): 30006-102020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-26
Specification: M10x1.25x20
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 3120100
Part Name: OIL CUP
Effective: 2024-12-26
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 5GYV-050620-1000
Part Name: SWAY BAR COVER
Effective: 2024-12-26
Alternative parts: 5GYV-050620-1001
Price: 4,50 € : 4,50 €
-+
07
P/N (SKU): 5GYV-050620-1001
Part Name: SWAY BAR PRESS COVER
Effective: 2025-07-21
Price: 5,39 € : 5,39 €
-+
08
P/N (SKU): 9010-060800-20000
Part Name: RH BALL PIN ASSY
Effective: 2024-12-26
Alternative parts: 9DQV-060700-3000-M2+9DQV-060800-3000-M2
Specification: CCVI
Price: 28,00 € : 28,00 €
-+
09
P/N (SKU): 5HYV-060201-1000
Part Name: REAR LH SWINGARM GUARD
Effective: 2024-12-26
Price: 6,00 € : 6,00 €
-+
10
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2024-12-26
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 5ASV-050002-6001
Part Name: SLEEVE
Effective: 2024-12-26
Price: 4,50 € : 4,50 €
-+
12
P/N (SKU): 5HY0-060701-00001
Part Name: REAR WHEEL SHAFT BRACKET MIDDLE SPACER
Effective: 2024-12-26
Price: 5,00 € : 5,00 €
-+
13
P/N (SKU): 5HY0-060703
Part Name: REAR BEARING CARRIER
Effective: 2024-12-26
Price: 75,00 € : 75,00 €
-+
14
P/N (SKU): 30411-03081
Part Name: HUB BEARING
Effective: 2024-12-26
Specification: 30×60×37
Price: 37,00 € : 37,00 €
-+
15
P/N (SKU): 30800-06005
Part Name: CIRCLIPS FOR HOLES
Effective: 2024-12-26
Specification: 60
Price: 2,00 € : 2,00 €
-+
16
P/N (SKU): 30001-102120110
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-26
Alternative parts: 30006-102120810
Specification: M10×1.25×120_COLOR-ZINC
Price: 3,00 € : 3,00 €
-+
17
P/N (SKU): 9060-060201-00002
Part Name: REAR LOWER SWING ARM MIDDLE SPACER
Effective: 2024-12-26
Price: 3,00 € : 3,00 €
-+
18
P/N (SKU): 30001-102095110
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-26
Specification: M10x1.25x95
Price: 2,50 € : 2,50 €
-+
19
P/N (SKU): 5ASV-060210-6004-0BP00
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2026-08-04
Specification: MAUD SPIRIT BLACK
Price: 63,20 € : 63,20 €
-+
19
P/N (SKU): 5ASV-060210-6001-0BP00
Part Name: REAR LH LOWER SWING ARM ASSY
Effective: 2024-12-26
Alternative parts: 5ASV-060210-6002-0BP00
Specification: MAUD SPIRIT BLACK
Price: 74,00 € : 74,00 €
-+
19
P/N (SKU): 5ASV-060210-6002-0BP00
Part Name: REAR LOWER LH SWING ARM ASSY
Effective: 2025-08-27
Specification: MAUD SPIRIT BLACK
Price: 63,20 € : 63,20 €
-+
20
P/N (SKU): 5ASV-060410-6004-0BP00
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2026-08-04
Specification: MAUD SPIRIT BLACK
Price: 63,20 € : 63,20 €
-+
20
P/N (SKU): 5ASV-060410-6001-0BP00
Part Name: REAR RH LOWER SWING ARM ASSY
Effective: 2024-12-26
Alternative parts: 5ASV-060410-6002-0BP00
Specification: MAUD SPIRIT BLACK
Price: 74,00 € : 74,00 €
-+
20
P/N (SKU): 5ASV-060410-6002-0BP00
Part Name: REAR LOWER RH SWING ARM ASSY
Effective: 2025-08-27
Specification: MAUD SPIRIT BLACK
Price: 63,20 € : 63,20 €
-+
21
P/N (SKU): 5HYV-060401-1000
Part Name: GUARD, REAR RH SWING ARM
Effective: 2024-12-26
Price: 6,00 € : 6,00 €
-+
22
P/N (SKU): 5ASV-050001-6000
Part Name: LONG BUSHING
Effective: 2024-12-26
Price: 7,50 € : 7,50 €
-+
23
P/N (SKU): 9060-060101-00002
Part Name: REAR UPPER SWING ARM MIDDLE SPACER
Effective: 2024-12-26
Price: 7,50 € : 7,50 €
-+
24
P/N (SKU): 4060-060101
Part Name: REAR SWING ARM MOUNTING SHAFT
Effective: 2024-12-26
Price: 5,00 € : 5,00 €
-+
25
P/N (SKU): 5ASV-060110-6002-0BP00
Part Name: REAR LH UPPER SWING ARM ASSY
Effective: 2024-12-26
Alternative parts: 5ASV-060110-6003-0BP00
Specification: MAUD SPIRIT BLACK
Price: 60,00 € : 60,00 €
-+
25
P/N (SKU): 5ASV-060110-6003-0BP00
Part Name: REAR UPPER LH SWING ARM ASSY
Effective: 2025-08-27
Specification: MAUD SPIRIT BLACK
Price: 37,20 € : 37,20 €
-+
26
P/N (SKU): 5ASV-060310-6002-0BP00
Part Name: REAR RH UPPER SWING ARM ASSY
Effective: 2024-12-26
Alternative parts: 5ASV-060310-6003-0BP00
Specification: MAUD SPIRIT BLACK
Price: 60,00 € : 60,00 €
-+
26
P/N (SKU): 5ASV-060310-6003-0BP00
Part Name: REAR UPPER RH SWING ARM ASSY
Effective: 2025-08-27
Specification: MAUD SPIRIT BLACK
Price: 37,20 € : 37,20 €
-+
27
P/N (SKU): 30006-102055110
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-26
Specification: COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 30006-102060110
Part Name: HEXAGON FLANGE BOLTS
Effective: 2024-12-26
Price: 2,00 € : 2,00 €
-+
29
P/N (SKU): 7DHV-060500-1001-0DH00
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2026-07-31
Specification: HIGH BRIGHT BLACK
Price: 122,40 € : 122,40 €
-+
29
P/N (SKU): 7DHV-060500-1000
Part Name: REAR SHOCK ABSORBER ASSY
Effective: 2024-12-26
Price: 120,00 € : 120,00 €
-+
30
P/N (SKU): 3121401
Part Name: OIL CUP
Effective: 2024-12-26
Specification: 45 DEGREE
Price: 1,50 € : 1,50 €
-+
