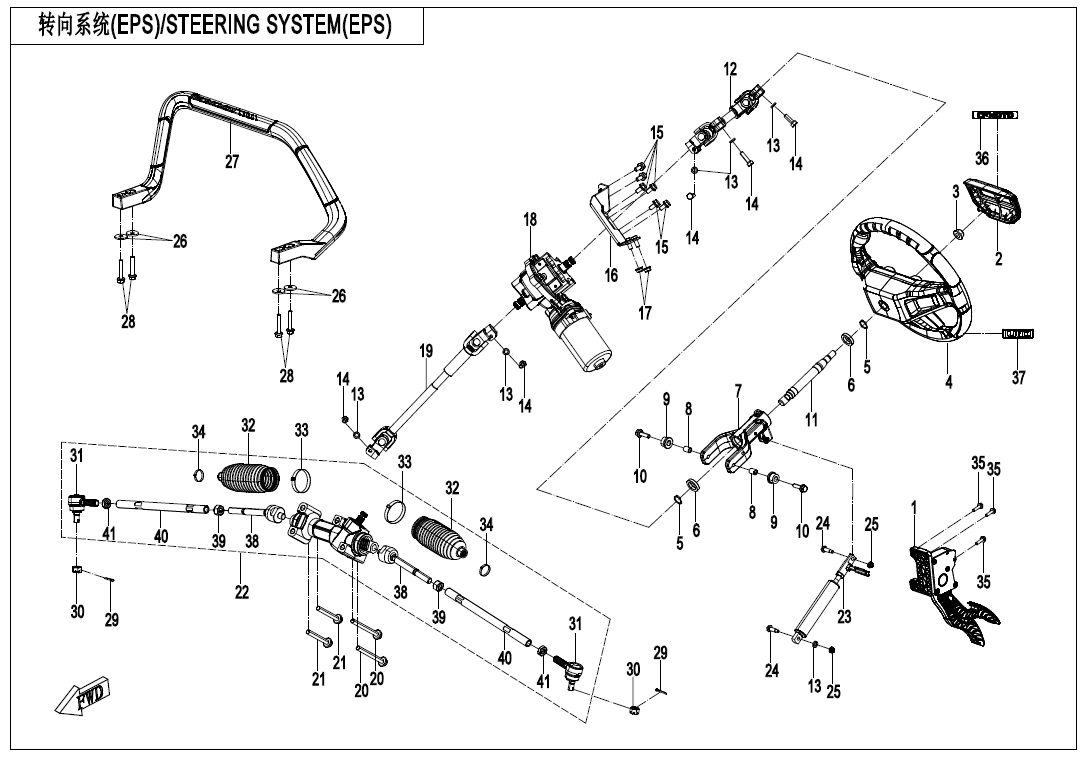

STEERING SYSTEM - F10

STEERING SYSTEM - F10

No.

1
P/N (SKU): 5HYV-152800-6000
Part Name: E-THROTTLE PEDAL
Effective: 2025-04-30
Alternative parts: 5HYV-152800-6000-M1
Specification: null
Price: 86,00 € : 86,00 €
-+
1
P/N (SKU): 5HYV-152800-6000-M1
Part Name: E-THROTTLE PEDAL
Effective: 2025-12-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
2
P/N (SKU): 5HYV-101001-6000
Part Name: STEERING WHEEL PRESS COVER
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
-+
3
P/N (SKU): 30204-122810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 5HYV-101100-6002-0HQ00
Part Name: STEERING WHEEL ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: MATTE GREY
Price: 69,00 € : 69,00 €
-+
5
P/N (SKU): 30801-02005
Part Name: CIRCLIPS FOR SHAFT
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: 20
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 30400-02005
Part Name: DEEP GROOVE BALL BEARING
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: 6804Z
Price: 8,00 € : 8,00 €
-+
7
P/N (SKU): 5HYV-102200-6000-0BV00
Part Name: STEERING WHEEL BRACKET
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: MIDNIGHT BLACK
Price: 42,00 € : 42,00 €
-+
8
P/N (SKU): 9060-100009
Part Name: STEERING COLUMN NYLON BUSHING
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 6,00 € : 6,00 €
-+
9
P/N (SKU): 9060-100008-00001
Part Name: STEERING COLUMN METAL BUSHING
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30006-080028810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M8x28@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
11
P/N (SKU): 5HYV-107300-6000
Part Name: STEERING COLUMN
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 20,00 € : 20,00 €
-+
12
P/N (SKU): 5HY0-103100
Part Name: UPPER STEERING UNIVERSAL SHAFT
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 72,00 € : 72,00 €
-+
13
P/N (SKU): 30303-080112
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: φ8@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30004-080030810
Part Name: HEXAGON HEAD BOLTS WITH FULL THREAD
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M8x30
Price: 1,50 € : 1,50 €
15
P/N (SKU): 30006-080016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
16
P/N (SKU): 5HYV-103100-6001
Part Name: EPS MOUNTING BRACKET ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
17
P/N (SKU): 30204-080810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 5HYV-150820-6000
Part Name: EPS MOTOR
Effective: 2025-04-30
Alternative parts: 5HYV-150820-6001
Specification: null
Price: 382,00 € : 382,00 €
-+
18
P/N (SKU): 5HYV-150820-6001
Part Name: EPS MOTOR
Effective: 2026-05-08
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
19
P/N (SKU): 5HYV-107200-6000
Part Name: LOWER STEERING SHAFT ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 63,00 € : 63,00 €
-+
20
P/N (SKU): 30006-102090810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M10×1.25×90
Price: 3,00 € : 3,00 €
21
P/N (SKU): 30006-102070810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 5HYV-105000-6001
Part Name: STEERING MOTOR ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 147,00 € : 147,00 €
23
P/N (SKU): 5BWV-102000-5001
Part Name: GAS SPRING ASSY
Effective: 2025-04-30
Alternative parts: null
Specification: null
Price: 21,20 € : 21,20 €
24
P/N (SKU): 5HYV-103001-6000
Part Name: AIR SPRING UPPER FIXED BOLT
Effective: 2025-04-30
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
25
P/N (SKU): 30204-060810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30301-080412
Part Name: PLAIN WASHERS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
27
P/N (SKU): 5HYV-100411-6000
Part Name: PASSENGER ARMREST
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 20,00 € : 20,00 €
28
P/N (SKU): 30006-080045810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
29
P/N (SKU): 30903-0322210
Part Name: SPLIT PINS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 30219-122810
Part Name: HEXAGON THIN SLOTTED NUTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M12x1.25@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 5HYV-105000-6001-20
Part Name: OUTER BALL JOINT SUB ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 34,00 € : 34,00 €
-+
32
P/N (SKU): 5HYV-105000-6000-25
Part Name: DUST COVER
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 8,00 € : 8,00 €
-+
33
P/N (SKU): 5HYV-105000-6000-28
Part Name: BIG CLAMP
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
34
P/N (SKU): 5HYV-105000-6000-29
Part Name: SMALL CLAMP
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 30006-060025870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
36
P/N (SKU): 5HYV-190030-6000
Part Name: STEERING WHEEL LOGO
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
-+
37
P/N (SKU): 5HYV-190040-6000
Part Name: STEERING WHEEL SMALL LOGO
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 4,00 € : 4,00 €
-+
38
P/N (SKU): 5HYV-105000-6000-24
Part Name: STEERING ROD SUB ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 24,00 € : 24,00 €
39
P/N (SKU): 5HYV-105000-6000-23
Part Name: THICK HEX NUT
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
40
P/N (SKU): 5HYV-105000-6001-22
Part Name: CONNECTING ROD
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 22,00 € : 22,00 €
41
P/N (SKU): 5HYV-105000-6000-21
Part Name: THIN HEX NUT
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
