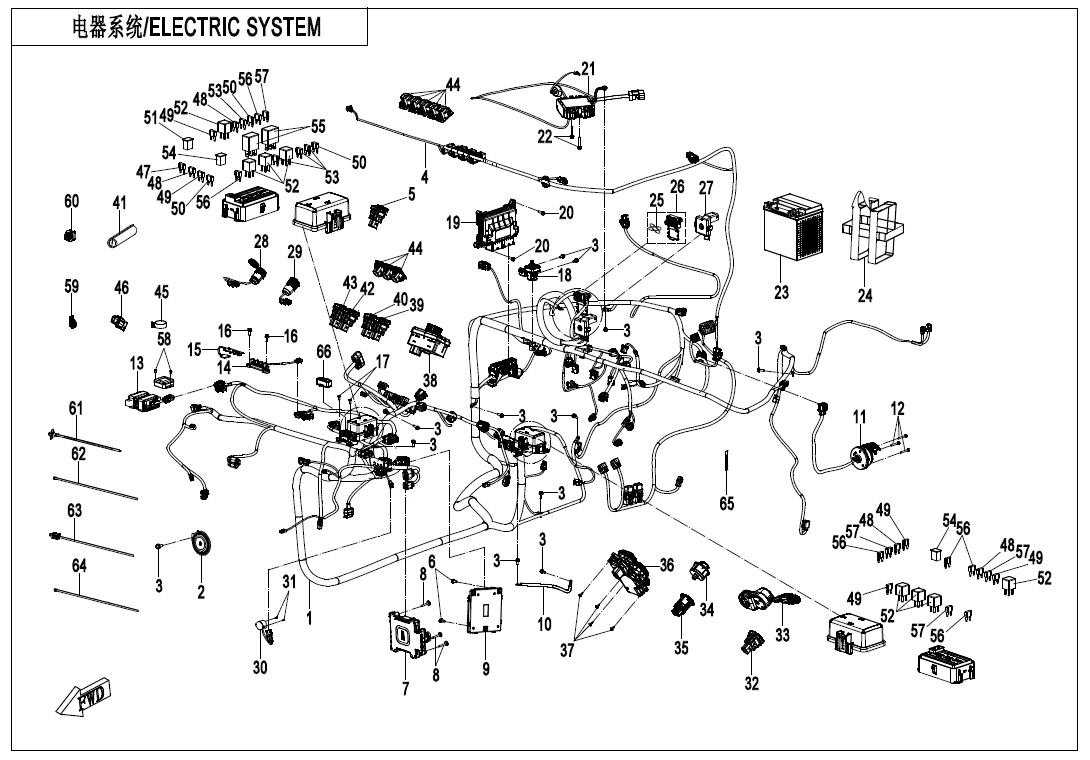

ELECTRIC SYSTEM(BASIC) - F15-1-B

ELECTRIC SYSTEM(BASIC) - F15-1-B

No.

1
P/N (SKU): 5HYV-150100-1U00
Part Name: MAIN CABLE
Effective: 2025-07-10
Remarks: WITH ABS FOR BASIC
Alternative parts: 5HYV-150100-1U01
Price: 986,49 € : 986,49 €
1
P/N (SKU): 5HYV-150100-1U01
Part Name: MAIN CABLE
Effective: 2026-01-20
Remarks: WITH ABS FOR BASIC
Alternative parts:
Price: 0,00 € : 0,00 €
-+
2
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2025-07-10
Alternative parts: EG4V-150600-1000
Price: 11,00 € : 11,00 €
3
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2025-07-10
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
4
P/N (SKU): 5HYV-150191-7300
Part Name: TOP ROOF CABLE
Effective: 2025-07-10
Remarks: WITH ABS
Alternative parts:
Price: 74,10 € : 74,10 €
-+
5
P/N (SKU): 5HYV-169470-7200
Part Name: ABS SWITCH
Effective: 2025-07-10
Remarks: WITH ABS
Alternative parts:
Price: 15,00 € : 15,00 €
-+
6
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2025-07-10
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 5HYV-150810-6000
Part Name: EPS CONTROLLER
Effective: 2025-07-10
Alternative parts:
Price: 214,00 € : 214,00 €
-+
8
P/N (SKU): 5BWV-040006-5000
Part Name: INNER HEX SLEF-TAPPING SCREW ST4.8x40
Effective: 2025-07-10
Alternative parts:
Specification: ST4.8x40
Price: 2,00 € : 2,00 €
-+
9
P/N (SKU): 5HYV-151900-6001
Part Name: BCM
Effective: 2025-07-10
Alternative parts:
Price: 226,00 € : 226,00 €
-+
10
P/N (SKU): 5HYV-150310-9000
Part Name: ENGINE GROUND WIRE
Effective: 2025-07-10
Alternative parts:
Price: 13,00 € : 13,00 €
-+
11
P/N (SKU): 9DQV-151300-3100-10
Part Name: TRAILER POWER SOCKET
Effective: 2025-07-10
Alternative parts:
Price: 37,00 € : 37,00 €
-+
12
P/N (SKU): 30105-050035410
Part Name: SCREW
Effective: 2025-07-10
Alternative parts:
Specification: M5x35@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2025-07-10
Remarks: Europe/Australia/Middle East/Africa/Southeast Asia/west Asia
Alternative parts:
Specification: @Eurasia and Africa and Australia except Turkey,BN,IN,BD,MN,NP
Price: 420,00 € : 420,00 €
-+
14
P/N (SKU): 5BWV-156905-5000-M1
Part Name: EXTENSION POWER TERMINAL
Effective: 2025-07-10
Alternative parts:
Price: 38,00 € : 38,00 €
-+
15
P/N (SKU): 5BWV-156906-5000-M1
Part Name: EXTENSION POWER TERMINAL CAP
Effective: 2025-07-10
Alternative parts:
Price: 4,00 € : 4,00 €
-+
16
P/N (SKU): 30006-060020810
Part Name: BOLT
Effective: 2025-07-10
Alternative parts: 30006-060020870
Specification: M6×20
Price: 1,50 € : 1,50 €
17
P/N (SKU): 30118-480130010
Part Name: SELF-TAPPING SCREW
Effective: 2025-07-10
Alternative parts:
Specification: ST4.8x13@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 5BWV-150510-5300
Part Name: STARTER RELAY
Effective: 2025-07-10
Alternative parts: 5BWV-150510-5301
Price: 27,00 € : 27,00 €
-+
19
P/N (SKU): 5HYV-001000-7000-20
Part Name: ECM ASSY
Effective: 2025-07-10
Remarks: WITH ABS
Alternative parts:
Specification: UP8.0
Price: 0,00 € : 0,00 €
-+
20
P/N (SKU): 30006-060025870
Part Name: BOLTM6x25
Effective: 2025-07-10
Alternative parts:
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 5HYV-151000-6000
Part Name: REGULATOR
Effective: 2025-07-10
Alternative parts:
Price: 133,00 € : 133,00 €
-+
22
P/N (SKU): 30006-060030810
Part Name: BOLT
Effective: 2025-07-10
Alternative parts:
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 31023004
Part Name: BATTERY
Effective: 2025-07-10
Alternative parts:
Specification: DYNAVOLT,12V 32Ah
Price: 272,00 € : 272,00 €
-+
24
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2025-07-10
Alternative parts:
Price: 4,00 € : 4,00 €
-+
25
P/N (SKU): CFCV-156215-4500
Part Name: ANF FUSE 80A
Effective: 2025-07-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
26
P/N (SKU): CFCV-156444-2000-M1
Part Name: 80A FUSE BOX
Effective: 2025-07-10
Alternative parts:
Price: 7,15 € : 7,15 €
-+
27
P/N (SKU): 5BWV-156902-5100-M1
Part Name: JUNCTION BOX COVER
Effective: 2025-07-10
Alternative parts:
Price: 7,70 € : 7,70 €
-+
28
P/N (SKU): 9AWV-151200-8000
Part Name: USB OUTPUT SEAT ASSY
Effective: 2025-07-10
Alternative parts:
Price: 38,00 € : 38,00 €
-+
29
P/N (SKU): 9DSV-150500-6R01
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2025-07-10
Alternative parts:
Price: 22,00 € : 22,00 €
-+
30
P/N (SKU): 9AWV-156800-2800
Part Name: ALARM
Effective: 2025-07-10
Alternative parts:
Price: 21,20 € : 21,20 €
-+
31
P/N (SKU): 30110-290095010
Part Name: SELF-TAPPING SCREW
Effective: 2025-07-10
Alternative parts: 30110-290130010
Specification: ST2.9x9.5@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
32
P/N (SKU): 5HYV-169030-6000
Part Name: DIMMER SWITCH
Effective: 2025-07-10
Alternative parts:
Price: 15,00 € : 15,00 €
-+
33
P/N (SKU): 5GYV-169480-1200
Part Name: SWITCHGROUP
Effective: 2025-07-10
Alternative parts:
Price: 38,00 € : 38,00 €
-+
34
P/N (SKU): 5HYV-169080-6000
Part Name: 2WD/4WD SWITCH
Effective: 2025-07-10
Alternative parts:
Price: 30,00 € : 30,00 €
-+
35
P/N (SKU): 5HYV-169150-6000
Part Name: ONE-CLICK START SWITCH
Effective: 2025-07-10
Alternative parts:
Price: 38,00 € : 38,00 €
-+
36
P/N (SKU): 5HYV-169390-6000
Part Name: E-SHIFTER
Effective: 2025-07-10
Alternative parts:
Price: 114,00 € : 114,00 €
-+
37
P/N (SKU): 30110-480190070
Part Name: SLEF-TAPPING SCREW
Effective: 2025-07-10
Alternative parts:
Specification: ST4.8X19
Price: 1,50 € : 1,50 €
-+
38
P/N (SKU): 5HYV-169500-6001
Part Name: FUNCTION SWITCH
Effective: 2025-07-10
Alternative parts:
Price: 85,00 € : 85,00 €
-+
39
P/N (SKU): 5HYV-169070-6000
Part Name: HAZARD SWITCH
Effective: 2025-07-10
Alternative parts:
Price: 15,00 € : 15,00 €
-+
40
P/N (SKU): 5HYV-169540-6000
Part Name: EPB SWITCH
Effective: 2025-07-10
Alternative parts:
Price: 15,00 € : 15,00 €
-+
41
P/N (SKU): 5HYV-156000-9000-M1
Part Name: ADHESIVE SELF-COILING TUBE
Effective: 2025-07-10
Alternative parts:
Price: 3,60 € : 3,60 €
-+
42
P/N (SKU): 5HYV-169360-6001
Part Name: WINCH SWITCH ASSY
Effective: 2025-07-10
Alternative parts:
Price: 25,00 € : 25,00 €
-+
43
P/N (SKU): 5HYV-169570-6000
Part Name: VR SWITCH
Effective: 2025-07-10
Alternative parts:
Price: 15,00 € : 15,00 €
-+
44
P/N (SKU): 5ASV-152200-6001
Part Name: SWITCH HOLE COVER_6PIN
Effective: 2025-07-10
Alternative parts:
Specification: 6 PIN
Price: 3,00 € : 3,00 €
-+
45
P/N (SKU): 6KMV-150901-B002
Part Name: T-BOX RUBBER RING
Effective: 2025-07-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
46
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2025-07-10
Alternative parts: CFCV-156122-2000-M1
Price: 6,00 € : 6,00 €
-+
47
P/N (SKU): 806A-151301
Part Name: FUSE 7.5A
Effective: 2025-07-10
Alternative parts:
Specification: 7.5A
Price: 1,50 € : 1,50 €
-+
48
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2025-07-10
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
49
P/N (SKU): 806A-151308
Part Name: 30A FUSE
Effective: 2025-07-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
50
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2025-07-10
Alternative parts:
Price: 1,50 € : 1,50 €
-+
51
P/N (SKU): CFCV-150011-4500-M1
Part Name: 60A FUSE
Effective: 2025-07-10
Alternative parts:
Price: 2,50 € : 2,50 €
-+
52
P/N (SKU): CFCV-150525-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2025-07-10
Alternative parts:
Price: 5,00 € : 5,00 €
-+
53
P/N (SKU): 8010-151301
Part Name: FUSE 5A
Effective: 2025-07-10
Alternative parts:
Specification: 5A
Price: 1,50 € : 1,50 €
-+
54
P/N (SKU): 5BY0-150302
Part Name: 40A FUSE
Effective: 2025-07-10
Alternative parts:
Price: 1,50 € : 1,50 €
-+
55
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2025-07-10
Alternative parts:
Price: 7,00 € : 7,00 €
-+
56
P/N (SKU): 806A-151306
Part Name: 20A FUSE
Effective: 2025-07-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
57
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2025-07-10
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
58
P/N (SKU): 30110-421130010
Part Name: SELF-TAPPING SCREW
Effective: 2025-07-10
Alternative parts: 30110-420130070
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
59
P/N (SKU): 6GU#-150001-6000-M1
Part Name: CLASP
Effective: 2025-07-10
Alternative parts:
Price: 1,50 € : 1,50 €
-+
60
P/N (SKU): CFCV-CBC005-2000-M1
Part Name: CLIP
Effective: 2025-07-10
Alternative parts:
Price: 2,00 € : 2,00 €
-+
61
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2025-07-10
Alternative parts:
Price: 1,50 € : 1,50 €
-+
62
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2025-07-10
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
63
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG
Effective: 2025-07-10
Alternative parts:
Specification: 4.7x194@ZDG4.7X194
Price: 1,50 € : 1,50 €
-+
64
P/N (SKU): 0000-000014
Part Name: TIE BAND
Effective: 2025-07-10
Alternative parts:
Specification: BLACK
Price: 1,50 € : 1,50 €
-+
65
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2025-07-10
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
66
P/N (SKU): CFCV-11H016-2000-M1
Part Name: DIAGNOSIS CONNECTOR COVER
Effective: 2025-07-10
Alternative parts:
Price: 1,50 € : 1,50 €
-+
