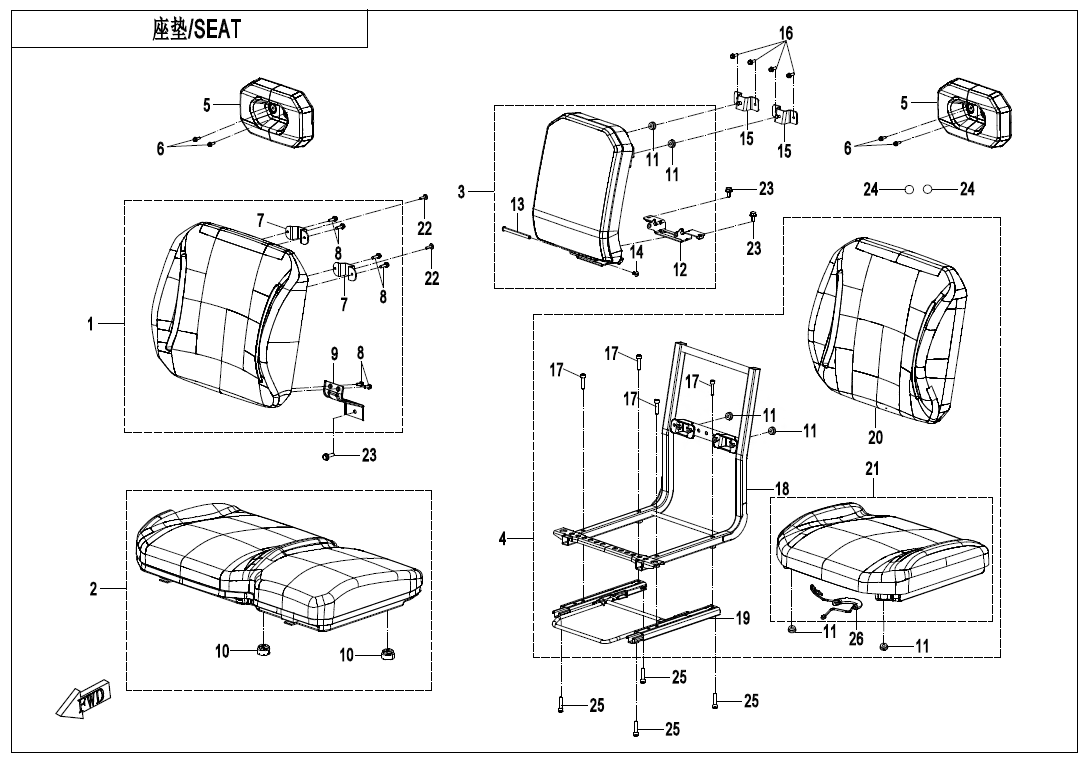

SEAT(WITH HEATING FUNCTION FOR ABS) - F13-B

SEAT(WITH HEATING FUNCTION FOR ABS) - F13-B

No.

1
P/N (SKU): 5HYV-136000-7000
Part Name: PASSENGER BACKREST ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 72,30 € : 72,30 €
2
P/N (SKU): 5HYV-132000-9100
Part Name: HEATED PASSENGER SEAT ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 142,20 € : 142,20 €
3
P/N (SKU): 5HYV-134000-7000
Part Name: MIDDLE BACKREST ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 48,00 € : 48,00 €
-+
4
P/N (SKU): 5HYV-131000-9100
Part Name: HEATED DRIVER SEAT ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 199,26 € : 199,26 €
5
P/N (SKU): 5ASV-134000-6000
Part Name: HEAD REST
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 66,00 € : 66,00 €
-+
6
P/N (SKU): 5HY#-040002-1000
Part Name: BOLT M6x17
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
7
P/N (SKU): 5HYV-133300-6001
Part Name: BACKREST UPPER BRACKET
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
8
P/N (SKU): 30006-060016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
9
P/N (SKU): 5HYV-133400-6001
Part Name: BACKREST LOWER BRACKET
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 4,00 € : 4,00 €
10
P/N (SKU): 7020-130001
Part Name: SEAT LOCATING RUBBER SLEEVE
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
11
P/N (SKU): 5HY#-130002-1000
Part Name: BACKREST DAMPING MAT
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5HYV-134100-6001
Part Name: MIDDLE BACKREST BRACKET
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
13
P/N (SKU): 5HYV-134000-6000-24
Part Name: PIN SHAFT
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
14
P/N (SKU): 5HYV-134000-6000-25
Part Name: TWIN SCREW ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M6×104
Price: 1,50 € : 1,50 €
15
P/N (SKU): 5HY#-133001-1000
Part Name: REAR BRACKET
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 6,00 € : 6,00 €
16
P/N (SKU): 30006-060016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
17
P/N (SKU): 30102-080035810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M8x35
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 5HYV-131310-6001
Part Name: DRIVER SEAT FRAME ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 77,00 € : 77,00 €
19
P/N (SKU): 5HYV-131320-6001
Part Name: SLIDE RAIL ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 46,00 € : 46,00 €
20
P/N (SKU): 5HYV-131300-7000
Part Name: DRIVER BACKREST ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 75,21 € : 75,21 €
21
P/N (SKU): 5HYV-131100-9100
Part Name: DRIVER HEATING SEAT ASSY
Effective: 2025-04-30
Alternative parts: null
Specification: null
Price: 199,26 € : 199,26 €
22
P/N (SKU): 30006-060025870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
23
P/N (SKU): 30006-080016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 5HYV-190026-6000
Part Name: PLUG PATCH 1
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
25
P/N (SKU): 30102-080025810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 5HYV-137110-7000
Part Name: PRESSURE SENSOR
Effective: 2025-04-30
Alternative parts: null
Specification: null
Price: 20,00 € : 20,00 €
-+
