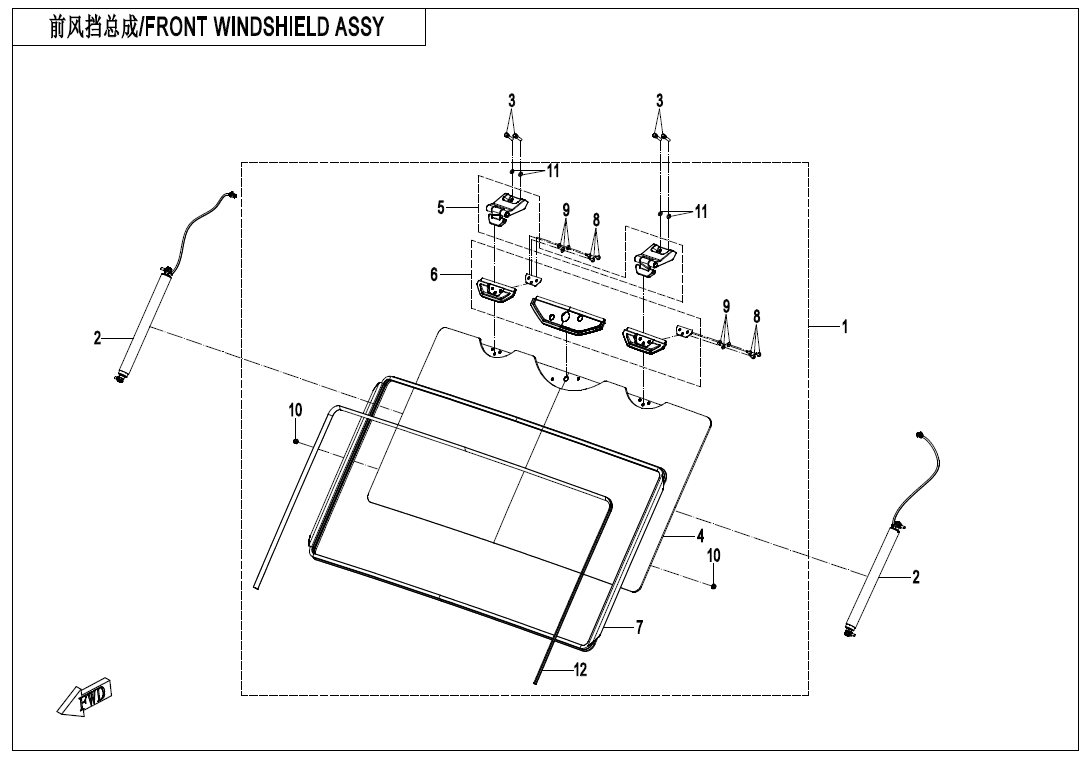

FRONT WINDSHIELD ASSY - F80-1-V3

FRONT WINDSHIELD ASSY - F80-1-V3

No.

1
P/N (SKU): 5HYV-805100-9004
Part Name: FRONT WINDSHIELD ASSY
Effective: 2025-07-18
Remarks: null
Alternative parts: 5HYV-805100-9005
Specification: null
Price: 1 000,00 € : 1 000,00 €
2
P/N (SKU): 5HYV-805102-9001
Part Name: ELECTRIC STRUT
Effective: 2025-07-18
Remarks: null
Alternative parts: 5HYV-805102-9002
Specification: null
Price: 189,00 € : 189,00 €
-+
3
P/N (SKU): 30006-080025870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-07-18
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
4
P/N (SKU): 5HYV-805110-9001
Part Name: WINDSHIELD FRAME ASSY
Effective: 2025-07-18
Remarks: null
Alternative parts: null
Specification: null
Price: 501,00 € : 501,00 €
5
P/N (SKU): 5HYV-805120-9003
Part Name: HINGE ASSY
Effective: 2025-07-18
Remarks: null
Alternative parts: null
Specification: null
Price: 103,50 € : 103,50 €
-+
6
P/N (SKU): 5HYV-805130-9000
Part Name: COVER PLATE ASSY
Effective: 2025-07-18
Remarks: null
Alternative parts: null
Specification: null
Price: 47,19 € : 47,19 €
7
P/N (SKU): 5HYV-805101-9002
Part Name: SEAL STRIP
Effective: 2025-07-18
Remarks: null
Alternative parts: null
Specification: null
Price: 57,60 € : 57,60 €
8
P/N (SKU): 6NQ#-000206-6001
Part Name: INNER HEX SCREW M6x16
Effective: 2025-07-18
Remarks: null
Alternative parts: null
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 5HYV-805100-9000-20
Part Name: GASKET
Effective: 2025-07-18
Remarks: null
Alternative parts: null
Specification: 6.5-1
Price: 0,91 € : 0,91 €
10
P/N (SKU): 30204-080810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2025-07-18
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 30309-080870
Part Name: PLAIN WASHERS
Effective: 2025-07-18
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
12
P/N (SKU): 5HYV-805105-9000
Part Name: SEAL BELT LINE
Effective: 2025-07-18
Remarks: null
Alternative parts: null
Specification: null
Price: 17,55 € : 17,55 €
