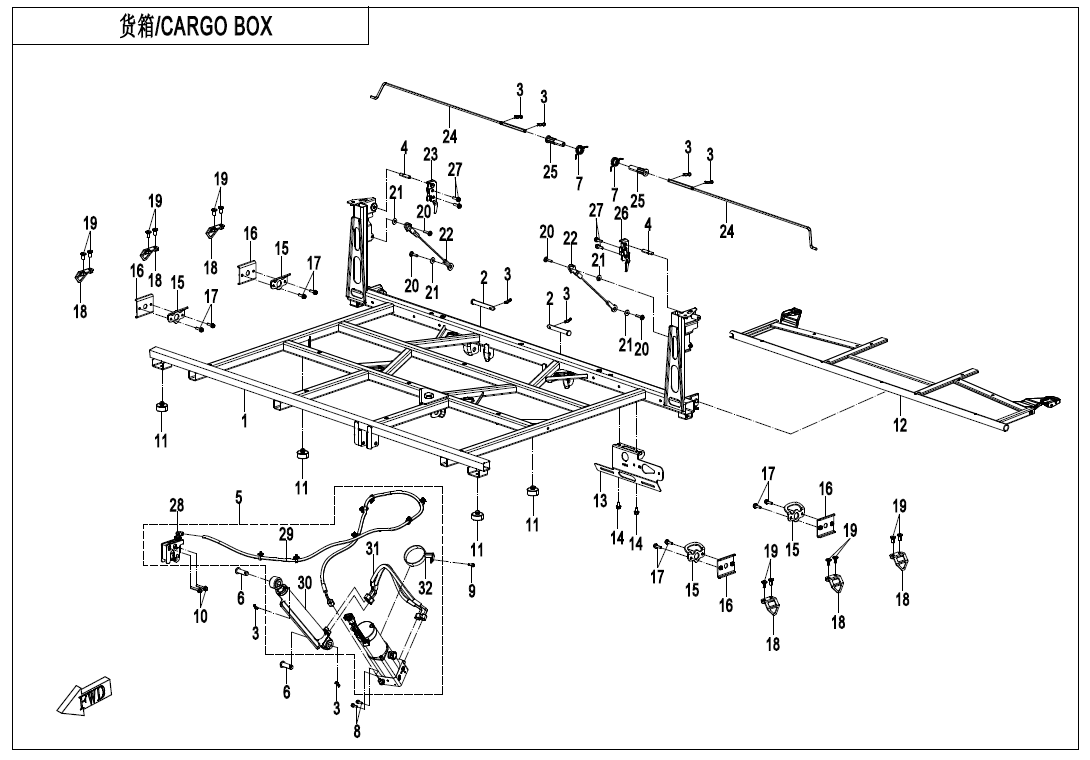

CARGO BOX - F22-2-V2

CARGO BOX - F22-2-V2

No.

1
P/N (SKU): 5HYV-221000-6000
Part Name: CARGO BOX SKELETON ASSY
Effective: 2025-09-11
Remarks: null
Alternative parts: 5HYV-221000-6002
Specification: null
Price: 181,00 € : 181,00 €
1
P/N (SKU): 5HYV-221000-6002
Part Name: CARGO BOX SKELETON ASSY
Effective: 2025-09-11
Remarks: null
Alternative parts: 5HY1-2200002
Specification: null
Price: 76,81 € : 76,81 €
2
P/N (SKU): 5HYV-220011-6000
Part Name: PIN SHAFT
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
3
P/N (SKU): 5HY#-220008-1000
Part Name: PIN SHAFT
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
4
P/N (SKU): 5HY#-221601-1000
Part Name: SCREW, PIN SHAFT
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
5
P/N (SKU): 5HYV-222080-4100
Part Name: HUDRAULIC LIFT
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: @
Price: 582,25 € : 582,25 €
6
P/N (SKU): 5HYV-220012-6000
Part Name: PIN SHAFT SCREW
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
7
P/N (SKU): 5HYV-220015-6000
Part Name: LEVER SPRING
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
8
P/N (SKU): 30006-080016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
9
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30006-080045810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
11
P/N (SKU): 5HY0-220004
Part Name: RUBBER MAT
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
12
P/N (SKU): 5HYV-220003-6002
Part Name: CARGO BOX DOOR STEERING SHAFT
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 74,00 € : 74,00 €
13
P/N (SKU): 5HYV-220010-6000
Part Name: REAR LICENCE BRACKET
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 8,00 € : 8,00 €
14
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-09-11
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
15
P/N (SKU): 9030-220004
Part Name: BAND HOOK
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
16
P/N (SKU): 7030-221140
Part Name: HOOK MOUNTING BRACKET
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 5,00 € : 5,00 €
17
P/N (SKU): 5BWV-040007-5000
Part Name: BOLT
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 5HY0-222010
Part Name: CARGO BOX HOOK ASSY
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 13,00 € : 13,00 €
19
P/N (SKU): 5HYV-040001-6000
Part Name: BOLT
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
20
P/N (SKU): 7030-010508
Part Name: TAIL BOX CABLE BOLT
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 4,00 € : 4,00 €
21
P/N (SKU): 30305-060112
Part Name: PLAIN WASHERS
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: φ6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 7030-010500-10000
Part Name: TAIL BOX FIXING CABLE
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
23
P/N (SKU): 5HYV-222070-6000
Part Name: REAR RH DOOR LOCK
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
24
P/N (SKU): 5HYV-220002-6000
Part Name: CARGO BOX TORSION BAR
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
25
P/N (SKU): 5HY0-223035
Part Name: CARGO BOX WRENCH SLEEVE
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
26
P/N (SKU): 5HYV-222060-6000
Part Name: REAR LH DOOR LOCK
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
27
P/N (SKU): 30006-060022810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: M6×22
Price: 1,50 € : 1,50 €
28
P/N (SKU): 5HYV-222083-4100
Part Name: HYDRAULIC LOCK
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 78,41 € : 78,41 €
29
P/N (SKU): 5HYV-222084-4100
Part Name: HYDRAULIC LOCK OIL PIPE
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 57,20 € : 57,20 €
30
P/N (SKU): 5HYV-222081-4100
Part Name: CYLINDER
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 150,50 € : 150,50 €
31
P/N (SKU): 5HYV-222085-4100
Part Name: CYLINDER OIL PIPE
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 27,60 € : 27,60 €
32
P/N (SKU): 5HYV-222080-4100-20
Part Name: CLAMP
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 8,80 € : 8,80 €
