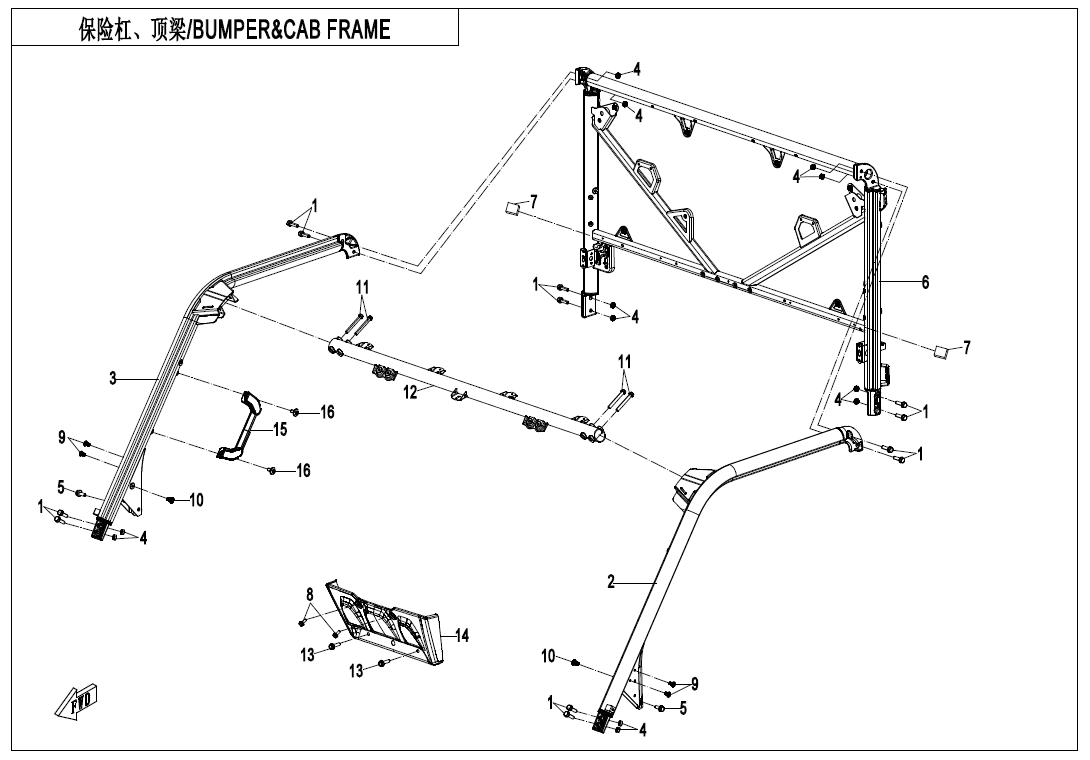

BUMPER @^ CAB FRAME - F23-V2

BUMPER @^ CAB FRAME - F23-V2

No.

1
P/N (SKU): 30006-102035160
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
2
P/N (SKU): 5HYV-234000-6003-0BP00
Part Name: FRONT CAB LH ASSY
Effective: 2026-04-02
Remarks: null
Alternative parts: 5HYV-234000-6004-0BP00
Specification: MAUD SPIRIT BLACK
Price: 135,59 € : 135,59 €
2
P/N (SKU): 5HYV-234000-6004-0BP00
Part Name: FRONT CAB LH ASSY
Effective: 2026-04-02
Remarks: null
Alternative parts: 5HYV-234000-6005-0BP00
Specification: MAUD SPIR
Price: 0,00 € : 0,00 €
2
P/N (SKU): 5HYV-234000-6005-0BP00
Part Name: FRONT CAB LH&RH ASSY
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 0,00 € : 0,00 €
3
P/N (SKU): 5HYV-235000-6003-0BP00
Part Name: FRONT CAB RH ASSY
Effective: 2026-04-02
Remarks: null
Alternative parts: 5HYV-235000-6004-0BP00/5HYV-235000-6005-0BP00
Specification: MAUD SPIRIT BLACK
Price: 135,59 € : 135,59 €
3
P/N (SKU): 5HYV-235000-6004-0BP00
Part Name: FRONT CAB RH ASSY
Effective: 2026-04-02
Remarks: null
Alternative parts: 5HYV-235000-6005-0BP00
Specification: MAUD SPIR
Price: 0,00 € : 0,00 €
3
P/N (SKU): 5HYV-235000-6005-0BP00
Part Name: FRONT RH CAB ASSY
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 0,00 € : 0,00 €
4
P/N (SKU): 30225-102810
Part Name: TORQUE TYPE HEXAGON NUTS
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: M10x1.25
Price: 2,00 € : 2,00 €
5
P/N (SKU): 30006-080020870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-04-02
Remarks: null
Alternative parts: 30006-080016810
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 5HYV-237000-6002-0BP00
Part Name: REAR CAB ASSY
Effective: 2026-04-02
Remarks: FOR THREE SEATS
Alternative parts: 5HYV-237000-6003-0BP00
Specification: MAUD SPIRIT BLACK
Price: 258,00 € : 258,00 €
6
P/N (SKU): 5HYV-237000-7200-0BP00
Part Name: REAR CAB ASSY
Effective: 2026-04-02
Remarks: FOR TWO SEATS
Alternative parts: 5HYV-237000-7201-0BP00
Specification: MAUD SPIRIT BLACK
Price: 256,00 € : 256,00 €
6
P/N (SKU): 5HYV-237000-6003-0BP00
Part Name: REAR CAB ASSY
Effective: 2026-04-02
Remarks: FOR THREE SEATS
Alternative parts: 5HY1-2300002-BP
Specification: MAUD SPIRIT BLACK
Price: 0,00 € : 0,00 €
6
P/N (SKU): 5HYV-237000-7201-0BP00
Part Name: REAR CAB ASSY
Effective: 2026-04-02
Remarks: FOR TWO SEATS
Alternative parts: 5HY1-2300001-BP
Specification: MAUD SPIRIT BLACK
Price: 0,00 € : 0,00 €
7
P/N (SKU): 5HYV-046004-9000
Part Name: REAR PANEL CAB SEAL SPONGE
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
8
P/N (SKU): 30006-080016870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 5HYV-045001-6001
Part Name: M6 BOLT PLUG
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
10
P/N (SKU): 5HYV-045002-6001
Part Name: M8 BOLT PLUG
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
11
P/N (SKU): 30006-102080110
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
12
P/N (SKU): 5HYV-230600-6000-0BP00
Part Name: FRONT CAB ASSY
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 81,00 € : 81,00 €
13
P/N (SKU): 30024-102025870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
14
P/N (SKU): 5HYV-231101-6001-0BP00
Part Name: BUMPER
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 38,00 € : 38,00 €
15
P/N (SKU): 5HYV-045701-4101
Part Name: PASSENGER ARMREST
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
16
P/N (SKU): 5BWV-040001-5000
Part Name: INNER HEX BOLT
Effective: 2026-04-02
Remarks: null
Alternative parts: null
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
