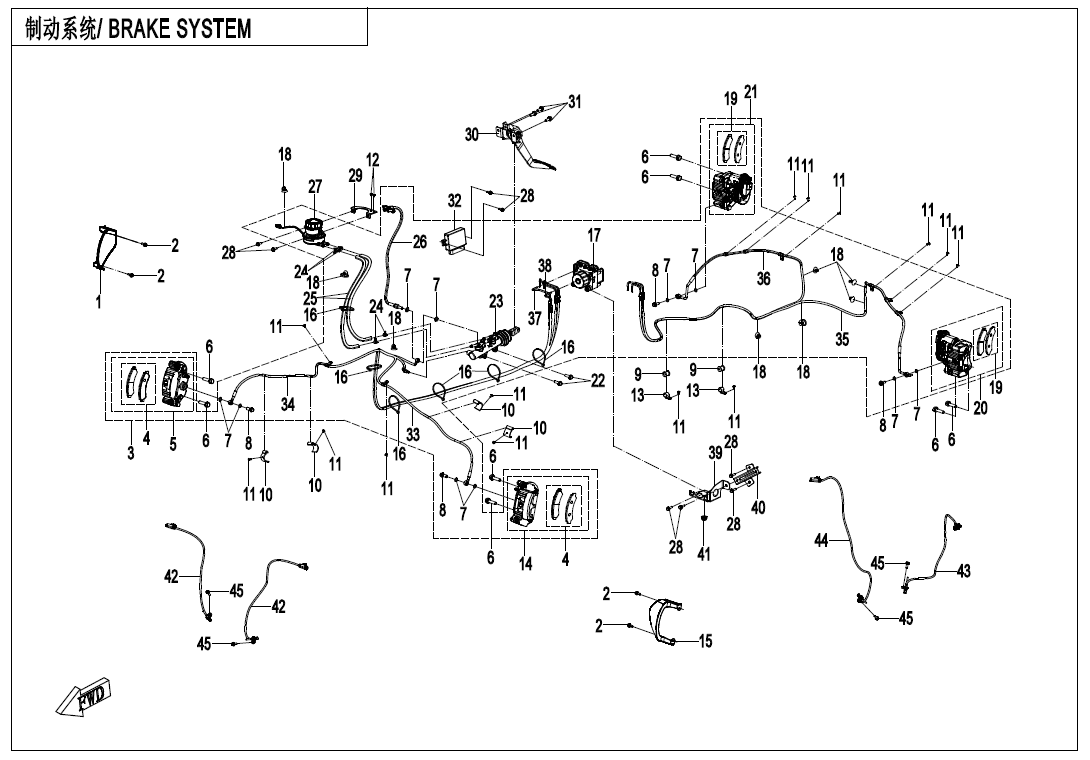

BRAKE SYSTEM(WITH ABS) - F08-B

BRAKE SYSTEM(WITH ABS) - F08-B

No.

1
P/N (SKU): 5HYV-080009-6000
Part Name: GUARD, FRONT RH BRAKE CALIPER
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
-+
2
P/N (SKU): 8010-000004
Part Name: BOLT M6x14
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
3
P/N (SKU): 5HYV-082000-7200
Part Name: ABS HYDRAULIC BRAKE ASSY
Effective: 2025-04-30
Alternative parts: 5HYV-082000-7201
Specification: null
Price: 0,00 € : 0,00 €
3
P/N (SKU): 5HYV-082000-7201
Part Name: ABS HYDRAULIC BRAKE ASSY
Effective: 2025-10-30
Remarks: null
Alternative parts: null
Specification: null
Price: 1 065,00 € : 1 065,00 €
4
P/N (SKU): 5HYV-0811A0-6000
Part Name: FRONT BRAKE PAD ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 32,00 € : 32,00 €
-+
5
P/N (SKU): 5HYV-081200-6000
Part Name: FRONT RH BRAKE CALIPER
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 95,00 € : 95,00 €
-+
6
P/N (SKU): 30006-102040810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: 30006-102045810
Specification: M10×1.25×40
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 901B-080102
Part Name: WASHER
Effective: 2025-04-30
Remarks: null
Alternative parts: 0010-060010
Specification: 80
Price: 1,50 € : 1,50 €
8
P/N (SKU): 7020-081004
Part Name: BANJO BOLT
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 3,50 € : 3,50 €
-+
9
P/N (SKU): 9030-180008
Part Name: RUBBER SLEEVE
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9DQV-080001-3000
Part Name: PLASTIC CLASP 1
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
11
P/N (SKU): 30902-0401320
Part Name: MUSHROOM HEAD BREAK MANDREL BLIND RIVETS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: φ4×13
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30110-480160010
Part Name: CROSS-RECESSED FLAT ROUND HEAD TAPPING SCREWS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: ST4.
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 9AWA-080004
Part Name: FIXING CLIP
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
14
P/N (SKU): 5HYV-081100-6000
Part Name: FRONT LH BRAKE CALIPER
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 95,00 € : 95,00 €
-+
15
P/N (SKU): 5HYV-080008-6000
Part Name: FRONT LH BRAKE CALIPER GUARD
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
-+
16
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
17
P/N (SKU): 5HYV-082100-7200
Part Name: ABS CONTROLLER
Effective: 2025-04-30
Alternative parts: 5HYV-082100-7201
Specification: null
Price: 237,00 € : 237,00 €
17
P/N (SKU): 5HYV-082100-7201
Part Name: ABS CONTROLLER
Effective: 2025-10-30
Remarks: null
Alternative parts: null
Specification: null
Price: 232,75 € : 232,75 €
18
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 5HYV-0810A0-6000
Part Name: REAR BRAKE PAD ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 29,00 € : 29,00 €
-+
20
P/N (SKU): 5HYV-081050-6000
Part Name: REAR LH E-BRAKE ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 199,00 € : 199,00 €
-+
21
P/N (SKU): 5HYV-081060-6000
Part Name: REAR RH E-PARKING ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 199,00 € : 199,00 €
-+
22
P/N (SKU): 30006-080025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 5HYV-081800-7200
Part Name: MASTER CYLINDER ASSY
Effective: 2025-04-30
Alternative parts: null
Specification: null
Price: 64,41 € : 64,41 €
24
P/N (SKU): 7020-081002
Part Name: PIPE CLIP, MASTER CYLINDER
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 5HYV-080101-6000
Part Name: RESERVOIR PIPE 1
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
26
P/N (SKU): 5HYV-080010-6000
Part Name: HYDRAULIC SENSOR SWITCHASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 24,00 € : 24,00 €
-+
27
P/N (SKU): 5HYV-080150-6000
Part Name: FLUID RESERVOIR ASSY
Effective: 2025-04-30
Alternative parts: null
Specification: null
Price: 33,00 € : 33,00 €
27
P/N (SKU): 5HYV-080150-6001
Part Name: FLUID RESERVOIR ASSY
Effective: 2025-10-30
Remarks: null
Alternative parts: null
Specification: null
Price: 24,40 € : 24,40 €
28
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 5UWB-030110
Part Name: OIL CUP BRACKET
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 15,00 € : 15,00 €
30
P/N (SKU): 5HYV-082100-6000
Part Name: BRAKE PEDAL ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 29,00 € : 29,00 €
31
P/N (SKU): 30006-080020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 5HYV-159010-6000
Part Name: EPB CONTROLLER
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 785,00 € : 785,00 €
-+
33
P/N (SKU): 5HYV-082600-7200
Part Name: ABS FRONT LH BRAKE INLET PIPE ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 77,00 € : 77,00 €
34
P/N (SKU): 5HYV-082700-7200
Part Name: ABS FRONT LH BRAKE OUTLET PIPE ASSY
Effective: 2025-04-30
Alternative parts: null
Specification: null
Price: 77,00 € : 77,00 €
34
P/N (SKU): 5HYV-082700-7201
Part Name: ABS FRONT LH BRAKE OUTLET PIPE ASSY
Effective: 2025-10-30
Remarks: null
Alternative parts: null
Specification: null
Price: 75,60 € : 75,60 €
35
P/N (SKU): 5HYV-082800-7200
Part Name: ABS REAR LH BRAKE OUTLET PIPE ASSY
Effective: 2025-04-30
Alternative parts: null
Specification: null
Price: 77,00 € : 77,00 €
35
P/N (SKU): 5HYV-082800-7201
Part Name: ABS REAR LH BRAKE OUTLET PIPE ASSY
Effective: 2025-10-30
Remarks: null
Alternative parts: null
Specification: null
Price: 75,60 € : 75,60 €
36
P/N (SKU): 5HYV-082900-7200
Part Name: ABS REAR RH BRAKE OUTLET PIPE ASSY
Effective: 2025-04-30
Alternative parts: null
Specification: null
Price: 71,00 € : 71,00 €
36
P/N (SKU): 5HYV-082900-7201
Part Name: ABS REAR RH BRAKE OUTLET PIPE ASSY
Effective: 2025-10-30
Remarks: null
Alternative parts: null
Specification: null
Price: 69,60 € : 69,60 €
37
P/N (SKU): 5HYV-082200-7200
Part Name: ABS FRONT BRAKE INLET PIPE ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 61,00 € : 61,00 €
38
P/N (SKU): 5HYV-082300-7200
Part Name: ABS REAR BRAKE INLET PIPE ASSY
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 61,00 € : 61,00 €
39
P/N (SKU): 5HYV-08000H-7200
Part Name: ABS CONTROLLER BRACKET
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
40
P/N (SKU): 5HYV-08000J-7200
Part Name: ABS BRACKET
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
41
P/N (SKU): 6L30-080008
Part Name: DAMPING RUBBER SLEEVE, MSC CONTROLLER
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
42
P/N (SKU): 9AWV-080003-9500
Part Name: FRONT SPEED SENSOR
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 21,00 € : 21,00 €
-+
43
P/N (SKU): 9AWV-080004-9501
Part Name: REAR LH SPEED SENSOR
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
-+
44
P/N (SKU): 9AWV-080005-9501
Part Name: REAR RH SPEED SENSOR
Effective: 2025-04-30
Remarks: null
Alternative parts: null
Specification: null
Price: 17,00 € : 17,00 €
-+
45
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-04-30
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
