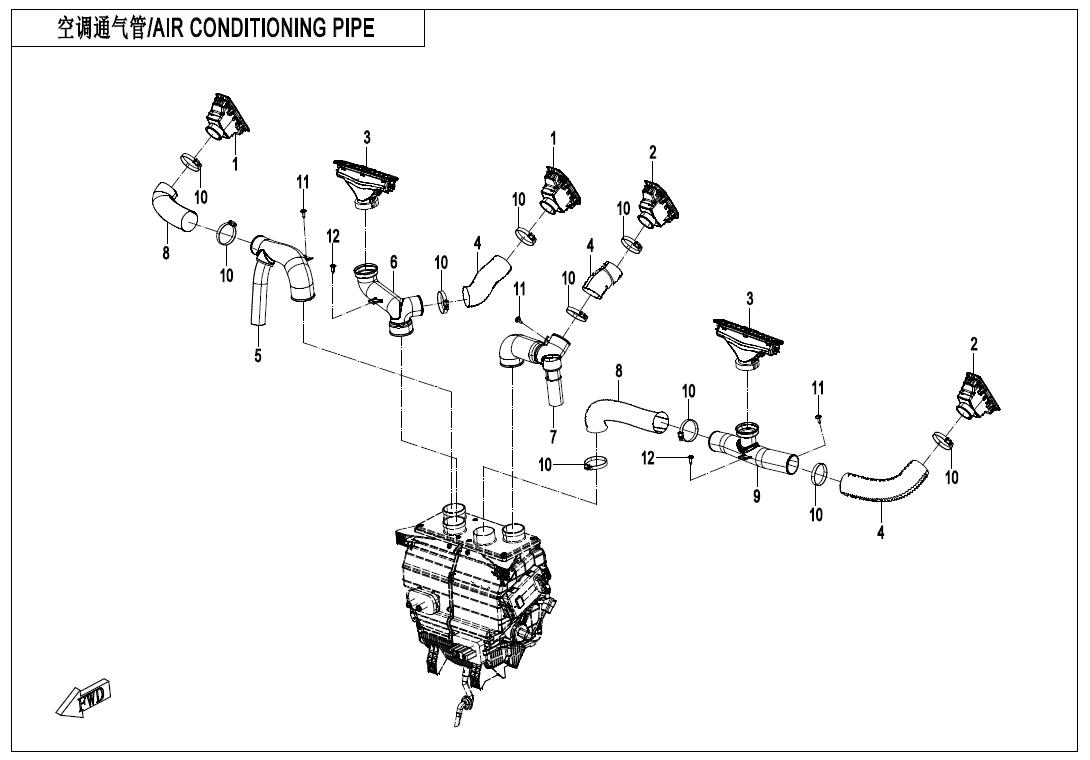

AIR CONDITIONING PIPE - F35-2

AIR CONDITIONING PIPE - F35-2

No.

1
P/N (SKU): 5HYV-353530-9001-0HQ00
Part Name: RH TUYERE
Effective: 2026-05-18
Remarks: null
Alternative parts: 5HYV-353530-9002-0HQ00
Specification: MATTE IRON GREY
Price: 30,00 € : 30,00 €
1
P/N (SKU): 5HYV-353530-9002-0HQ00
Part Name: RH TUYERE
Effective: 2026-05-18
Remarks: null
Alternative parts: null
Specification: MATTE IRON GREY
Price: 0,00 € : 0,00 €
2
P/N (SKU): 5HYV-353510-9001-0HQ00
Part Name: LH TUYERE
Effective: 2026-05-18
Remarks: null
Alternative parts: 5HYV-353510-9002-0HQ00
Specification: MATTE IRON GREY
Price: 30,00 € : 30,00 €
2
P/N (SKU): 5HYV-353510-9002-0HQ00
Part Name: LH TUYERE
Effective: 2026-05-18
Remarks: null
Alternative parts: null
Specification: MATTE IRON GREY
Price: 0,00 € : 0,00 €
3
P/N (SKU): 5HYV-353520-9001
Part Name: DEFROSTING VENTILATION ORIFICE
Effective: 2026-05-18
Alternative parts: 5HYV-353520-9003
Specification: null
Price: 24,80 € : 24,80 €
3
P/N (SKU): 5HYV-353520-9003
Part Name: DEFROSTING VENTILATION ORIFICE
Effective: 2026-07-03
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
4
P/N (SKU): 5HYV-353401-9000
Part Name: LH AIR DUCT 1
Effective: 2026-05-18
Remarks: null
Alternative parts: null
Specification: null
Price: 9,90 € : 9,90 €
5
P/N (SKU): 5HYV-353407-9000
Part Name: RH AIR DUCT 2
Effective: 2026-05-18
Remarks: null
Alternative parts: null
Specification: null
Price: 11,49 € : 11,49 €
6
P/N (SKU): 5HYV-353409-9000
Part Name: MIDDLE RH AIR DUCT 2
Effective: 2026-05-18
Remarks: null
Alternative parts: null
Specification: null
Price: 11,49 € : 11,49 €
7
P/N (SKU): 5HYV-353405-9000
Part Name: MIDDLE LH AIR DUCT 2
Effective: 2026-05-18
Remarks: null
Alternative parts: null
Specification: null
Price: 11,49 € : 11,49 €
8
P/N (SKU): 5HYV-353403-9000
Part Name: LH AIR DUCT 3
Effective: 2026-05-18
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
9
P/N (SKU): 5HYV-353402-9000
Part Name: LH AIR DUCT 2
Effective: 2026-05-18
Remarks: null
Alternative parts: null
Specification: null
Price: 11,49 € : 11,49 €
10
P/N (SKU): 9010-020007
Part Name: A-TYPE SCREW CLAMP
Effective: 2026-05-18
Remarks: null
Alternative parts: null
Specification: 50-70
Price: 3,00 € : 3,00 €
-+
11
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2026-05-18
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 5BWV-040016-5000
Part Name: ST4.8×16 INNER HEX SELF-TAPPING SCREW
Effective: 2026-05-18
Remarks: null
Alternative parts: 5BWV-040015-5000
Specification: ST4.8x16
Price: 1,50 € : 1,50 €
-+
