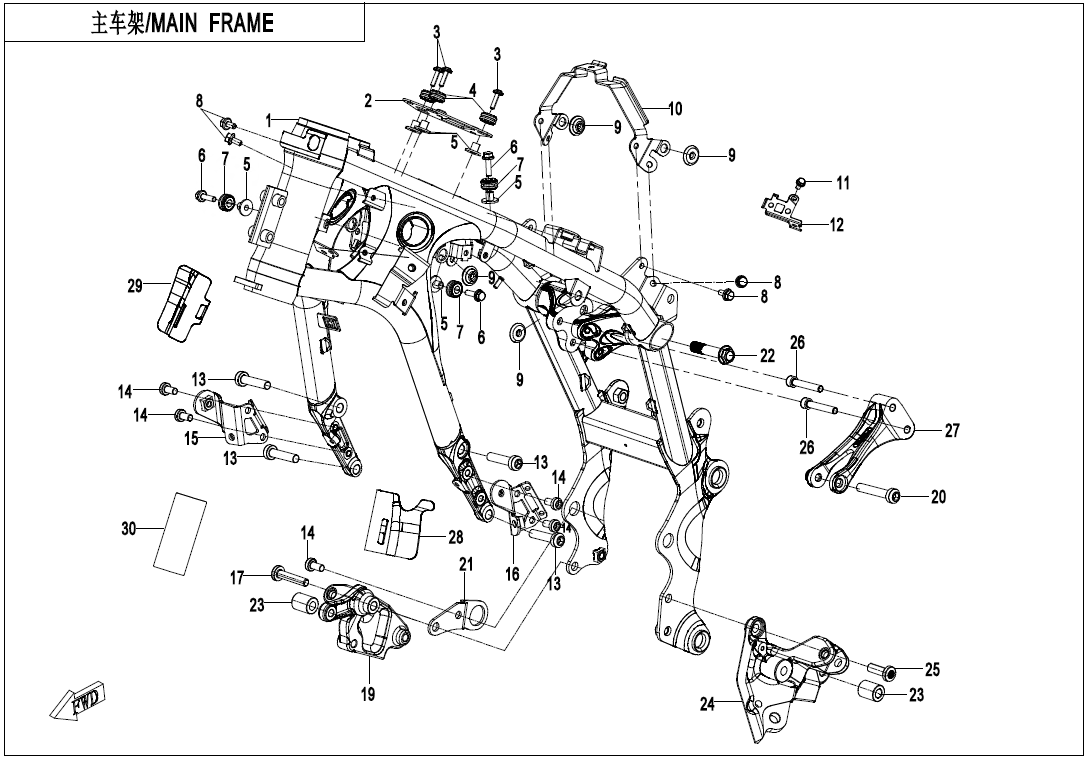

MAIN FRAME - F03-1

MAIN FRAME - F03-1

No.

1
P/N (SKU): 6WXV-033000-2000-0BP00
Part Name: MAIN FRAME ASSY
Effective: 2025-11-04
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 406,74 € : 406,74 €
-+
2
P/N (SKU): 6WWV-030001-5000
Part Name: BRACKET, 6D SENSOR
Effective: 2025-11-04
Alternative parts:
Price: 4,00 € : 4,00 €
-+
3
P/N (SKU): 6WWV-046902-5000
Part Name: INNER HEX SCREW M6x20
Effective: 2025-11-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 6WWV-030019-5000
Part Name: RUBBER BUSHING
Effective: 2025-11-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 9060-180029
Part Name: RADIATOR SLEEVE TUBE
Effective: 2025-11-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 30006-060022810
Part Name: BOLT
Effective: 2025-11-04
Alternative parts:
Specification: M6×22
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 6KM#-181001-8001
Part Name: DAMPER RUBBER MAT
Effective: 2025-11-04
Alternative parts:
Specification: "
Price: 3,00 € : 3,00 €
-+
8
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2025-11-04
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
9
P/N (SKU): 6KMV-041112-3000
Part Name: M6 RUBBER SLEEVE
Effective: 2025-11-04
Alternative parts:
Price: 3,50 € : 3,50 €
-+
10
P/N (SKU): 6WWV-030110-8002
Part Name: SEAT FRONT BRACKET
Effective: 2025-11-04
Alternative parts:
Price: 4,50 € : 4,50 €
-+
11
P/N (SKU): 6WWV-046702-5000
Part Name: INNER HEX SCREW M6x12
Effective: 2025-11-04
Alternative parts: 6WWV-046802-5000
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 6WWV-030170-8000
Part Name: BRACKET, MAGNETIC VALVE
Effective: 2025-11-04
Alternative parts:
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 6WWV-030011-5000
Part Name: INNER HEX SCREW M10x45
Effective: 2025-11-04
Alternative parts:
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 6WWV-030013-5000
Part Name: SCREW M8X16
Effective: 2025-11-04
Alternative parts:
Specification: M8X16
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 6WWV-000120-8001
Part Name: FRONT PANEL BRACKET RH SEAT
Effective: 2025-11-04
Alternative parts:
Price: 3,60 € : 3,60 €
-+
16
P/N (SKU): 6WWV-000110-8000
Part Name: FRONT PANEL BRACKET LH SEAT
Effective: 2025-11-04
Alternative parts:
Price: 4,00 € : 4,00 €
-+
17
P/N (SKU): C0000351004500S
Part Name: AH COLLAR SCREW M10X45 T45 SS
Effective: 2025-11-04
Alternative parts:
Price: 0,00 € : 0,00 €
-+
18
P/N (SKU): 30006-080025810
Part Name: BOLT
Effective: 2025-11-04
Alternative parts:
Specification: M8×25
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 6WWV-030020-8000
Part Name: FRONT FOOTREST RH BRACKET
Effective: 2025-11-04
Alternative parts:
Price: 33,00 € : 33,00 €
-+
20
P/N (SKU): 6L30-030091
Part Name: BOLT M10x60
Effective: 2025-11-04
Alternative parts:
Specification: M10x60
Price: 2,50 € : 2,50 €
-+
21
P/N (SKU): 6WXV-030010-2000
Part Name: MUFFLER RH BRACKET
Effective: 2025-11-04
Alternative parts:
Price: 6,00 € : 6,00 €
-+
22
P/N (SKU): 6WWV-030018-5000
Part Name: BOLT M12x60
Effective: 2025-11-04
Alternative parts:
Price: 3,50 € : 3,50 €
-+
23
P/N (SKU): C0800001002500
Part Name: BUSHING 10.4X20X25
Effective: 2025-11-04
Alternative parts:
Price: 0,00 € : 0,00 €
-+
24
P/N (SKU): 6WWV-030010-8000
Part Name: FRONT FOOTREST LH BRACKET
Effective: 2025-11-04
Alternative parts:
Price: 42,00 € : 42,00 €
-+
25
P/N (SKU): 6WWV-030017-5000
Part Name: INNER HEX SCREW M10x30
Effective: 2025-11-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 30102-080050110
Part Name: INNER HEX SCREW M8x50
Effective: 2025-11-04
Alternative parts: 30102-080050810
Price: 2,00 € : 2,00 €
27
P/N (SKU): 6WXV-030001-2000
Part Name: ENGINE HANGER
Effective: 2025-11-04
Alternative parts:
Price: 30,00 € : 30,00 €
-+
28
P/N (SKU): 6WXV-041101-2000
Part Name: FRAME LOWER LH HEAT INSULATION MAT
Effective: 2026-01-21
Alternative parts: 6WXV-041101-2001
Price: 10,45 € : 10,45 €
28
P/N (SKU): 6WXV-041101-2001
Part Name: FRAME LOWER LH HEAT INSULATION MAT
Effective: 2026-02-25
Alternative parts:
Price: 10,45 € : 10,45 €
-+
29
P/N (SKU): 6WXV-041102-2000
Part Name: FRAME LOWER RH HEAT INSULATION MAT
Effective: 2026-01-21
Alternative parts: 6WXV-041102-2001
Price: 10,45 € : 10,45 €
29
P/N (SKU): 6WXV-041102-2001
Part Name: FRAME LOWER RH HEAT INSULATION MAT
Effective: 2026-02-25
Alternative parts:
Price: 10,45 € : 10,45 €
-+
30
P/N (SKU): 6WXV-190011-2200
Part Name: VIN PLATE
Effective: 2025-12-03
Alternative parts:
Price: 0,00 € : 0,00 €
-+
