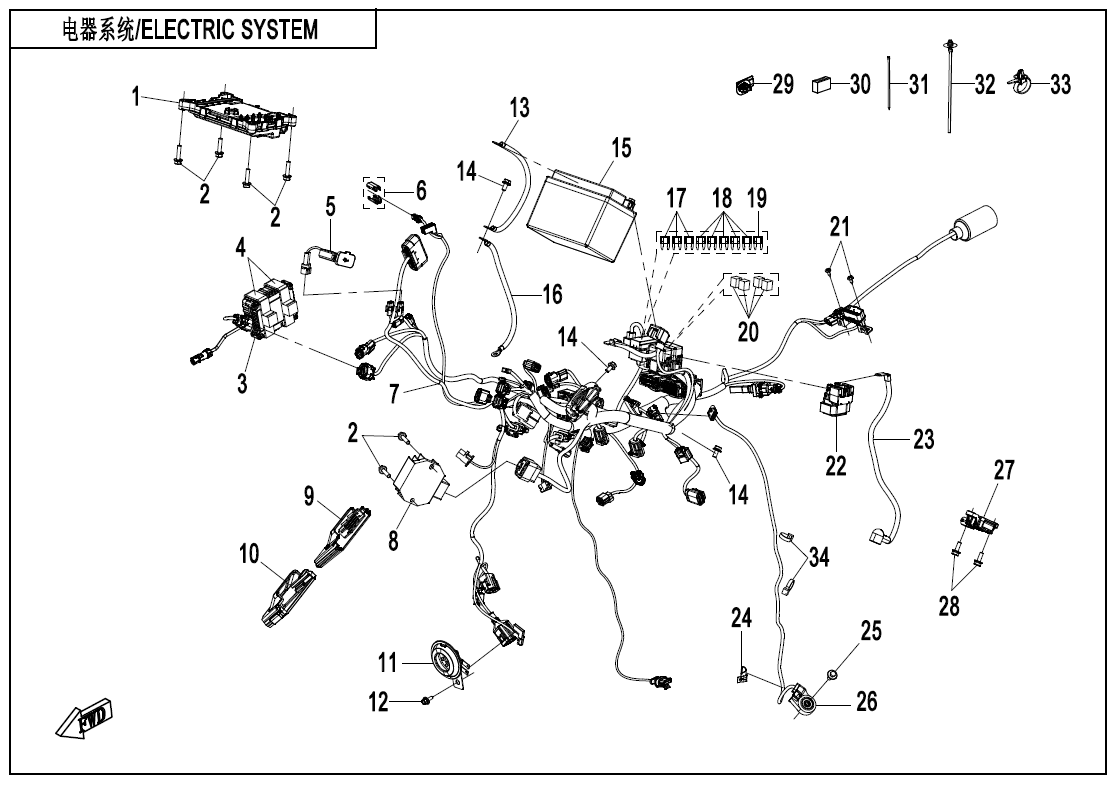

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

01
P/N (SKU): 6WXV-001000-2200
Part Name: ECM ASSY
Effective: 2025-12-22
Alternative parts:
Price: 212,75 € : 212,75 €
-+
02
P/N (SKU): 30006-060025810
Part Name: BOLT
Effective: 2025-11-04
Alternative parts:
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2025-11-04
Alternative parts:
Specification: @Eurasia and Africa and Australia except Turkey,BN,IN,BD,MN,NP
Price: 420,00 € : 420,00 €
-+
03
P/N (SKU): SN1V-691100-1301-11
Part Name: T-BOX
Effective: 2025-11-05
Alternative parts:
Specification: North Amrica
Price: 420,00 € : 420,00 €
-+
03
P/N (SKU): SN1V-691100-1401-11
Part Name: T-BOX
Effective: 2025-11-05
Alternative parts:
Specification: AllyTech@South America except for Brazil
Price: 420,00 € : 420,00 €
-+
03
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2025-11-05
Alternative parts:
Specification: Turkey
Price: 420,00 € : 420,00 €
-+
03
P/N (SKU): SN1V-691100-1601-11
Part Name: T-BOX
Effective: 2025-11-05
Alternative parts:
Specification: Brazil
Price: 420,00 € : 420,00 €
-+
04
P/N (SKU): 6KMV-150901-B002
Part Name: T-BOX RUBBER RING
Effective: 2025-11-04
Alternative parts:
Price: 2,00 € : 2,00 €
-+
05
P/N (SKU): 6KWV-151500-1000
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2025-11-04
Alternative parts:
Price: 30,00 € : 30,00 €
-+
06
P/N (SKU): CFCV-156001-2000-M1
Part Name: CABLE PROTECTOR
Effective: 2025-11-04
Alternative parts:
Price: 2,00 € : 2,00 €
-+
07
P/N (SKU): 6WXV-150100-2200
Part Name: MAIN CABLE
Effective: 2025-11-05
Alternative parts: 6WXV-150100-2201
Price: 352,00 € : 352,00 €
07
P/N (SKU): 6WXV-150100-2201
Part Name: MAIN HARNESS
Effective: 2026-01-23
Alternative parts: 6WXV-150100-2202
Price: 332,51 € : 332,51 €
07
P/N (SKU): 6WXV-150100-2202
Part Name: MAIN HARNESS
Effective: 2026-02-25
Alternative parts:
Price: 332,51 € : 332,51 €
-+
08
P/N (SKU): K-60311034100
Part Name: REGULATOR
Effective: 2025-11-04
Alternative parts:
Price: 0,00 € : 0,00 €
-+
08
P/N (SKU): 6WWV-177000-5000-M1
Part Name: REGULATOR
Effective: 2025-12-03
Alternative parts: K-60311034100/6WWV-151000-5A00
Price: 129,00 € : 129,00 €
-+
09
P/N (SKU): 6WWV-151900-8000
Part Name: VEHICLE CONTROL UNIT
Effective: 2025-11-04
Alternative parts:
Price: 124,00 € : 124,00 €
-+
10
P/N (SKU): 6WWV-150420-5000-10
Part Name: VEHICLE CONTROL UNIT BUSHING
Effective: 2025-11-04
Alternative parts:
Price: 6,50 € : 6,50 €
-+
11
P/N (SKU): 6FIV-150600-7000
Part Name: HORN
Effective: 2025-11-04
Alternative parts:
Price: 11,00 € : 11,00 €
-+
12
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2025-11-04
Alternative parts:
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 6WWV-150400-8000
Part Name: BATTERY NEGATIVE WIRE
Effective: 2025-11-04
Alternative parts:
Price: 11,00 € : 11,00 €
-+
14
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2025-11-04
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
15
P/N (SKU): 6GUV-151600-5600-M1
Part Name: BATTERY
Effective: 2025-11-04
Alternative parts:
Price: 78,80 € : 78,80 €
-+
16
P/N (SKU): 6WWV-150300-8000
Part Name: STARTER MOTOR NEGATIVE CABLE
Effective: 2025-11-04
Alternative parts:
Price: 8,50 € : 8,50 €
-+
17
P/N (SKU): 806A-151302
Part Name: FUSE 10A
Effective: 2025-11-04
Alternative parts:
Specification: 10A
Price: 2,50 € : 2,50 €
-+
18
P/N (SKU): 806A-151305
Part Name: FUSE 15A
Effective: 2025-11-04
Alternative parts:
Specification: 15A
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2025-11-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 5BY4-150330
Part Name: AUXILIARY RELAY
Effective: 2025-11-04
Alternative parts:
Price: 7,50 € : 7,50 €
-+
21
P/N (SKU): 30118-480130010
Part Name: SELF-TAPPING SCREW
Effective: 2025-11-04
Alternative parts:
Specification: ST4.8x13@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 6AQV-150510-6000
Part Name: STARTER RELAY
Effective: 2025-11-04
Alternative parts:
Price: 19,00 € : 19,00 €
-+
23
P/N (SKU): 6WWV-150200-8000
Part Name: STARTER MOTOR POSITIVE CABLE
Effective: 2025-11-04
Alternative parts:
Price: 15,00 € : 15,00 €
-+
24
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2025-11-04
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 8010-090005
Part Name: BOLT M6x16
Effective: 2025-11-04
Alternative parts:
Specification: M6x16
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 6WWV-151200-5000
Part Name: SIDE STAND SWITCH
Effective: 2025-11-04
Alternative parts: 6KWV-151200-1000
Price: 15,00 € : 15,00 €
-+
27
P/N (SKU): 6L30-080040
Part Name: 6D SENSOR
Effective: 2025-11-04
Alternative parts:
Price: 333,00 € : 333,00 €
-+
28
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2025-11-04
Alternative parts:
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 6GU#-150001-6000-M1
Part Name: CLASP
Effective: 2025-11-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 6100-150500
Part Name: RUBBER SLEEVE, FLASHER
Effective: 2025-11-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2025-11-04
Alternative parts:
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2025-11-04
Alternative parts:
Price: 1,50 € : 1,50 €
-+
33
P/N (SKU): CFCV-BBC001-2000-M1
Part Name: TIE BAND
Effective: 2025-11-04
Alternative parts:
Price: 2,00 € : 2,00 €
-+
34
P/N (SKU): 6L30-150003
Part Name: TIE BAND
Effective: 2025-11-04
Alternative parts:
Specification: 2.5×95
Price: 1,50 € : 1,50 €
-+
