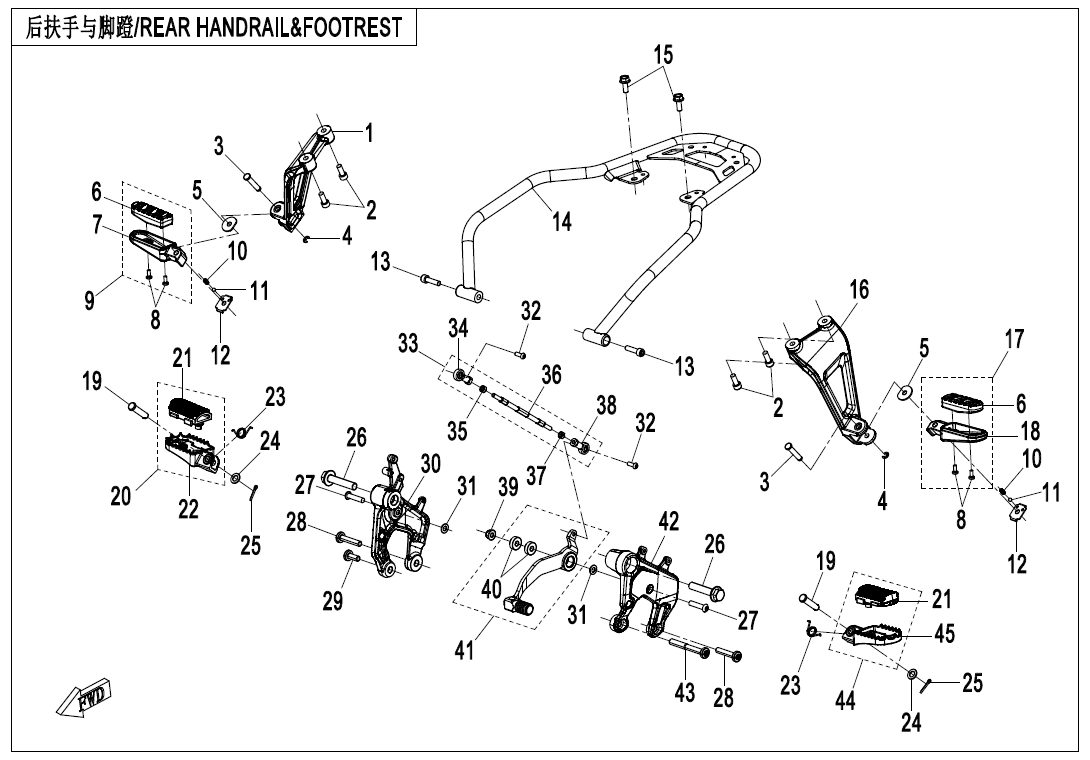

REAR HANDRAIL@^FOOTREST - F14

REAR HANDRAIL@^FOOTREST - F14

No.

01
P/N (SKU): 6WWV-140002-5000
Part Name: REAR RH FOOTREST BRACKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 89,00 € : 89,00 €
-+
02
P/N (SKU): 30102-080020810
Part Name: SCREW
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M8x20@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): A000-140142
Part Name: PIN SHAFT 8
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: Dia 8
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 30802-00603
Part Name: SPLIT WASHER 6
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: GB/T896_6
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 6GU#-140080-6000
Part Name: REAR FOOTREST RUBBER ASSY
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
07
P/N (SKU): 6GU#-140051-6000-0BP00
Part Name: REAR RH FOOTREST SEAT
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 16,00 € : 16,00 €
-+
08
P/N (SKU): 30105-050014470
Part Name: SCREW
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M5×14
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 6GU#-1400B0-6000-0BP00
Part Name: RUBBER, RH REAR FOOTREST BOARD
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 26,00 € : 26,00 €
-+
10
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2025-11-25
Remarks: null
Alternative parts: 6HVV-140006-1000
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 30102-080030810
Part Name: SCREW
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M8×30
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6WWV-140100-8001-0VX00
Part Name: REAR ARMREST ASSY
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: ELECTRO SILVER
Price: 0,00 € : 0,00 €
15
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 6WWV-140001-5000
Part Name: REAR LH FOOTREST BRACKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 85,00 € : 85,00 €
-+
17
P/N (SKU): 6GU#-1400A0-6000-0BP00
Part Name: RUBBER, LH REAR FOOTREST BOARD
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 26,00 € : 26,00 €
-+
18
P/N (SKU): 6GU#-140041-6000-0BP00
Part Name: REAR LH FOOTREST SEAT
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 18,00 € : 18,00 €
-+
19
P/N (SKU): 6WWV-140141-5000
Part Name: PIN SHAFT
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 6AQV-140900-6001
Part Name: FRONT RH FOOTREST SEAT ASSY
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 30,00 € : 30,00 €
21
P/N (SKU): 6AQV-140810-6000
Part Name: FRONT FOOTREST SEAT RUBBER
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
22
P/N (SKU): 6AQV-140920-6001
Part Name: FRONT RH FOOTREST SEAT
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 28,00 € : 28,00 €
23
P/N (SKU): 6L3V-140103-4200
Part Name: SPRING
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
24
P/N (SKU): 30300-100112
Part Name: WASHER
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: φ10
Price: 1,50 € : 1,50 €
25
P/N (SKU): 30903-0322210
Part Name: COTTER PIN
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 6WWV-030018-5000
Part Name: BOLT M12x60
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
27
P/N (SKU): 30121-080035860
Part Name: SCREW
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M8x35
Price: 2,00 € : 2,00 €
28
P/N (SKU): C0000351004500S
Part Name: AH COLLAR SCREW M10X45 T45 SS
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
29
P/N (SKU): 6WWV-030016-5001
Part Name: INNER_HEX_SCREW_M10x22
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M10x22
Price: 1,50 € : 1,50 €
30
P/N (SKU): 6WWV-140200-8000
Part Name: BRAKE PEDAL BRACKET ASSY
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 39,00 € : 39,00 €
31
P/N (SKU): 30306-080112
Part Name: WASHER
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: φ8
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 30121-060016700
Part Name: SCREW
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M6x16
Price: 1,50 € : 1,50 €
33
P/N (SKU): 6WWV-140120-5000
Part Name: GEARSHIFT ROD CONNECTING ASSY
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 24,00 € : 24,00 €
-+
34
P/N (SKU): 6GU#-140140-6001
Part Name: BEARING
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 9,00 € : 9,00 €
-+
35
P/N (SKU): 30200-060870
Part Name: NUT
Effective: 2025-11-25
Remarks: null
Alternative parts: 30200-060810
Price: 1,50 € : 1,50 €
36
P/N (SKU): 6WWV-140121-5000
Part Name: CONNECTING ROD
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
37
P/N (SKU): 30200-06087L
Part Name: NUT M6
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
38
P/N (SKU): 6GU#-140160-6001
Part Name: BEARING
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
39
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): 30400-00880
Part Name: BEARING
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: 8x22x7
Price: 3,00 € : 3,00 €
-+
41
P/N (SKU): 6WWV-141030-8003
Part Name: PEDAL ASSY, GEARSHIFT ROD
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 30,00 € : 30,00 €
-+
42
P/N (SKU): 6WWV-140101-8000
Part Name: GEARSHIFT LEVER BRACKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 39,00 € : 39,00 €
43
P/N (SKU): C0000351008000S
Part Name: AH COLLAR SCREW M10X80 T45 SS
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M10x80
Price: 17,00 € : 17,00 €
44
P/N (SKU): 6AQV-140800-6001
Part Name: FRONT LH FOOTREST SEAT ASSY
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 30,00 € : 30,00 €
45
P/N (SKU): 6AQV-140820-6001
Part Name: FRONT LH FOOTREST SEAT
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 28,00 € : 28,00 €
