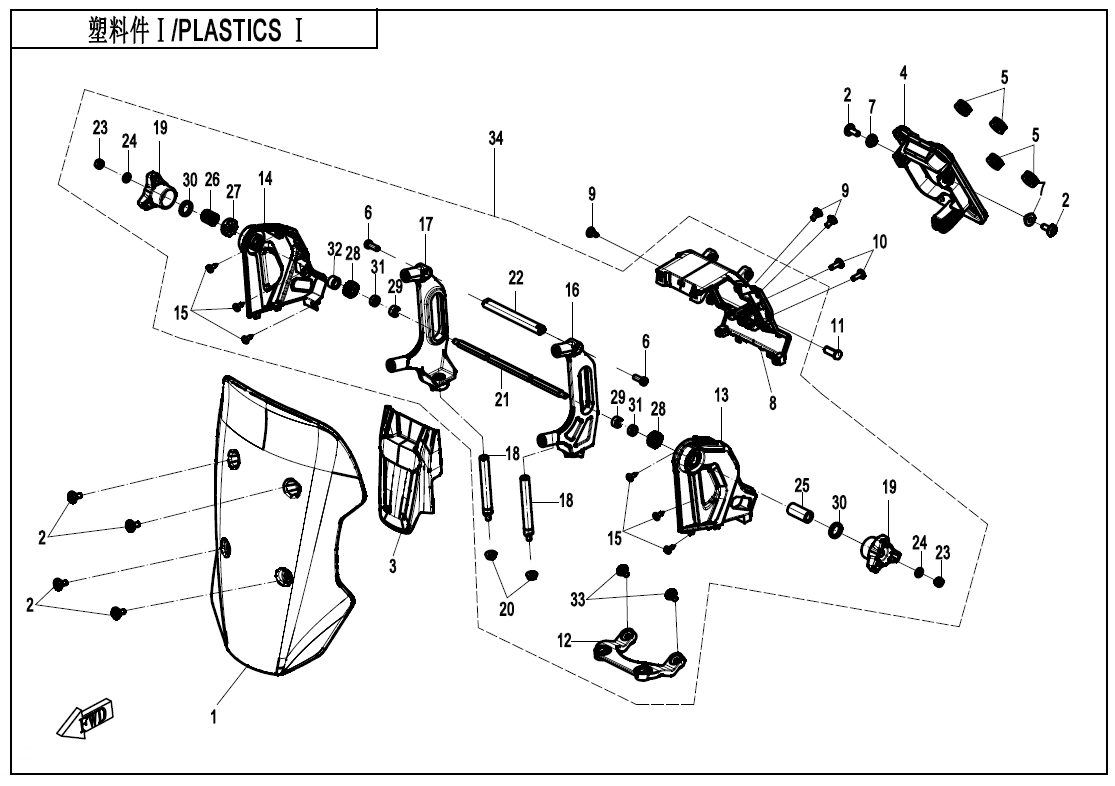

PLASTICS 1 - F04-1

PLASTICS 1 - F04-1

No.

1
P/N (SKU): 6WWV-040101-8001-10
Part Name: WINDSHIELD EU
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 18,00 € : 18,00 €
2
P/N (SKU): 6WWV-046602-5000
Part Name: INNER HEX STEPPED SCREW M6x14
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
3
P/N (SKU): 6WWV-046201-8001
Part Name: DASHBOARD FRONT COVER
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 8,00 € : 8,00 €
4
P/N (SKU): 6WWV-040701-8002
Part Name: DASHBOARD BRACKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 4,80 € : 4,80 €
5
P/N (SKU): 6090-040302
Part Name: CUSHION SLEEVE
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 30102-060016870
Part Name: SCREW
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M6x16@BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 8080-140004
Part Name: REAR RACK LOCK BUSHING
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 6WWV-041601-8001
Part Name: DASHBOARD BRACKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
9
P/N (SKU): 5BWV-040017-5000
Part Name: INNER HEX STEPPED BOLT
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M5x12
Price: 2,00 € : 2,00 €
10
P/N (SKU): 6WWV-047102-5000
Part Name: INNER HEX SCREW M5x14
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
11
P/N (SKU): 6WWV-041602-8000
Part Name: INTERNAL THREAD SHAFT
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
12
P/N (SKU): 6WWV-046501-8000
Part Name: WINDSHIELD GUIDE BRACKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 16,00 € : 16,00 €
13
P/N (SKU): 6WWV-041701-8000
Part Name: DASHBOARD LH BRACKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
14
P/N (SKU): 6WWV-041702-8000
Part Name: DASHBOARD RH BRACKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
15
P/N (SKU): 30110-421130010
Part Name: SELF-TAPPING SCREW
Effective: 2025-11-25
Remarks: null
Alternative parts: 30110-420130070
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
16
P/N (SKU): 6AQV-040115-6001
Part Name: WINDSHIELD LH BRACKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
17
P/N (SKU): 6AQV-040116-6001
Part Name: WINDSHIELD RH BRACKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
18
P/N (SKU): 6AQV-040131-6000
Part Name: WINDSHIELD GUIDE
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
19
P/N (SKU): 6AQV-040106-6000
Part Name: STEERING HANDLE
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
20
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2025-11-25
Remarks: null
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 6AQV-040110-6000
Part Name: STEEL SHAFT
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
22
P/N (SKU): 6AQV-040118-6000
Part Name: ROD
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 5,00 € : 5,00 €
23
P/N (SKU): 30224-060800
Part Name: NUT
Effective: 2025-11-25
Remarks: null
Alternative parts: 30224-060810
Price: 3,50 € : 3,50 €
24
P/N (SKU): 30306-060120
Part Name: PLAIN WASHER A
Effective: 2025-11-25
Remarks: null
Alternative parts: 30306-060112
Specification: null
Price: 1,50 € : 1,50 €
25
P/N (SKU): 6AQV-040107-6000
Part Name: WINDSHIELD SHAFT BUSHING 1
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
26
P/N (SKU): 6AQV-040111-6000
Part Name: WINDSHIELD SPRING
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
27
P/N (SKU): 6AQV-040105-6000
Part Name: WINDSHIELD STOP BLOCK
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
28
P/N (SKU): 6AQV-040103-6000
Part Name: WINDSHIELD GEAR
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
29
P/N (SKU): 6AQV-040102-6000
Part Name: BLOCK
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
30
P/N (SKU): 6AQV-040104-6000
Part Name: WINDSHIELD GASKET
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
31
P/N (SKU): 6AQV-040117-6001
Part Name: WINDSHIELD RUBBER BUSHING
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,50 € : 2,50 €
32
P/N (SKU): 6AQV-040113-6000
Part Name: WINDSHIELD SHAFT BUSHING 2
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
33
P/N (SKU): 6WWV-046701-5000
Part Name: INNER HEX SCREW
Effective: 2025-11-25
Remarks: null
Alternative parts: 6WWV-046702-5000
Specification: M6×12
Price: 1,50 € : 1,50 €
34
P/N (SKU): 6WWV-030600-8001
Part Name: DASHBOARD BRACKET ASSY
Effective: 2026-06-10
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
35
P/N (SKU): 6WWV-040100-8002
Part Name: ADJUSTABLE WINDSHIELD BRACKET ASSY
Effective: 2025-11-25
Alternative parts: null
Specification: null
Price: 77,00 € : 77,00 €
-+
