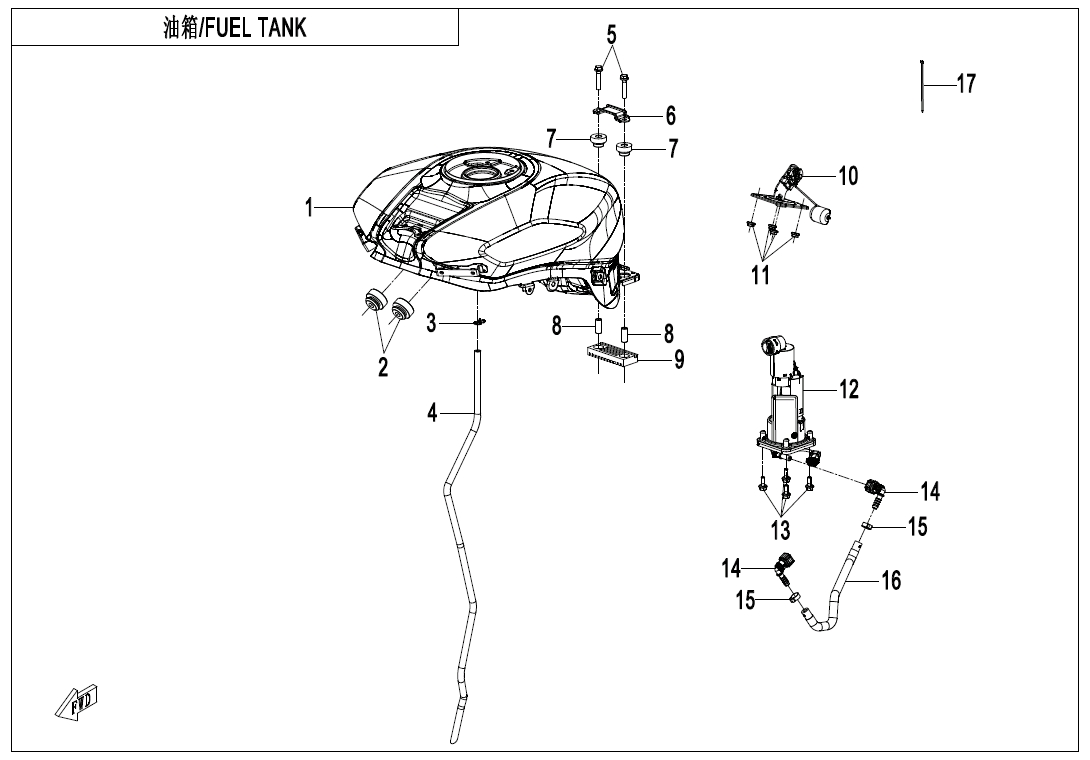

FUEL TANK - F12

FUEL TANK - F12

No.

01
P/N (SKU): 6GUV-122000-3A02-10-0BM00
Part Name: FUEL TANK WITH DECAL ASSY
Effective: 2026-04-24
Specification: NEBULA BLACK
Price: 247,75 € : 247,75 €
-+
01
P/N (SKU): 6GUV-122000-3002-11
Part Name: FUEL TANK WITH DECAL ASSY
Effective: 2025-11-27
Remarks: Glacier White
Price: 236,00 € : 236,00 €
-+
01
P/N (SKU): 6GUV-122000-3002-10
Part Name: FUEL TANK WITH DECAL ASSY
Effective: 2025-11-27
Remarks: Tundra Grey
Price: 240,75 € : 240,75 €
-+
01
P/N (SKU): 6GUV-122000-3A01-10-0BM00
Part Name: FUEL TANK WITH DECAL ASSY
Effective: 2026-03-10
Remarks: champion version
Specification: NEBULA BLACK
Price: 247,75 € : 247,75 €
-+
02
P/N (SKU): 6AQV-120002-7100
Part Name: RUBBER DAMPER
Effective: 2025-11-27
Price: 2,00 € : 2,00 €
-+
03
P/N (SKU): 30601-111010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2025-11-27
Specification: A11@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 6GUV-120001-3000
Part Name: FUEL TANK OVERFLOW PIPE
Effective: 2025-11-27
Price: 2,50 € : 2,50 €
-+
05
P/N (SKU): 30006-060035810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-11-27
Specification: M6×35
Price: 1,50 € : 1,50 €
-+
06
P/N (SKU): 6NQ#-120001-6000
Part Name: SEAT HOOK
Effective: 2025-11-27
Price: 3,00 € : 3,00 €
-+
07
P/N (SKU): 6NQ#-120004-6000
Part Name: RUBBER DAMPER
Effective: 2025-11-27
Price: 2,00 € : 2,00 €
-+
08
P/N (SKU): 6NQ#-120002-6000
Part Name: BUSHING
Effective: 2025-11-27
Price: 2,00 € : 2,00 €
-+
09
P/N (SKU): 6NQ#-120003-6000
Part Name: RUBBER DAMPER BLOCK
Effective: 2025-11-27
Price: 4,50 € : 4,50 €
-+
10
P/N (SKU): 6GUV-170200-5600-M1
Part Name: FUEL LEVEL SENSOR
Effective: 2025-11-27
Alternative parts: 6GUV-170200-5800-M1
Price: 18,00 € : 18,00 €
-+
10
P/N (SKU): 6GUV-170200-5800-M1
Part Name: FUEL LEVEL SENSOR
Effective: 2026-06-30
Remarks: for Brazil
Price: 20,79 € : 20,79 €
-+
11
P/N (SKU): 30202-060110
Part Name: HEXAGON NUTS FLANGE
Effective: 2025-11-27
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMI
Price: 1,50 € : 1,50 €
12
P/N (SKU): 6GUV-150900-5800
Part Name: FUEL PUMP
Effective: 2025-11-27
Price: 81,00 € : 81,00 €
-+
13
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-11-27
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 6090-120210
Part Name: QUICK JOINT
Effective: 2025-11-27
Price: 8,50 € : 8,50 €
-+
15
P/N (SKU): 6070-120400
Part Name: CLAMP(Φ14.5)
Effective: 2025-11-27
Specification: Dia14.5
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 6GUV-120010-5600
Part Name: HIGH-PRESSURE FUEL HOSE ASSY 1
Effective: 2025-11-27
Price: 7,00 € : 7,00 €
-+
17
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2025-11-27
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
