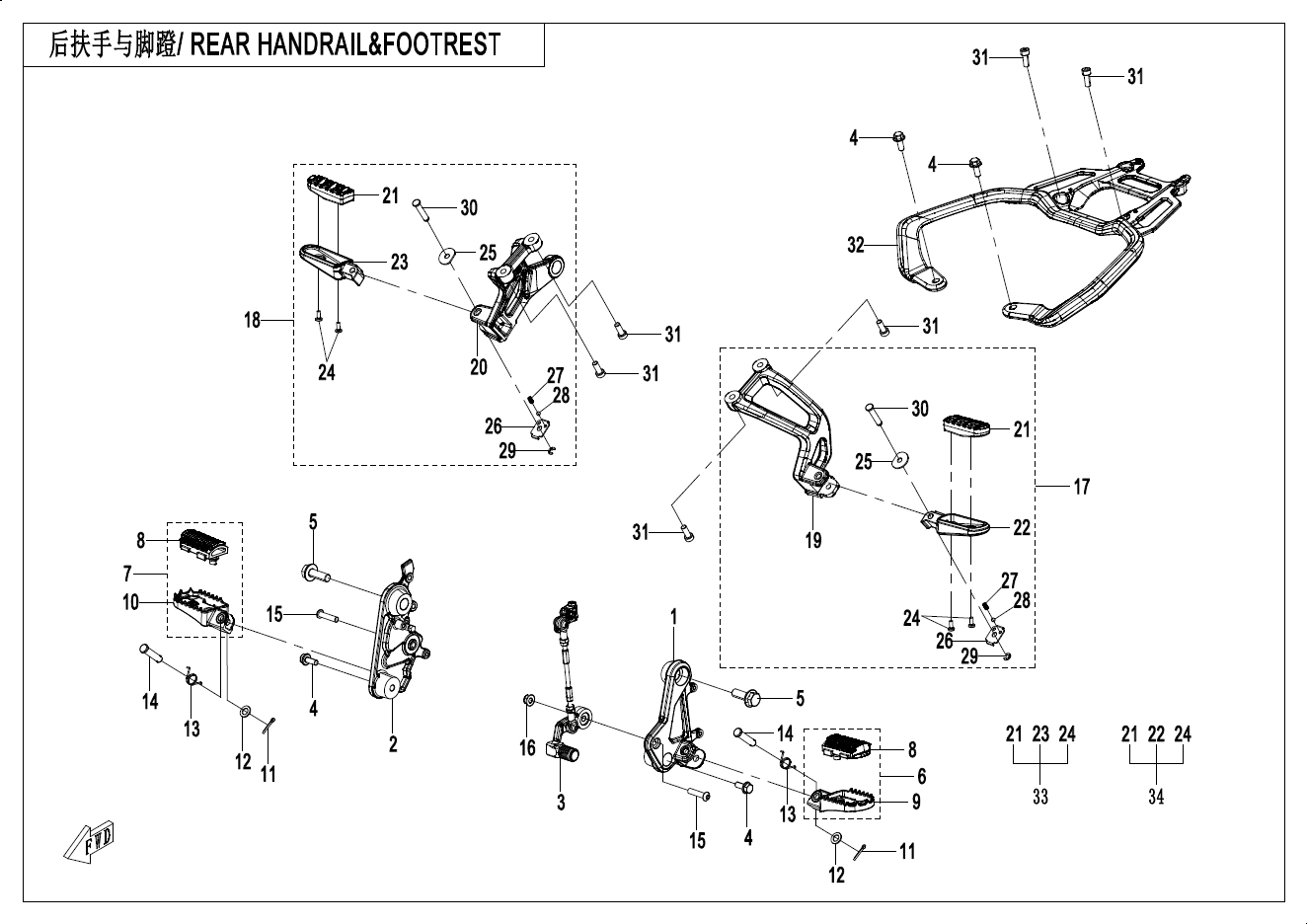

REAR HANDRAIL@^FOOTREST - F14

REAR HANDRAIL@^FOOTREST - F14

No.

1
P/N (SKU): 6AQV-140600-6000
Part Name: FRONT LH FOOTREST BRACKET
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 53,00 € : 53,00 €
-+
2
P/N (SKU): 6AQV-140700-6000
Part Name: FRONT RH FOOTREST BRACKET ASSY
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 60,00 € : 60,00 €
-+
3
P/N (SKU): 6AQV-141000-6001
Part Name: GEARSHIFT LEVER CONNECTING ASSY
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 66,01 € : 66,01 €
4
P/N (SKU): 30006-080020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 0800-014009-00002
Part Name: BOLT
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
-+
6
P/N (SKU): 6AQV-140800-6001
Part Name: FRONT LH FOOTREST SEAT ASSY
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 30,00 € : 30,00 €
7
P/N (SKU): 6AQV-140900-6001
Part Name: FRONT RH FOOTREST SEAT ASSY
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 30,00 € : 30,00 €
8
P/N (SKU): 6AQV-140810-6000
Part Name: FRONT FOOTREST SEAT RUBBER
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
9
P/N (SKU): 6AQV-140820-6001
Part Name: FRONT LH FOOTREST SEAT
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 28,00 € : 28,00 €
10
P/N (SKU): 6AQV-140920-6001
Part Name: FRONT RH FOOTREST SEAT
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 28,00 € : 28,00 €
11
P/N (SKU): 30903-0322210
Part Name: SPLIT PINS
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: φ3.2x22@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30300-100112
Part Name: SMALL WASHERS
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: φ10
Price: 1,50 € : 1,50 €
13
P/N (SKU): 6L3V-140103-4200
Part Name: SPRING
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
14
P/N (SKU): 6WWV-140141-5000
Part Name: PIN SHAFT
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 30121-080035860
Part Name: HEXAGON SOCKET BUTTON HEAD SCREWS
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: M8x35
Price: 2,00 € : 2,00 €
16
P/N (SKU): 30204-080810
Part Name: TORQUE TYPE HEXAGON NUTS WITH FLANGE
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): 6AQV-140200-6000
Part Name: REAR LH FOOTREST ASSY
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 91,00 € : 91,00 €
-+
18
P/N (SKU): 6AQV-140300-6000
Part Name: REAR RH FOOTREST ASSY
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 91,00 € : 91,00 €
-+
19
P/N (SKU): 6AQV-140210-6000
Part Name: REAR LH FOOTREST SEAT
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 52,00 € : 52,00 €
-+
20
P/N (SKU): 6AQV-140310-6000
Part Name: REAR RH FOOTREST SEAT
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: null
Price: 52,00 € : 52,00 €
-+
21
P/N (SKU): 6GU#-140080-6000
Part Name: REAR FOOTREST RUBBER ASSY
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Price: 7,50 € : 7,50 €
-+
22
P/N (SKU): 6GU#-140041-6000-0BP00
Part Name: REAR LH FOOTREST SEAT
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 18,00 € : 18,00 €
-+
23
P/N (SKU): 6GU#-140051-6000-0BP00
Part Name: REAR RH FOOTREST SEAT
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 16,00 € : 16,00 €
-+
24
P/N (SKU): 30105-050014470
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: M5×14
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2025-12-04
Remarks: null
Alternative parts: 6HVV-140006-1000
Price: 2,00 € : 2,00 €
-+
27
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 30802-00603
Part Name: E RINGS
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: GB/T896_6
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): A000-140142
Part Name: PIN SHAFT 8
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: Dia 8
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 30102-080020810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: M8x20@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 6AQV-140100-6000-0VN00
Part Name: REAR ARMREST
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: NEW SILVER WHITE
Price: 80,00 € : 80,00 €
33
P/N (SKU): 6GU#-1400B0-6000-0BP00
Part Name: RUBBER, RH REAR FOOTREST BOARD
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 26,00 € : 26,00 €
-+
34
P/N (SKU): 6GU#-1400A0-6000-0BP00
Part Name: RUBBER, LH REAR FOOTREST BOARD
Effective: 2025-12-04
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 26,00 € : 26,00 €
-+
