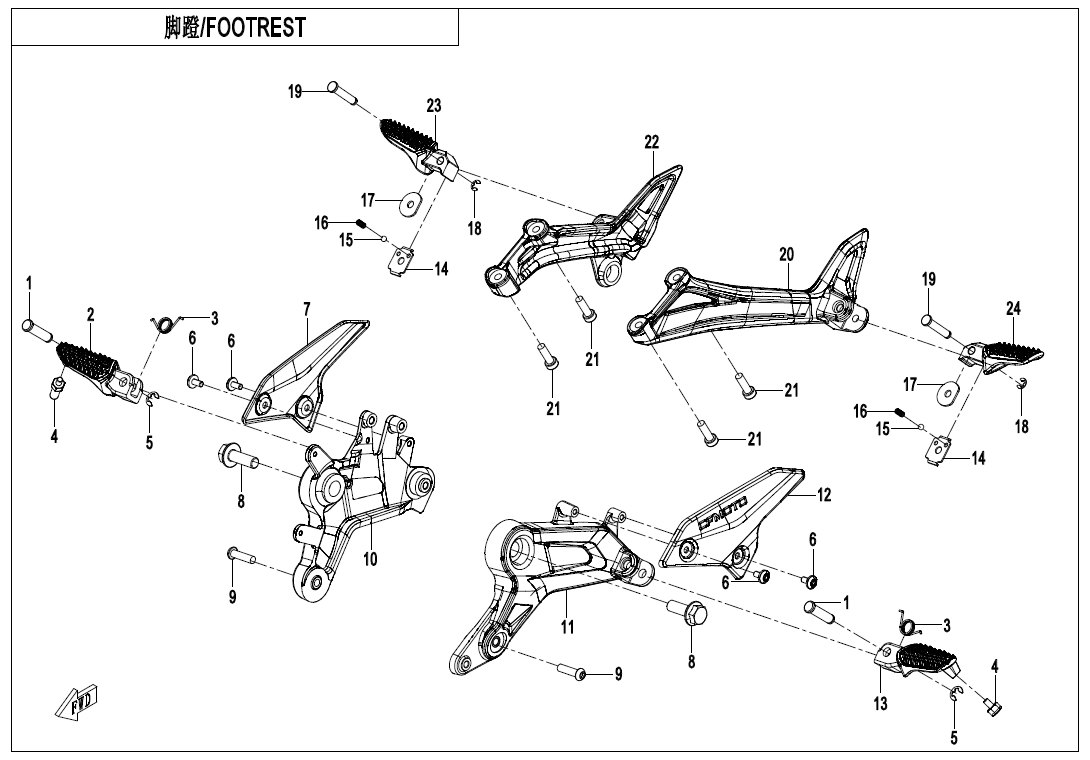

FOOTREST - F14-V1

FOOTREST - F14-V1

No.

01
P/N (SKU): 6AQV-140141-2300
Part Name: PIN SHAFT
Effective: 2025-07-03
Alternative parts: 6AQV-140141-2301
Price: 1,80 € : 1,80 €
02
P/N (SKU): 6AQV-140900-1001-0VR00
Part Name: FRONT RH FOOTREST SEAT
Effective: 2025-07-03
Alternative parts: 6AQV-140900-1002-0VR00
Price: 16,00 € : 16,00 €
-+
03
P/N (SKU): A000-140103-20000
Part Name: SPRING
Effective: 2025-07-03
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 6AQV-140620-1000
Part Name: LIMIT SCREW
Effective: 2025-07-03
Price: 4,00 € : 4,00 €
-+
05
P/N (SKU): 6AQV-140101-2300
Part Name: SPLIT WASHER
Effective: 2025-07-03
Price: 1,80 € : 1,80 €
-+
06
P/N (SKU): 6WWV-046703-5000
Part Name: INNER HEX SCREW M6x12
Effective: 2025-07-03
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 6AQV-140710-1000-0VR00
Part Name: FRONT RH FOOTREST BRACKET PANEL
Effective: 2025-07-03
Specification: ELECTRO SILVER
Price: 19,00 € : 19,00 €
-+
08
P/N (SKU): 0800-014009-00002
Part Name: BOLT
Effective: 2025-07-03
Price: 2,00 € : 2,00 €
-+
09
P/N (SKU): 30006-080030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-07-03
Specification: M8×30
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 6AQV-142700-1000
Part Name: FRONT RH FOOTREST BRACKET ASSY
Effective: 2025-07-03
Alternative parts: 6AQV-142700-1001
Price: 76,00 € : 76,00 €
-+
11
P/N (SKU): 6AQV-142600-1001
Part Name: FRONT LH FOOTREST BRACKET ASSY
Effective: 2025-07-03
Alternative parts: 6AQV-142600-1002
Price: 104,00 € : 104,00 €
-+
12
P/N (SKU): 6AQV-140610-1000-0VR00
Part Name: FRONT LH FOOTREST BRACKET PANEL
Effective: 2025-07-03
Specification: ELECTRO SILVER
Price: 19,00 € : 19,00 €
-+
13
P/N (SKU): 6AQV-140800-1001-0VR00
Part Name: FRONT LH FOOTREST SEAT
Effective: 2025-07-03
Alternative parts: 6AQV-140800-1002-0VR00
Price: 16,00 € : 16,00 €
-+
14
P/N (SKU): A000-140104
Part Name: LOCATING GASKET 1
Effective: 2025-07-03
Alternative parts: 6HVV-140006-1000
Price: 2,00 € : 2,00 €
-+
15
P/N (SKU): 5190-037814
Part Name: STEEL BALL
Effective: 2025-07-03
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 5190-037813
Part Name: SPRING
Effective: 2025-07-03
Price: 1,50 € : 1,50 €
-+
17
P/N (SKU): A000-140106
Part Name: LOCATING GASKET 2
Effective: 2025-07-03
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 30802-00603
Part Name: E RINGS
Effective: 2025-07-03
Specification: GB/T896_6
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): A000-140142
Part Name: PIN SHAFT 8
Effective: 2025-07-03
Specification: Dia 8
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 6AQV-140200-1001-0D300
Part Name: REAR LH FOOTREST BRACKET
Effective: 2025-07-03
Alternative parts: 6AQV-140200-1002-0D300
Specification: PC MIST SILVER BLACK
Price: 75,00 € : 75,00 €
-+
21
P/N (SKU): 30102-080020810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2025-07-03
Specification: M8x20@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 6AQV-140300-1001-0D300
Part Name: REAR RH FOOTREST BRACKET
Effective: 2025-07-03
Alternative parts: 6AQV-140300-1002-0D300
Specification: PC MIST SILVER BLACK
Price: 80,00 € : 80,00 €
-+
23
P/N (SKU): 6AQV-140500-1002-0VR00
Part Name: REAR RH FOOTREST SEAT
Effective: 2025-07-03
Specification: ELECTRO SILVER
Price: 17,10 € : 17,10 €
-+
24
P/N (SKU): 6AQV-140400-1002-0VR00
Part Name: REAR LH FOOTREST SEAT
Effective: 2025-07-03
Specification: ELECTRO SILVER
Price: 17,10 € : 17,10 €
-+
