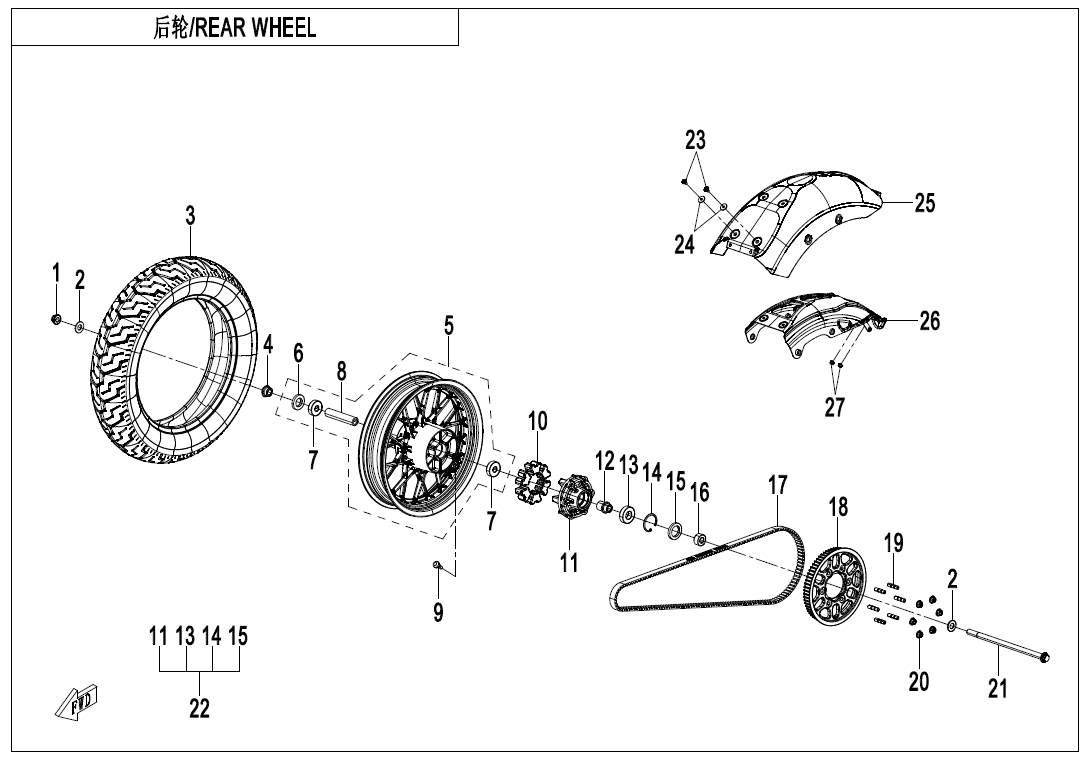

REAR WHEEL - F11

REAR WHEEL - F11

No.

01
P/N (SKU): 6AQV-060006-1000-M1
Part Name: NUT
Effective: 2025-08-21
Alternative parts:
Specification: M16×1.5
Price: 2,50 € : 2,50 €
-+
02
P/N (SKU): 6AQV-110033-7100
Part Name: REAR WHEEL SHAFT PLAIN WASHER
Effective: 2025-08-21
Alternative parts:
Price: 1,50 € : 1,50 €
-+
03
P/N (SKU): 30705SH-160200
Part Name: REAR TIRE
Effective: 2025-08-21
Remarks: NO BRAZIALIAN REGULATION MARKS
Alternative parts:
Price: 152,50 € : 152,50 €
-+
03
P/N (SKU): SH-30705-1606
Part Name: TIRE
Effective: 2025-12-31
Alternative parts:
Price: 0,00 € : 0,00 €
-+
04
P/N (SKU): 6AQV-110004-1000
Part Name: REAR WHEEL RH SHAFT SLEEVE
Effective: 2025-08-21
Alternative parts:
Price: 4,50 € : 4,50 €
-+
05
P/N (SKU): 6AQV-110200-3700-0YH00
Part Name: REAR RIM ASSY
Effective: 2025-08-21
Alternative parts:
Specification: DESERT GOLD
Price: 138,00 € : 138,00 €
-+
05
P/N (SKU): 6AQV-110200-3700-0BV00
Part Name: REAR RIM ASSY
Effective: 2025-08-21
Alternative parts:
Specification: MIDNIGHT BLACK
Price: 136,50 € : 136,50 €
-+
05
P/N (SKU): 6AQV-110200-7100-0BV00
Part Name: REAR RIM ASSEMBLY
Effective: 2026-01-04
Remarks: BRAZIL
Alternative parts:
Specification: MIDNIGHT BLACK
Price: 195,00 € : 195,00 €
-+
06
P/N (SKU): 30500-027800N
Part Name: OIL SEAL
Effective: 2025-08-21
Alternative parts:
Specification: FB27x47x7
Price: 2,50 € : 2,50 €
-+
07
P/N (SKU): 30400-01784
Part Name: BEARING
Effective: 2025-08-21
Alternative parts:
Price: 8,00 € : 8,00 €
-+
08
P/N (SKU): 6AQV-110202-7100
Part Name: REAR RIM MIDDLE SPACER
Effective: 2025-08-21
Alternative parts:
Price: 6,00 € : 6,00 €
-+
09
P/N (SKU): 5190-070030-1000
Part Name: VALVE, INFLATION
Effective: 2025-08-21
Alternative parts:
Price: 6,50 € : 6,50 €
-+
10
P/N (SKU): 6AQV-110004-7100
Part Name: DRIVEN PULLEY SEAT DAMPER
Effective: 2025-08-21
Alternative parts:
Price: 2,50 € : 2,50 €
-+
11
P/N (SKU): 6AQV-110501-7100
Part Name: DRIVEN PULLEY SEAT
Effective: 2025-08-21
Alternative parts: 6AQV-110500-7100
Price: 194,00 € : 194,00 €
12
P/N (SKU): 6AQV-110003-7100
Part Name: DRIVEN PULLEY SEAT SHAFT SLEEVE
Effective: 2025-08-21
Alternative parts:
Price: 4,00 € : 4,00 €
-+
13
P/N (SKU): 30400-02503
Part Name: BEARING
Effective: 2025-08-21
Alternative parts:
Specification: 6205-2RS
Price: 9,50 € : 9,50 €
-+
14
P/N (SKU): 30800-05205
Part Name: CIRCLIP FOR HOLE
Effective: 2025-08-21
Alternative parts:
Specification: 52
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 30501-035800N
Part Name: OIL SEAL
Effective: 2025-08-21
Alternative parts:
Specification: GB9877.1_FB35×52×8
Price: 2,50 € : 2,50 €
-+
16
P/N (SKU): 6AQV-110003-1000
Part Name: REAR WHEEL LH SHAFT SLEEVE
Effective: 2025-08-21
Alternative parts:
Price: 4,50 € : 4,50 €
-+
17
P/N (SKU): 6AQV-110008-7100-M1
Part Name: SYNCHRONOUS BELT
Effective: 2025-08-21
Alternative parts:
Price: 380,00 € : 380,00 €
-+
18
P/N (SKU): 6AQV-110009-7101-M1-0BP00
Part Name: DRIVEN PULLEY
Effective: 2025-08-21
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 162,00 € : 162,00 €
-+
19
P/N (SKU): 6AQV-110034-7100
Part Name: DRIVEN PULLEY SEAT STUD
Effective: 2025-08-21
Alternative parts:
Price: 2,00 € : 2,00 €
-+
20
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2025-08-21
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 6AQV-110001-7100
Part Name: REAR WHEEL SHAFT
Effective: 2025-08-21
Alternative parts:
Price: 19,00 € : 19,00 €
-+
22
P/N (SKU): 6AQV-110500-7100
Part Name: DRIVEN PULLEY SEAT ASSEMBLY
Effective: 2025-08-21
Alternative parts:
Price: 79,00 € : 79,00 €
-+
23
P/N (SKU): 6WWV-046702-5000
Part Name: INNER HEX SCREW M6x12
Effective: 2025-08-21
Alternative parts: 6WWV-046802-5000
Price: 1,50 € : 1,50 €
-+
24
P/N (SKU): 30301-060412
Part Name: WASHER
Effective: 2025-08-21
Alternative parts:
Specification: φ6
Price: 1,50 € : 1,50 €
-+
25
P/N (SKU): 6AQV-110021-3700-0BM00
Part Name: REAR FENDER OUTER PLATE
Effective: 2025-08-21
Alternative parts: 6AQV-110021-3701-0BM00
Specification: NABULA BLACK
Price: 93,30 € : 93,30 €
25
P/N (SKU): 6AQV-110021-3700-0GM00
Part Name: REAR FENDER OUTER PLATE
Effective: 2025-08-21
Alternative parts: 6AQV-110021-3701-0GM00
Price: 85,20 € : 85,20 €
25
P/N (SKU): 6AQV-110021-3701-0GM00
Part Name: REAR FENDER OUTER PLATE
Effective: 2025-11-10
Alternative parts:
Specification: GENTLE GREEN+IVORY WHITE
Price: 82,79 € : 82,79 €
-+
25
P/N (SKU): 6AQV-110021-3701-0BM00
Part Name: REAR FENDER OUTER PLATE
Effective: 2025-11-10
Alternative parts:
Specification: NABULA BLACK
Price: 82,79 € : 82,79 €
-+
25
P/N (SKU): 6AQV-110021-7102-0BM00
Part Name: REAR FENDER OUTER PLATE
Effective: 2026-01-04
Remarks: BRAZIL
Alternative parts:
Specification: NEBULA BLACK
Price: 90,00 € : 90,00 €
-+
26
P/N (SKU): 6AQV-110010-3700
Part Name: REAR FENDER INNER PLATE ASSY
Effective: 2025-08-21
Alternative parts: 6AQV-110010-3701
Price: 69,60 € : 69,60 €
26
P/N (SKU): 6AQV-110010-3701
Part Name: REAR FENDER INNER PLATE ASSY
Effective: 2025-11-10
Alternative parts:
Price: 71,60 € : 71,60 €
-+
26
P/N (SKU): 6AQV-110010-7102
Part Name: REAR FENDER INNER PANEL ASSY
Effective: 2026-01-04
Remarks: BRAZIL
Alternative parts:
Price: 77,00 € : 77,00 €
-+
27
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2025-08-21
Alternative parts:
Specification: M6
Price: 1,50 € : 1,50 €
-+
