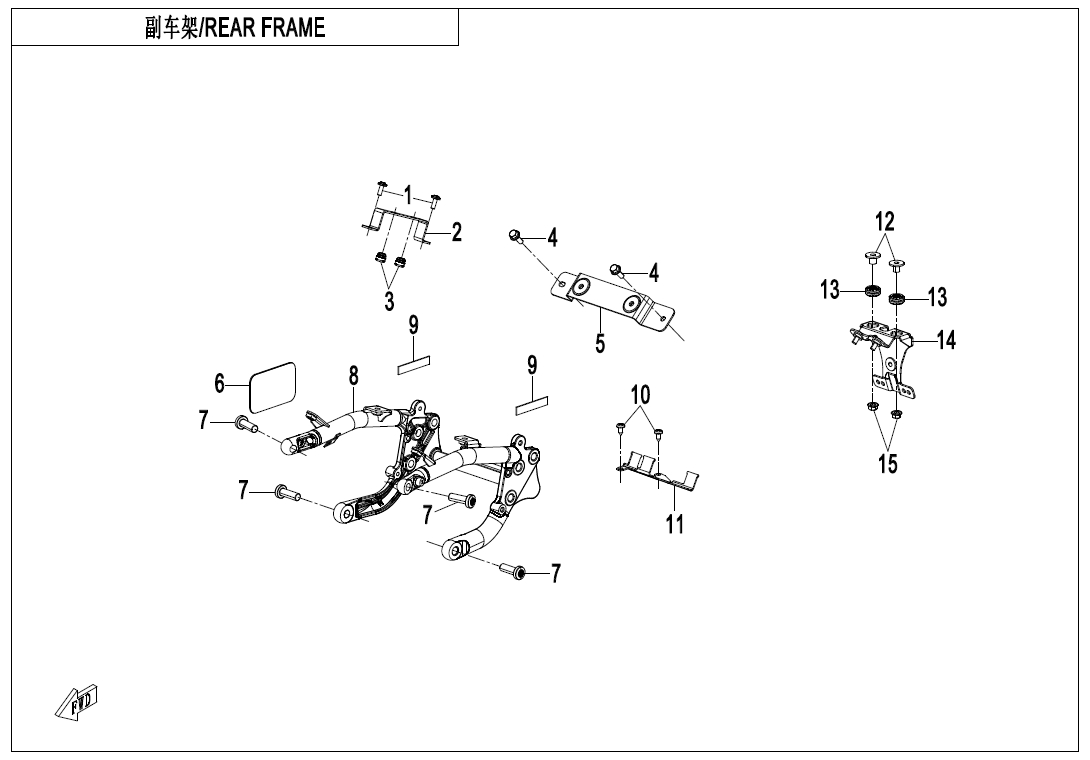

REAR FRAME - F03-2

REAR FRAME - F03-2

No.

01
P/N (SKU): 6WWV-047102-5000
Part Name: INNER HEX SCREW M5x14
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
02
P/N (SKU): 6AQV-030360-7100
Part Name: BATTERY PRESS PLATE
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
03
P/N (SKU): 6WWV-045801-5000
Part Name: RUBBER
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
04
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 6AQV-030120-7100
Part Name: "SEAT SUPPORT PLATE
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: "
Price: 3,50 € : 3,50 €
06
P/N (SKU): 6AQV-041116-1000
Part Name: 3M ADHESIVE TAPE
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
07
P/N (SKU): 6WWV-030017-5000
Part Name: INNER HEX SCREW M10x30
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
08
P/N (SKU): 6AQV-032000-7101-0BP00
Part Name: SUB FRAME ASSY
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 132,00 € : 132,00 €
09
P/N (SKU): 6AQV-110031-7100
Part Name: FENDER RUBBER 1
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
10
P/N (SKU): 30110-421130010
Part Name: SELF-TAPPING SCREW
Effective: 2025-08-21
Remarks: null
Alternative parts: 30110-420130070
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
11
P/N (SKU): 6AQV-030260-7100
Part Name: ECU BRACKET
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 3,50 € : 3,50 €
12
P/N (SKU): 9060-180029
Part Name: RADIATOR SLEEVE TUBE
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
13
P/N (SKU): 6WWV-030019-5000
Part Name: RUBBER BUSHING
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
14
P/N (SKU): 6AQV-030370-7100
Part Name: TAIL LIGHT BRACKET
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: null
Price: 9,00 € : 9,00 €
15
P/N (SKU): 30204-060810
Part Name: NUT
Effective: 2025-08-21
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
