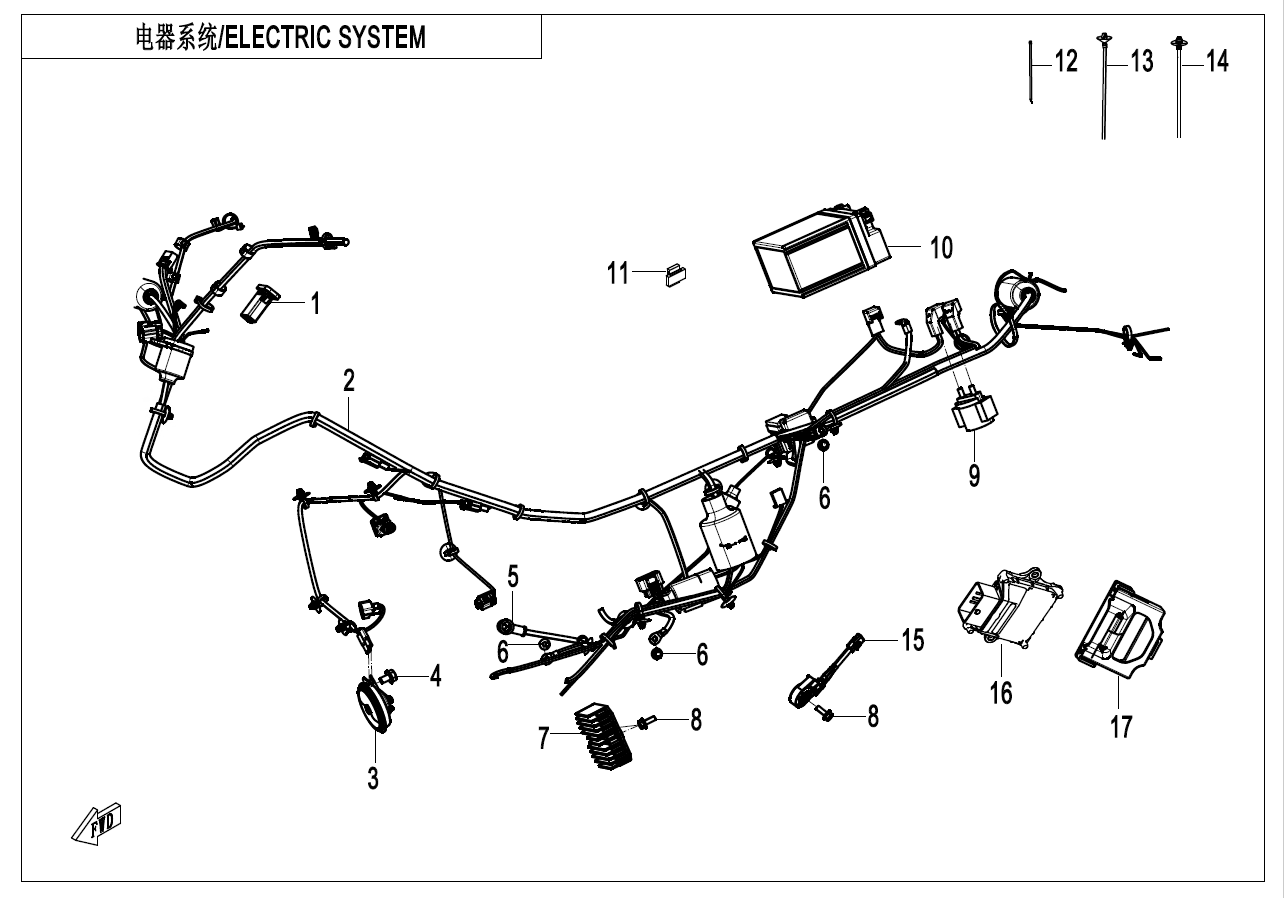

ELECTRIC SYSTEM - F15

ELECTRIC SYSTEM - F15

No.

1
P/N (SKU): 6BLV-151200-1000
Part Name: USB OUTPUT SEAT ASSY
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Specification: null
Price: 14,86 € : 14,86 €
2
P/N (SKU): 6BMV-150100-1101
Part Name: MAIN HARNESS
Effective: 2025-11-26
Alternative parts: 6BMV-150100-1102
Specification: null
Price: 148,75 € : 148,75 €
3
P/N (SKU): 6KWV-150600-1000
Part Name: HORN
Effective: 2025-11-26
Remarks: null
Alternative parts: 6FIV-150600-7000
Specification: null
Price: 11,00 € : 11,00 €
-+
3
P/N (SKU): 6BMV-151400-1000
Part Name: HORN
Effective: 2026-01-08
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
4
P/N (SKU): 30006-080012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Specification: M8×12
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 6BMV-150330-1002
Part Name: START MOTOR POSITIVE/NEGATIVE CABLE
Effective: 2025-11-26
Alternative parts: null
Specification: null
Price: 14,40 € : 14,40 €
6
P/N (SKU): 30006-060012810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-11-26
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
7
P/N (SKU): 6BMV-151000-1100
Part Name: REGULATOR
Effective: 2025-11-26
Alternative parts: null
Specification: null
Price: 27,21 € : 27,21 €
8
P/N (SKU): 30006-060016810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-11-26
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 6KJ0-150500
Part Name: RELAY, STARTER
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Price: 14,00 € : 14,00 €
-+
10
P/N (SKU): 6BMV-151600-1001-M1
Part Name: BATTERY
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Specification: null
Price: 57,20 € : 57,20 €
10
P/N (SKU): 6BMV-151600-1100-M1
Part Name: BATTERY
Effective: 2025-12-17
Remarks: TURKEY
Alternative parts: null
Specification: null
Price: 55,60 € : 55,60 €
11
P/N (SKU): 6100-150500
Part Name: RUBBER SLEEVE, FLASHER
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Specification: 5x250
Price: 1,50 € : 1,50 €
13
P/N (SKU): 801F-100101
Part Name: TIE BAND
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
14
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 6BMV-151500-1100
Part Name: SIDE STAND SWITCH
Effective: 2025-12-17
Remarks: null
Alternative parts: null
Specification: null
Price: 15,00 € : 15,00 €
16
P/N (SKU): 6BMV-001000-1100
Part Name: ECM ASSY
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Specification: null
Price: 90,30 € : 90,30 €
17
P/N (SKU): 6KMV-001300-M300
Part Name: ECU RUBBER SLEEVE
Effective: 2025-11-26
Remarks: null
Alternative parts: null
Specification: null
Price: 4,80 € : 4,80 €
18
P/N (SKU): 6BMV-035515-1100
Part Name: SIDE STAND SWITCH CABLE WIRE CLIP
Effective: 2026-03-30
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
19
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2026-04-28
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
