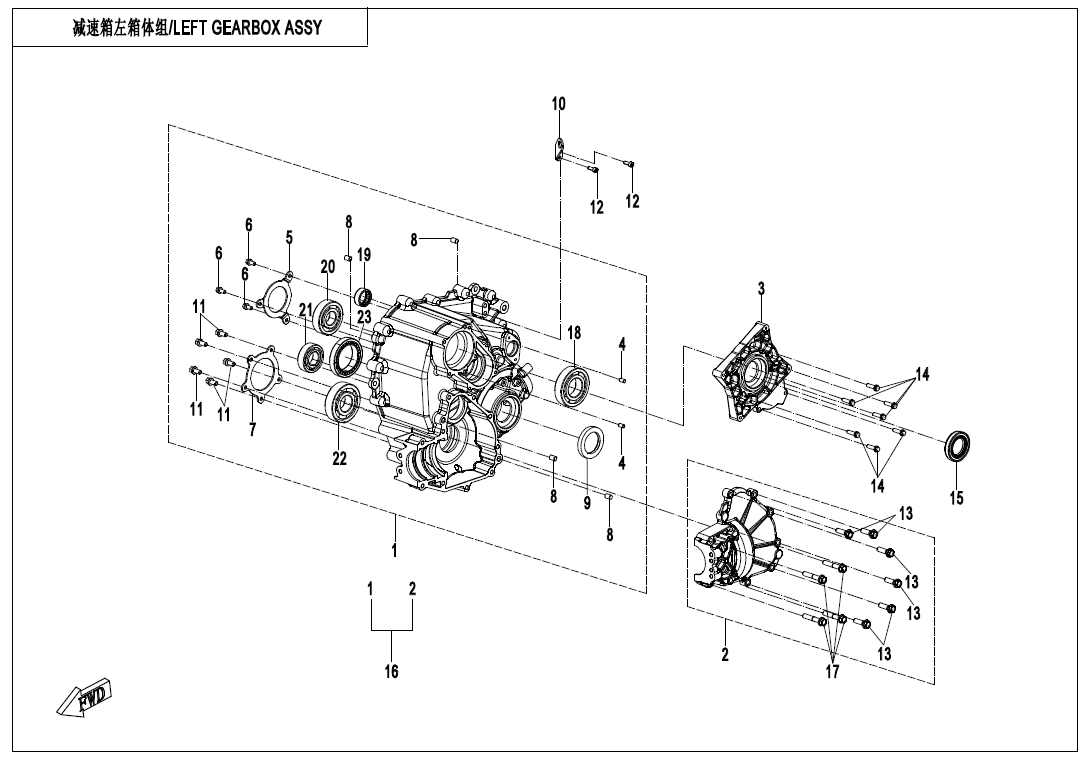

LEFT GEARBOX ASSY - E01-5-V3

LEFT GEARBOX ASSY - E01-5-V3

No.

3
P/N (SKU): 0NYV-069501-1001
Part Name: GEARBOX INPUT SHAFT COVER
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
3
P/N (SKU): 0NYV-069501-1000
Part Name: GEARBOX INPUT SHAFT COVER
Effective: 2026-01-29
Remarks: null
Alternative parts: 0NYV-069501-1001
Specification: null
Price: 35,00 € : 35,00 €
-+
4
P/N (SKU): 01A0-056004
Part Name: DOWEL PIN Φ6×12
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: 6x12
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 0NYV-069701-1000
Part Name: BEARING PRESS PLATE
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
-+
6
P/N (SKU): 30001-060014810
Part Name: BOLT
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: M6×14
Price: 1,50 € : 1,50 €
-+
7
P/N (SKU): 0NYV-069702-1001
Part Name: BEARING PRESS PLATE 1
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
7
P/N (SKU): 0NYV-069702-1000
Part Name: BEARING PRESS PLATE 1
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 3,00 € : 3,00 €
-+
8
P/N (SKU): 30410-00800
Part Name: ROLLER
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 0NYV-069104-4000
Part Name: COUNTERSHAFT OIL SEAL 40x58x8
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
10
P/N (SKU): 0NYV-022038-1000
Part Name: FRONT HOOK
Effective: 2026-01-29
Remarks: null
Alternative parts: 0NYV-022038-1001
Specification: null
Price: 2,00 € : 2,00 €
10
P/N (SKU): 0NYV-022038-1001
Part Name: FRONT HOOK
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
11
P/N (SKU): 30006-080020110
Part Name: BOLT M8×20
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
12
P/N (SKU): 30102-080020810
Part Name: SCREW
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: M8x20@TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 0JYA-062104
Part Name: BOLT M8x28
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: M8x28
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 0010-080013-0010
Part Name: BOLT M6x22
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
15
P/N (SKU): 0JY0-013103
Part Name: OIL SEAL
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: 32X55X10
Price: 8,50 € : 8,50 €
-+
16
P/N (SKU): SH-0NYV-0691A0-1002
Part Name: GEARBOX LH CRANKCASE ASSY
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
16
P/N (SKU): SH-0NYV-0691A0-1001
Part Name: GEARBOX LH CRANKCASE ASSY
Effective: 2026-01-29
Remarks: null
Alternative parts: SH-0NYV-0691A0-1002
Specification: null
Price: 0,00 € : 0,00 €
17
P/N (SKU): 0SQV-012003-1000
Part Name: BOLT
Effective: 2026-01-29
Remarks: null
Alternative parts: null
Specification: M8x45
Price: 2,00 € : 2,00 €
18
P/N (SKU): 0NYV-061019-3000
Part Name: BEARING 6207
Effective: 2026-03-17
Alternative parts: null
Specification: 6207
Price: 15,00 € : 15,00 €
-+
19
P/N (SKU): 30403-02500
Part Name: NEEDLE BEARING
Effective: 2026-03-17
Alternative parts: null
Specification: null
Price: 4,00 € : 4,00 €
-+
20
P/N (SKU): 0NYV-060012-3000
Part Name: NEEDLE BEARING 6305
Effective: 2026-03-17
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
21
P/N (SKU): 0NYV-061021-3000
Part Name: NEEDLE BEARING 6205
Effective: 2026-03-17
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
22
P/N (SKU): 0NYV-060013-3000
Part Name: NEEDLE BEARING 6306
Effective: 2026-03-17
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
23
P/N (SKU): 30409-05000
Part Name: TAPERED ROLLER BEARING
Effective: 2026-03-17
Alternative parts: null
Specification: GB/T297 32910 50×72×15
Price: 48,00 € : 48,00 €
-+
