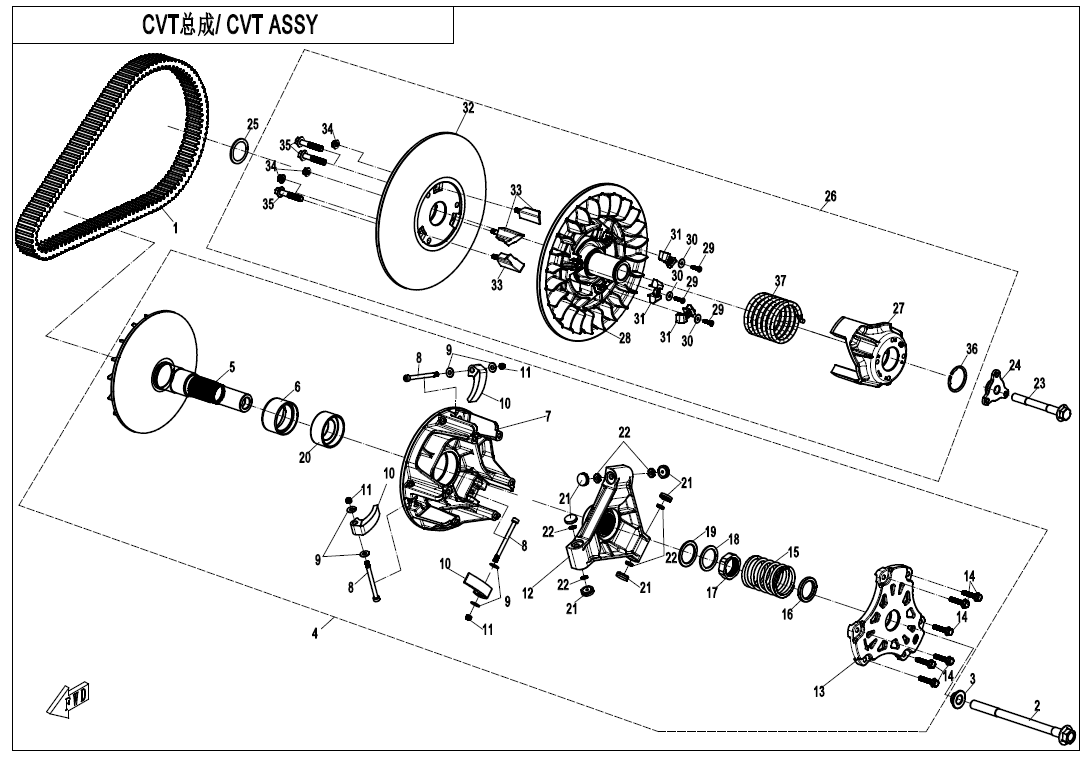

CVT ASSY(STANDARD_HEAT) - E05-A-V2

CVT ASSY(STANDARD_HEAT) - E05-A-V2

No.

1
P/N (SKU): 0NYV-054000-3000
Part Name: TOOTHED DRIVE BELT
Effective: 2026-07-20
Price: 239,00 € : 239,00 €
-+
2
P/N (SKU): 0NYV-040020-1000
Part Name: CVT BOLT
Effective: 2026-07-20
Price: 7,00 € : 7,00 €
-+
3
P/N (SKU): 0NYV-052101-2000
Part Name: CVT BOLT GASKET
Effective: 2026-07-20
Alternative parts: 0NYV-052101-2001
Price: 2,50 € : 2,50 €
4
P/N (SKU): 0NYV-052100-3001
Part Name: CVT DRIVE PULLEY ASSY
Effective: 2026-07-20
Price: 375,00 € : 375,00 €
-+
5
P/N (SKU): 0NYV-052110-3001
Part Name: DRIVE FIXED PULLEY ASSY
Effective: 2026-07-20
Price: 96,30 € : 96,30 €
-+
6
P/N (SKU): 0NYV-052120-3001
Part Name: DRIVE BEARING SEAT ASSY
Effective: 2026-07-20
Price: 80,40 € : 80,40 €
-+
7
P/N (SKU): 0NYV-052131-3001
Part Name: DRIVE MOVING SHEAVE ASSY
Effective: 2026-07-20
Price: 146,10 € : 146,10 €
-+
8
P/N (SKU): 0NYV-052135-3001
Part Name: FLAIL BLOCK BOLT
Effective: 2026-07-20
Price: 3,50 € : 3,50 €
-+
9
P/N (SKU): 0NYV-052136-3001
Part Name: WAHSER
Effective: 2026-07-20
Price: 2,80 € : 2,80 €
-+
10
P/N (SKU): 0NYV-052137-3001
Part Name: FLAIL BLOCK ASSY
Effective: 2026-07-20
Price: 17,10 € : 17,10 €
-+
11
P/N (SKU): 0NYV-052141-3001
Part Name: SELF-LOCK NUT
Effective: 2026-07-20
Specification: M5×0.8
Price: 2,70 € : 2,70 €
-+
12
P/N (SKU): 0NYV-052150-3001
Part Name: DRIVE THRUST DISC ASSY
Effective: 2026-07-20
Price: 78,60 € : 78,60 €
-+
13
P/N (SKU): 0NYV-052160-3001
Part Name: DRIVE GUIDE DISK ASSY
Effective: 2026-07-20
Price: 51,60 € : 51,60 €
-+
14
P/N (SKU): 0NYV-052101-3001
Part Name: HEX BOLT
Effective: 2026-07-20
Specification: M6×35
Price: 2,80 € : 2,80 €
-+
15
P/N (SKU): 0NYV-052102-3001
Part Name: DRIVE PULLEY SPRING
Effective: 2026-07-20
Price: 15,30 € : 15,30 €
-+
16
P/N (SKU): 0NYV-052103-3001
Part Name: LIMIT CIRCLIP
Effective: 2026-07-20
Price: 7,15 € : 7,15 €
-+
17
P/N (SKU): 0NYV-052104-3001
Part Name: HEX NUT
Effective: 2026-07-20
Specification: M32×1.5
Price: 5,39 € : 5,39 €
-+
18
P/N (SKU): 0NYV-052105-3001
Part Name: SPRING WASHER
Effective: 2026-07-20
Price: 3,50 € : 3,50 €
-+
19
P/N (SKU): 0NYV-052106-3001
Part Name: WASHER
Effective: 2026-07-20
Price: 3,60 € : 3,60 €
-+
20
P/N (SKU): 0NYV-052107-3001
Part Name: CENTERING SLEEVE
Effective: 2026-07-20
Price: 23,60 € : 23,60 €
-+
21
P/N (SKU): 0NYV-052108-3000
Part Name: SLIDING COVER
Effective: 2026-07-20
Price: 12,00 € : 12,00 €
-+
22
P/N (SKU): 0NYV-052109-3000
Part Name: DAMPER MAT
Effective: 2026-07-20
Price: 3,50 € : 3,50 €
-+
23
P/N (SKU): 0NYV-052201-3000
Part Name: CVT DRIVEN PULLEY BOLT
Effective: 2026-07-20
Price: 3,50 € : 3,50 €
-+
24
P/N (SKU): 0NYV-052202-3000
Part Name: CVT DRIVEN PULLEY PAD
Effective: 2026-07-20
Price: 11,00 € : 11,00 €
-+
25
P/N (SKU): 0NYV-052203-2000-Q0-00001
Part Name: CVT DRIVEN PULLEY ADJUSTING GASKET
Effective: 2026-07-20
Remarks: t=0.45-0.55
Specification: t=0.45-0.55
Price: 0,91 € : 0,91 €
-+
25
P/N (SKU): 0NYV-052203-2000-Q0-00002
Part Name: CVT DRIVEN PULLEY ADJUSTING GASKET
Effective: 2026-07-20
Remarks: t=0.56-0.65 RED
Specification: t=0.56-0.65 MARK RED
Price: 0,91 € : 0,91 €
-+
25
P/N (SKU): 0NYV-052203-2000-Q0-00003
Part Name: CVT DRIVEN PULLEY ADJUSTING GASKET
Effective: 2026-07-20
Remarks: t=0.66-0.75 YELLOW
Specification: t=0.66-0.75 MARK YELLOW
Price: 0,91 € : 0,91 €
-+
25
P/N (SKU): 0NYV-052203-2000-Q0-00004
Part Name: CVT DRIVEN PULLEY ADJUSTING GASKET
Effective: 2026-07-20
Remarks: t=0.76-0.85 BLUE
Specification: t=0.76-0.85 MARK BLUE
Price: 0,91 € : 0,91 €
-+
25
P/N (SKU): 0NYV-052203-2000-Q0-00005
Part Name: CVT DRIVEN PULLEY ADJUSTING GASKET
Effective: 2026-07-20
Remarks: t=0.86-0.95 WHITE
Specification: t=0.86-0.95 MARK WHITE
Price: 0,91 € : 0,91 €
-+
25
P/N (SKU): 0NYV-052203-2000-Q0-00006
Part Name: CVT DRIVEN PULLEY ADJUSTING GASKET
Effective: 2026-07-20
Remarks: t=0.96-1.05 BLACK
Specification: t=0.96-1.05 MARK BLACK
Price: 0,91 € : 0,91 €
-+
26
P/N (SKU): 0NYV-052200-3001
Part Name: DRIVEN PULLEY ASSY
Effective: 2026-07-20
Price: 202,00 € : 202,00 €
-+
27
P/N (SKU): 0NYV-052230-3001
Part Name: DRIVEN CAM ASSY
Effective: 2026-07-20
Price: 50,41 € : 50,41 €
-+
28
P/N (SKU): 0NYV-052211-3001
Part Name: DRIVEN FIXED SHEAVE ASSY
Effective: 2026-07-20
Price: 136,50 € : 136,50 €
-+
29
P/N (SKU): 0GSV-052202-1100
Part Name: SCREW
Effective: 2026-07-20
Specification: M4×16
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 0GSV-052201-1100
Part Name: WASHER
Effective: 2026-07-20
Price: 1,50 € : 1,50 €
-+
31
P/N (SKU): 0GSV-052220-1100
Part Name: GUIDE BLOCK ASSY
Effective: 2026-07-20
Price: 11,00 € : 11,00 €
-+
32
P/N (SKU): 0NYV-052220-3001
Part Name: DRIVEN MOVING SHEAVE ASSY
Effective: 2026-07-20
Price: 76,20 € : 76,20 €
-+
33
P/N (SKU): 0NYV-052240-3001
Part Name: BLOCK ASSY
Effective: 2026-07-20
Price: 10,50 € : 10,50 €
-+
34
P/N (SKU): 0NYV-052203-3001
Part Name: ANTI-LOOSEN NUT
Effective: 2026-07-20
Specification: M6
Price: 1,80 € : 1,80 €
-+
35
P/N (SKU): 0NYV-052204-3000
Part Name: HEX FLANGE BOLT
Effective: 2026-07-20
Specification: M8×50
Price: 2,50 € : 2,50 €
-+
36
P/N (SKU): 0NYV-052206-3001
Part Name: CIRCLIP FOR SHAFT
Effective: 2026-07-20
Specification: 38
Price: 2,80 € : 2,80 €
-+
37
P/N (SKU): 0NYV-052205-3001
Part Name: DRIVEN PULLEY SPRING
Effective: 2026-07-20
Price: 12,50 € : 12,50 €
-+
