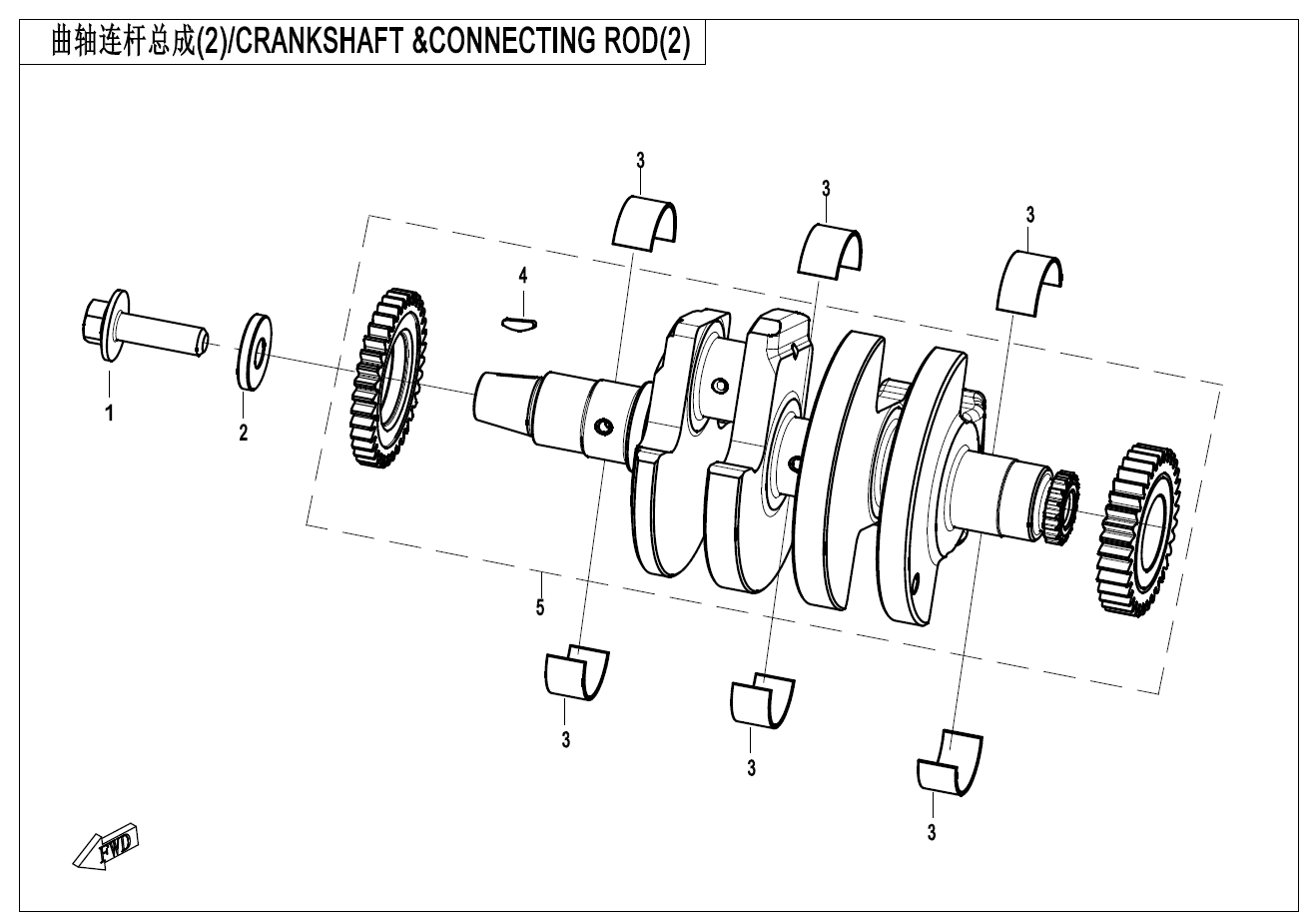

CRANKSHAFT AND CONNECTING ROD(2) - E04-2

CRANKSHAFT AND CONNECTING ROD(2) - E04-2

No.

1
P/N (SKU): 0SQV-040001-1000
Part Name: BOLT
Effective: 2025-08-21
Alternative parts:
Specification: M12x1.25x40
Price: 3,00 € : 3,00 €
-+
2
P/N (SKU): 0700-040002-00001
Part Name: WASHER
Effective: 2025-08-21
Alternative parts:
Specification: 12.5x33x5
Price: 2,50 € : 2,50 €
-+
3
P/N (SKU): 0SQV-011001-1000-Q0-00001
Part Name: MAIN BEARING
Effective: 2025-08-21
Alternative parts:
Specification: RED
Price: 8,00 € : 8,00 €
-+
3
P/N (SKU): 0SQV-011001-1000-Q0-00002
Part Name: MAIN BEARING
Effective: 2025-08-21
Alternative parts:
Specification: BLACK
Price: 8,00 € : 8,00 €
-+
3
P/N (SKU): 0SQV-011001-1000-Q0-00003
Part Name: MAIN BEARING
Effective: 2025-08-21
Alternative parts:
Specification: BLUE
Price: 8,00 € : 8,00 €
-+
3
P/N (SKU): 0SQV-011001-1000-Q1-00003
Part Name: MAIN BEARING
Effective: 2025-11-03
Remarks: DATONG
Alternative parts:
Specification: BLUE
Price: 8,25 € : 8,25 €
-+
3
P/N (SKU): 0SQV-011001-1000-Q1-00002
Part Name: MAIN BEARING
Effective: 2025-11-03
Remarks: DATONG
Alternative parts:
Specification: BLACK
Price: 8,25 € : 8,25 €
-+
3
P/N (SKU): 0SQV-011001-1000-Q1-00001
Part Name: MAIN BEARING
Effective: 2025-11-03
Remarks: DATONG
Alternative parts:
Specification: RED
Price: 8,25 € : 8,25 €
-+
4
P/N (SKU): 0180-040007
Part Name: WOODRUFF KEY
Effective: 2025-08-21
Alternative parts:
Price: 2,50 € : 2,50 €
-+
5
P/N (SKU): 0SQV-041000-1000-Q1-00002
Part Name: CRANKSHAFT ASSY
Effective: 2025-08-21
Alternative parts:
Specification: B
Price: 516,00 € : 516,00 €
-+
5
P/N (SKU): 0SQV-041000-1000-Q1-00001
Part Name: CRANKSHAFT ASSY
Effective: 2025-08-21
Alternative parts:
Specification: A
Price: 516,00 € : 516,00 €
-+
5
P/N (SKU): 0SQV-041000-1000-Q0-00002
Part Name: CRANKSHAFT ASSY
Effective: 2025-09-01
Remarks: EU REGULATION
Alternative parts: 0SQV-041000-1000-Q1-00002
Specification: B
Price: 487,00 € : 487,00 €
5
P/N (SKU): 0SQV-041000-1000-Q0-00001
Part Name: CRANKSHAFT ASSY
Effective: 2025-09-01
Remarks: EU REGULATION
Alternative parts: 0SQV-041000-1000-Q1-00001
Specification: GROUP A
Price: 487,00 € : 487,00 €
