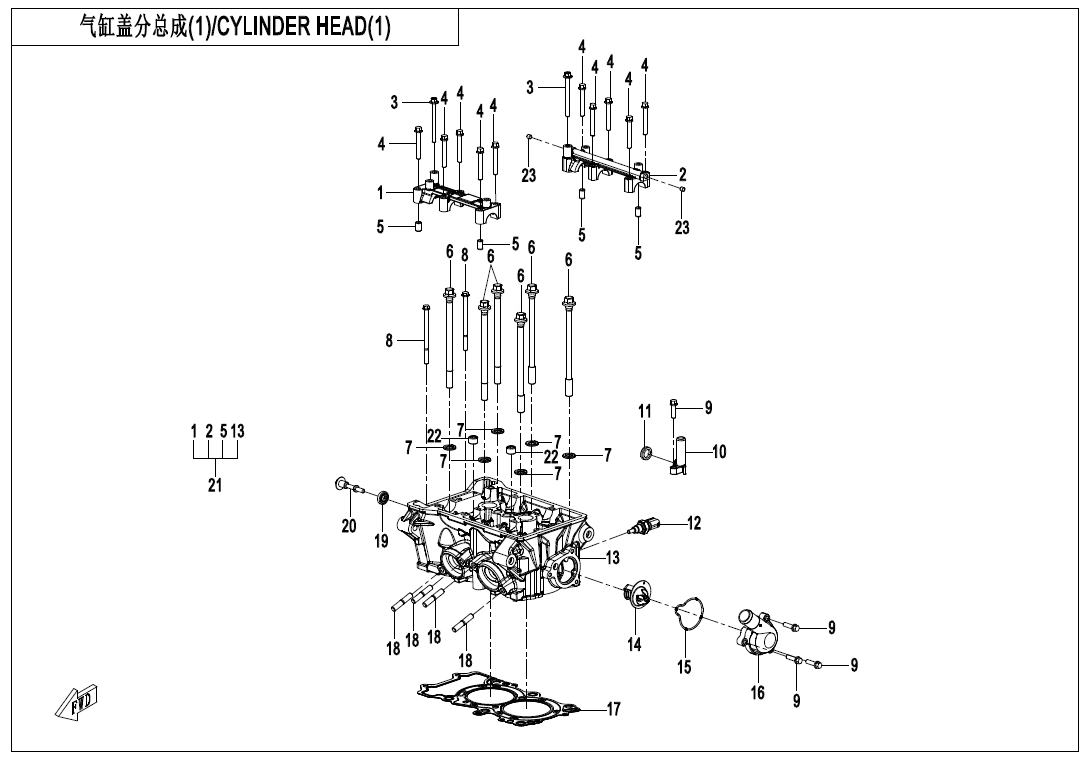

CYLINDER HEAD(1) - E02-2 | 2026, ENGINE, 272MQ-B | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

03

P/N (SKU): 0SQV-022105-1000

Part Name: BOLT

Effective: 2025-12-04

Alternative parts:

Specification: M6x65

Price: 1,50 € : 1,50 €

04

P/N (SKU): 0SQV-022106-1001

Part Name: HEX FLANGE BOLT

Effective: 2025-12-04

Alternative parts:

Price: 2,00 € : 2,00 €

05

P/N (SKU): 0DM0-022201-10000

Part Name: DOWEL PIN

Effective: 2025-12-04

Alternative parts:

Price: 1,50 € : 1,50 €

06

P/N (SKU): 0SQV-022008-1000

Part Name: CYLINDER HEAD BOLT

Effective: 2025-12-04

Alternative parts:

Specification: M10x150

Price: 4,50 € : 4,50 €

07

P/N (SKU): 0700-022016

Part Name: WASHER

Effective: 2025-12-04

Alternative parts:

Specification: 10.5x19x2.3

Price: 1,50 € : 1,50 €

08

P/N (SKU): 0SQV-022011-1000

Part Name: BOLT

Effective: 2025-12-04

Alternative parts:

Specification: M6x90

Price: 2,00 € : 2,00 €

09

P/N (SKU): 0010-080013-0010

Part Name: BOLT M6x22

Effective: 2025-12-04

Alternative parts:

Specification: GALVANIZED TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

10

P/N (SKU): 0SQV-022200-1000

Part Name: CONNECTOR ASSY

Effective: 2025-12-04

Alternative parts:

Price: 3,00 € : 3,00 €

11

P/N (SKU): 1F30-024016

Part Name: SURFACE OIL SEAL

Effective: 2025-12-04

Alternative parts:

Price: 6,50 € : 6,50 €

12

P/N (SKU): 018B-022810

Part Name: COOLANT TEMP. SENSOR

Effective: 2025-12-04

Alternative parts:

Price: 27,00 € : 27,00 €

14

P/N (SKU): 0MQ0-022500

Part Name: THERMOSTAT

Effective: 2025-12-04

Alternative parts:

Price: 14,00 € : 14,00 €

15

P/N (SKU): 0SQV-022002-1000

Part Name: THERMOSTAT CAP SEAL RING

Effective: 2025-12-04

Alternative parts:

Price: 3,00 € : 3,00 €

16

P/N (SKU): 0SQV-022001-1000-10-0BP00

Part Name: THERMOSTAT CAP

Effective: 2025-12-04

Alternative parts:

Specification: MAUD SPIRIT BLACK

Price: 17,00 € : 17,00 €

16

P/N (SKU): 0SQV-022001-1000-10-0HB00

Part Name: THERMOSTAT CAP

Effective: 2026-01-04

Alternative parts:

Specification: DYNAMIC GRAY

Price: 19,00 € : 19,00 €

17

P/N (SKU): 0SQV-022300-1000

Part Name: CYLINDER HEAD GASKET ASSY

Effective: 2025-12-04

Alternative parts:

Price: 19,00 € : 19,00 €

18

P/N (SKU): 0180-022003-00002

Part Name: STUD

Effective: 2025-12-04

Alternative parts:

Specification: M8x42

Price: 1,50 € : 1,50 €

19

P/N (SKU): 0700-021200

Part Name: CYLINDER HEAD COVER BOLT SEAL RING

Effective: 2025-12-04

Alternative parts:

Price: 3,50 € : 3,50 €

20

P/N (SKU): 0DM0-022008-00001

Part Name: CYLINDER HEAD DAMPING BOLT

Effective: 2025-12-04

Alternative parts:

Price: 2,50 € : 2,50 €

21

P/N (SKU): 0SQV-022100-1006-0BP00

Part Name: CYLINDER HEAD ASSY

Effective: 2025-12-04

Alternative parts:

Specification: MAUD SPIRIT BLACK

Price: 234,00 € : 234,00 €

21

P/N (SKU): 0SQV-022100-1006-0HB00

Part Name: CYLINDER HEAD ASSY

Effective: 2026-01-04

Alternative parts:

Specification: DYNAMIC GRAY

Price: 245,00 € : 245,00 €

22

P/N (SKU): 0700-012105-00001

Part Name: PLUG, MAIN OIL RAIL

Effective: 2025-12-04

Alternative parts:

Price: 1,50 € : 1,50 €

23

P/N (SKU): 0700-066005

Part Name: PLUG 6

Effective: 2025-12-04

Alternative parts:

Specification: 6

Price: 2,00 € : 2,00 €
