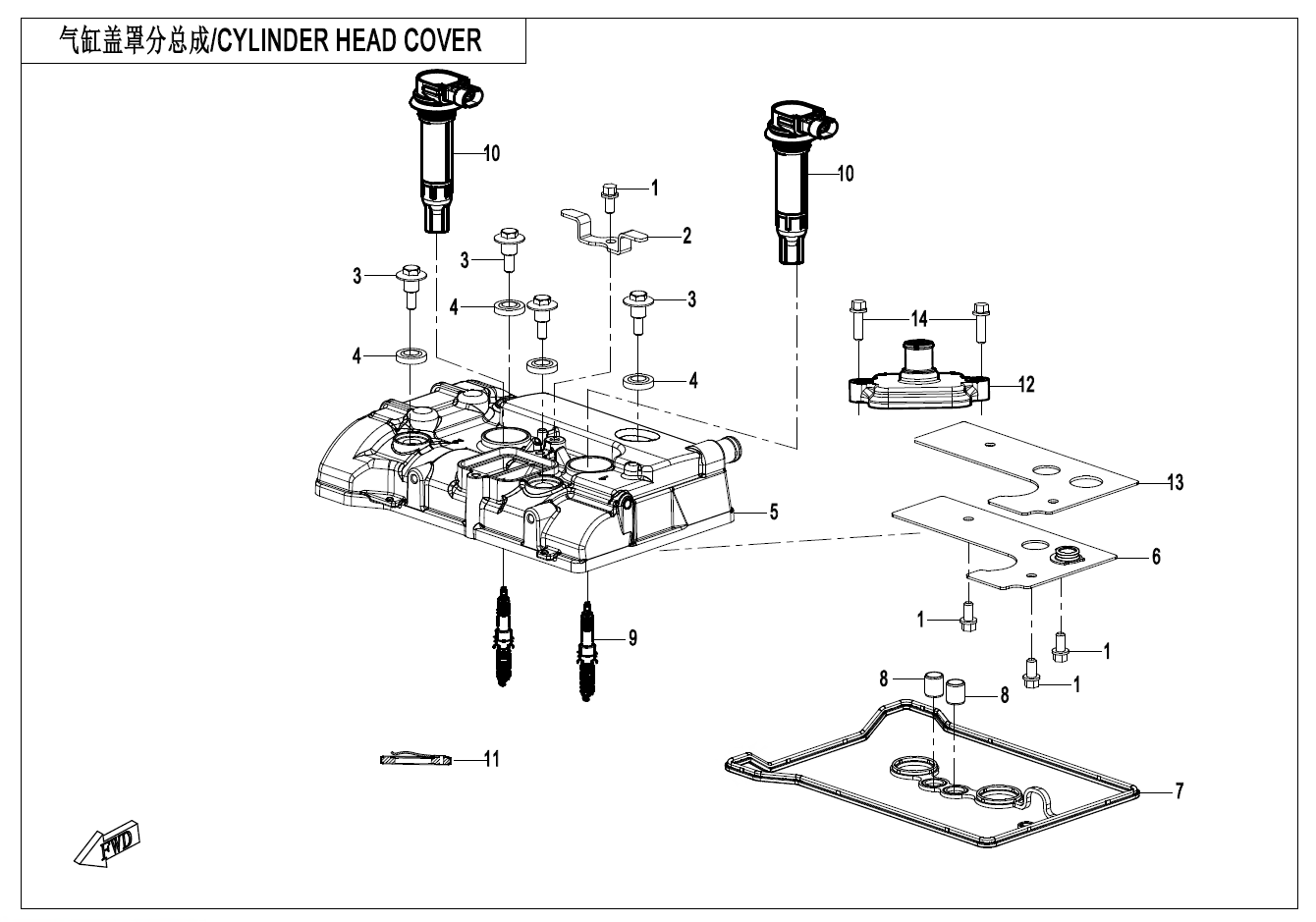

CYLINDER HEAD COVER - E02-1

CYLINDER HEAD COVER - E02-1

No.

01
P/N (SKU): 0010-021019-0010
Part Name: BOLT M6x12
Effective: 2025-12-04
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 0SQV-021004-1000
Part Name: PRESS PLATE
Effective: 2025-12-04
Price: 3,00 € : 3,00 €
-+
03
P/N (SKU): 0700-021003-00001
Part Name: CYLINDER HEAD COVER BOLT
Effective: 2025-12-04
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 0700-021200
Part Name: CYLINDER HEAD COVER BOLT SEAL RING
Effective: 2025-12-04
Price: 3,50 € : 3,50 €
-+
05
P/N (SKU): 0SQV-021010-1000-10-0BP00
Part Name: CYLINDER HEAD COVER ASSY
Effective: 2025-12-04
Remarks: EU5
Specification: WITH REINFLATION AIR HOLE_MAUD SPIRIT BLACK
Price: 75,00 € : 75,00 €
-+
05
P/N (SKU): 0SQV-021010-1001-0BP00
Part Name: CYLINDER HEAD COVER ASSY
Effective: 2025-12-04
Remarks: INTL
Specification: MAUD SPIRIT BLACK
Price: 57,00 € : 57,00 €
-+
06
P/N (SKU): 0SQV-021100-1000
Part Name: LABYRINTH PRESS PLATE ASSY
Effective: 2025-12-04
Price: 24,00 € : 24,00 €
-+
07
P/N (SKU): 0SQV-021002-1000
Part Name: CYLINDER HEAD COVER SEAL RING
Effective: 2025-12-04
Price: 15,00 € : 15,00 €
-+
08
P/N (SKU): 0HU0-021002-00001
Part Name: GULP PIN
Effective: 2025-12-04
Price: 3,50 € : 3,50 €
-+
09
P/N (SKU): 0SQV-170200-1000
Part Name: SPARK PLUG ASSY
Effective: 2025-12-04
Price: 22,00 € : 22,00 €
-+
10
P/N (SKU): 0SQV-178000-1001
Part Name: IGNITION COIL
Effective: 2025-12-04
Price: 30,00 € : 30,00 €
-+
11
P/N (SKU): 0MQB-021100-20001
Part Name: SPRING VALVE ASSY
Effective: 2025-12-04
Remarks: EU5
Price: 11,00 € : 11,00 €
-+
12
P/N (SKU): 0SQV-021020-1000-0BP00
Part Name: ONE-WAY VALVE CAP ASSY
Effective: 2025-12-04
Remarks: EU5
Specification: MAUD SPIRIT BLACK
Price: 9,00 € : 9,00 €
-+
13
P/N (SKU): 0SQV-021005-1000
Part Name: LABYRINTH COVER GASKET
Effective: 2025-12-04
Price: 4,50 € : 4,50 €
-+
14
P/N (SKU): 0010-080013-0010
Part Name: BOLT M6x22
Effective: 2025-12-04
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
