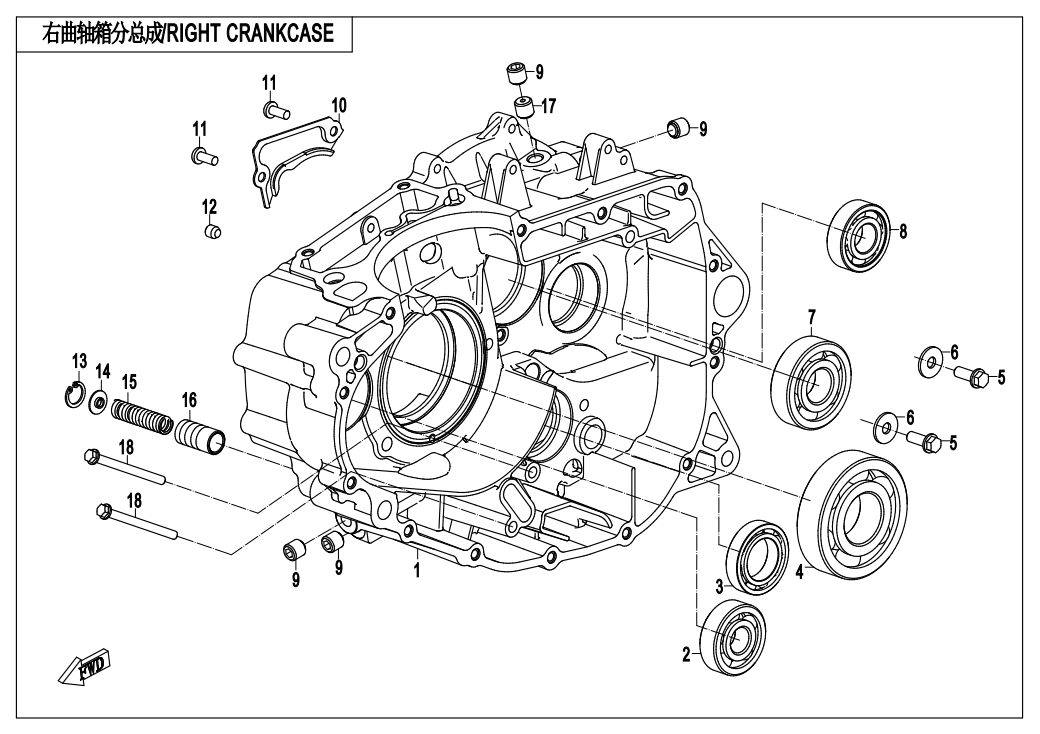

RIGHT CRANKCASE - E01-1 | 2026, ENGINE, 172MM-2D | CFMOTO

You are here

No.

P/N (SKU)

Part Name

Price

Your price

01

P/N (SKU): 0DNV-012010-4000-0HB00

Part Name: RH CRANKCASE ASSY

Effective: 2025-11-25

Alternative parts: null

Specification: DYNAMIC GRAY

Price: 108,00 € : 108,00 €

02

P/N (SKU): 30499-01508

Part Name: ROLLING BEARING

Effective: 2025-11-25

Remarks: null

Alternative parts: 30498-01500

Specification: 15Ã42Ã13

Price: 15,00 € : 15,00 €

03

P/N (SKU): 30499-02506

Part Name: ROLLING BEARING

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Price: 15,00 € : 15,00 €

04

P/N (SKU): 30499-03001

Part Name: ROLLING BEARING

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Price: 30,00 € : 30,00 €

05

P/N (SKU): 0010-090005-0010

Part Name: BOLT M6x16

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Specification: GALVANIZED TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

06

P/N (SKU): 30305-060112

Part Name: PLAIN WASHERS

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Specification: Ï6@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

07

P/N (SKU): 30499-02010

Part Name: ROLLING BEARING

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Specification: 20Ã52Ã15

Price: 13,00 € : 13,00 €

08

P/N (SKU): 30499-01702

Part Name: ROLLING BEARING

Effective: 2025-11-25

Remarks: null

Alternative parts: 30498-01700

Specification: 17Ã40Ã12

Price: 12,00 € : 12,00 €

09

P/N (SKU): 01A0-012010-00001

Part Name: SCREW

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Price: 1,50 € : 1,50 €

10

P/N (SKU): 0DM0-012001

Part Name: VENTILATED COVER PLATE

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Price: 3,00 € : 3,00 €

11

P/N (SKU): 30105-050012890

Part Name: PAN HEAD SCREWS WITH CROSS RECESS

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Specification: M5x12

Price: 1,50 € : 1,50 €

12

P/N (SKU): 0A70-013004

Part Name: PLUG

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Price: 2,00 € : 2,00 €

13

P/N (SKU): 30800-01405

Part Name: CIRCLIPS FOR HOLES

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Specification: 14A

Price: 1,50 € : 1,50 €

14

P/N (SKU): 0800-073004

Part Name: SPRING SEAT, RELIEF VALVE

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Price: 1,50 € : 1,50 €

15

P/N (SKU): 01A0-012007

Part Name: SPRING, RELIEF VALVE

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Price: 3,00 € : 3,00 €

16

P/N (SKU): 0DM0-012003

Part Name: CORE, RELIEF VALVE

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Price: 3,50 € : 3,50 €

17

P/N (SKU): 0DM0-012002

Part Name: RESTRICTION PLUG

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Price: 3,00 € : 3,00 €

18

P/N (SKU): 0020-011018-00001

Part Name: BOLT

Effective: 2025-11-25

Remarks: null

Alternative parts: null

Specification: null

Price: 1,50 € : 1,50 €
