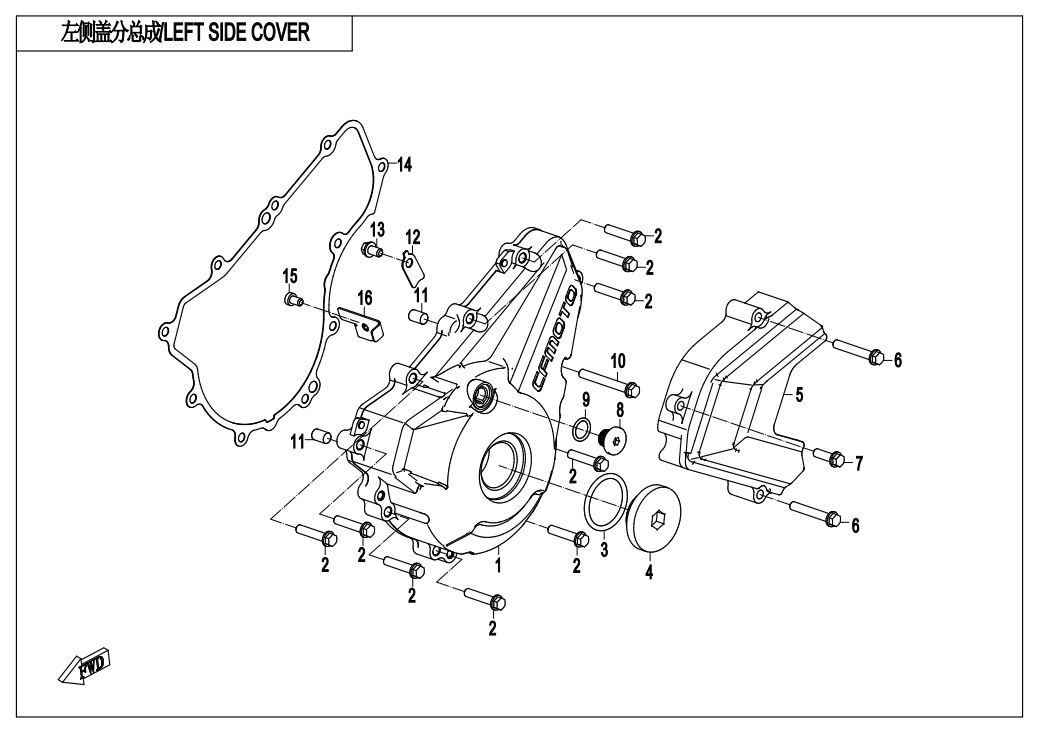

LEFT SIDE COVER - E01-4

LEFT SIDE COVER - E01-4

No.

01
P/N (SKU): 0DMB-014002-0HB00
Part Name: LH SIDE COVER
Effective: 2025-11-25
Alternative parts: null
Specification: DYNAMIC GRAY
Price: 56,00 € : 56,00 €
02
P/N (SKU): 0010-060012-0010
Part Name: BOLT M6x30
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
03
P/N (SKU): 01A0-012003
Part Name: O-RING
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: 35x3.5
Price: 3,00 € : 3,00 €
-+
04
P/N (SKU): 01A0-012002-0HB00
Part Name: FILTER COVER
Effective: 2025-11-25
Alternative parts: null
Specification: DYNAMIC GRAY
Price: 11,00 € : 11,00 €
-+
05
P/N (SKU): 0DM0-014100
Part Name: REAR COVER ASSY, LH
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
06
P/N (SKU): 0010-013009-0010
Part Name: BOLT M6x40
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 0010-023010-0010
Part Name: BOLT M6x20
Effective: 2025-11-25
Remarks: null
Alternative parts: 0JWV-011107-3000
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
08
P/N (SKU): 0DMV-014003-1000-0V100
Part Name: TIMING INSPECTION VIEWING HOLE
Effective: 2025-11-25
Alternative parts: null
Specification: SILVER WHITE
Price: 2,70 € : 2,70 €
09
P/N (SKU): 0DM0-011006
Part Name: O-RING
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: 13x2
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 0010-013010-0010
Part Name: BOLT M6x50
Effective: 2025-11-25
Remarks: null
Alternative parts: 0JWV-011108-3000
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
11
P/N (SKU): 30410-00800
Part Name: ROLLER
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 0DM0-014004
Part Name: FIXING PAD, HARNESS
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
13
P/N (SKU): 0010-090006-00001
Part Name: SCREW
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: null
Price: 2,00 € : 2,00 €
14
P/N (SKU): 0DM0-014001-00001
Part Name: GASKET, LH SIDE COVER
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
-+
15
P/N (SKU): 30102-050012810
Part Name: SCREW
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Specification: M5x12@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 0A80-014005
Part Name: WIRE PRESS PLATE
Effective: 2025-11-25
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
