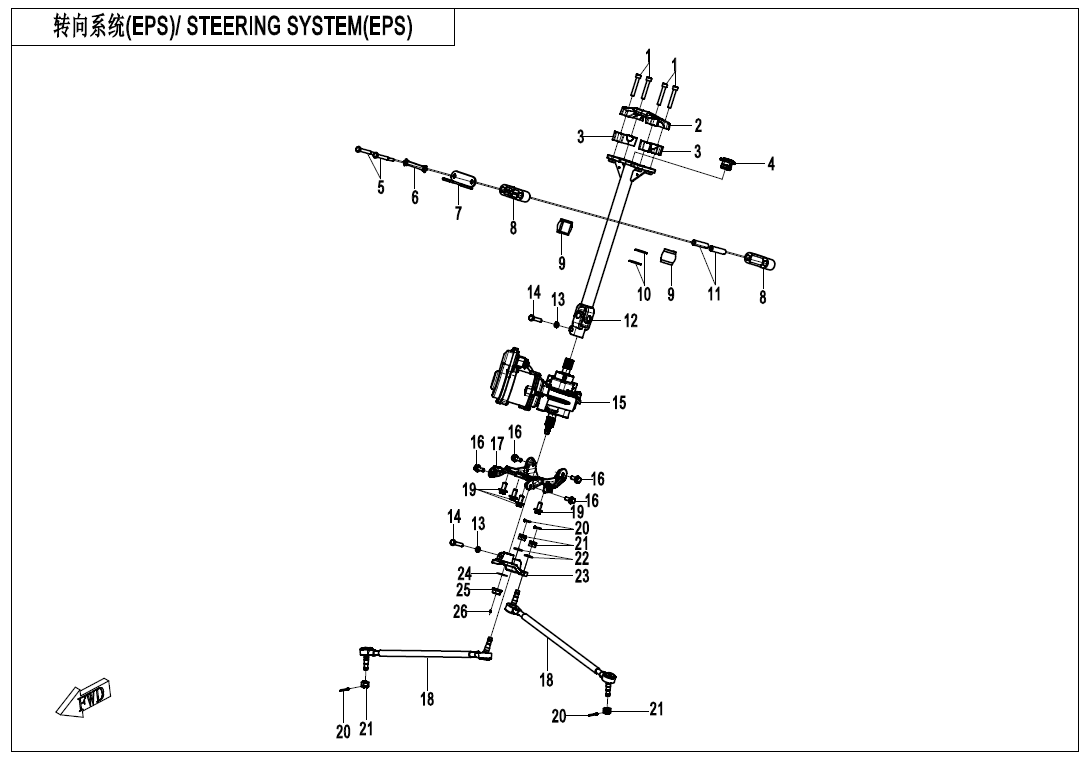

STEERING SYSTEM(EPS) - F10-2-V3 | 2026, ATV,

You are here

No.

P/N (SKU)

Part Name

Price

Your price

1

P/N (SKU): 30102-080050810

Part Name: INNER HEX SCREW

Effective: 2025-05-16

Alternative parts: 30102-080050840

Specification: M8x50@TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

2

P/N (SKU): 9AWV-100001-8001

Part Name: HANDLEBAR UPPER PRESS COVER

Effective: 2025-05-16

Alternative parts:

Price: 37,00 € : 37,00 €

3

P/N (SKU): 9AWV-100003-8001

Part Name: HANDLEBAR LOWER PRESS COVER

Effective: 2025-05-16

Alternative parts:

Price: 37,00 € : 37,00 €

4

P/N (SKU): 9AWV-100004-8000

Part Name: STEERING SHAFT DECO COVER

Effective: 2025-05-16

Alternative parts:

Price: 2,00 € : 2,00 €

5

P/N (SKU): 30003-080075810

Part Name: BOLT M8x75

Effective: 2025-05-16

Alternative parts:

Specification: M8x75

Price: 1,50 € : 1,50 €

6

P/N (SKU): 7020-100603

Part Name: LOCKING PIECE

Effective: 2025-05-16

Alternative parts:

Price: 1,50 € : 1,50 €

7

P/N (SKU): 7020-100610-10000

Part Name: LINKING PLATE ASSY

Effective: 2025-05-16

Alternative parts:

Price: 3,00 € : 3,00 €

8

P/N (SKU): 7020-100601-00001

Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL

Effective: 2025-05-16

Alternative parts:

Price: 5,00 € : 5,00 €

9

P/N (SKU): 7020-100602

Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL

Effective: 2025-05-16

Alternative parts:

Price: 9,00 € : 9,00 €

10

P/N (SKU): 30502-032800N

Part Name: O-RING

Effective: 2025-05-16

Alternative parts:

Specification: 32x1.8

Price: 1,50 € : 1,50 €

11

P/N (SKU): 7020-100604-00001

Part Name: BUSHING

Effective: 2025-05-16

Alternative parts:

Price: 3,00 € : 3,00 €

12

P/N (SKU): 9AWV-102100-8001

Part Name: STEERING SHAFT ASSY

Effective: 2025-05-16

Alternative parts:

Price: 48,40 € : 48,40 €

13

P/N (SKU): 30303-080112

Part Name: WASHER

Effective: 2025-05-16

Alternative parts:

Specification: Ï8@COLOR ZINC TRIVALENT CHROMIUM

Price: 1,50 € : 1,50 €

14

P/N (SKU): 9CR6-102003

Part Name: BOLT M8x35

Effective: 2025-05-16

Alternative parts:

Specification: M8x35

Price: 3,00 € : 3,00 €

15

P/N (SKU): 9AWV-150800-1501

Part Name: EPS ASSY

Effective: 2025-05-16

Alternative parts:

Price: 568,75 € : 568,75 €

16

P/N (SKU): 30006-080020810

Part Name: BOLT

Effective: 2025-05-16

Alternative parts: 30006-080016810

Specification: M8Ã20

Price: 1,50 € : 1,50 €

17

P/N (SKU): 9AWV-100002-8000

Part Name: MOUNTING PLATE, STEERING SEAT

Effective: 2025-05-16

Alternative parts:

Price: 60,00 € : 60,00 €

18

P/N (SKU): 9AWV-104100-8000-M2

Part Name: STEERING ROD ASSY

Effective: 2025-05-16

Alternative parts:

Price: 69,00 € : 69,00 €

19

P/N (SKU): 30006-100020810

Part Name: BOLT M10x20

Effective: 2025-05-16

Alternative parts:

Specification: M10x20

Price: 2,00 € : 2,00 €

20

P/N (SKU): 30903-0252010

Part Name: COTTER PIN

Effective: 2025-05-16

Alternative parts:

Specification: 2.5x20

Price: 1,50 € : 1,50 €

21

P/N (SKU): 9010-100002

Part Name: 1-TYPE NUT

Effective: 2025-05-16

Alternative parts:

Specification: M10x1.25

Price: 2,00 € : 2,00 €

22

P/N (SKU): 30306-100112

Part Name: WASHER

Effective: 2025-05-16

Alternative parts:

Specification: Ï10

Price: 1,50 € : 1,50 €

23

P/N (SKU): 9AWA-100001-20000

Part Name: STEERING ARM

Effective: 2025-05-16

Alternative parts:

Price: 21,00 € : 21,00 €

24

P/N (SKU): 30306-140112

Part Name: WASHER

Effective: 2025-05-16

Alternative parts:

Specification: Ï14

Price: 1,50 € : 1,50 €

25

P/N (SKU): 30204-122810

Part Name: NUT

Effective: 2025-05-16

Alternative parts:

Specification: M12Ã1.25

Price: 1,50 € : 1,50 €

26

P/N (SKU): 30903-0201610

Part Name: COTTER PIN

Effective: 2025-05-16

Alternative parts:

Specification: Ï2Ã16

Price: 1,50 € : 1,50 €
