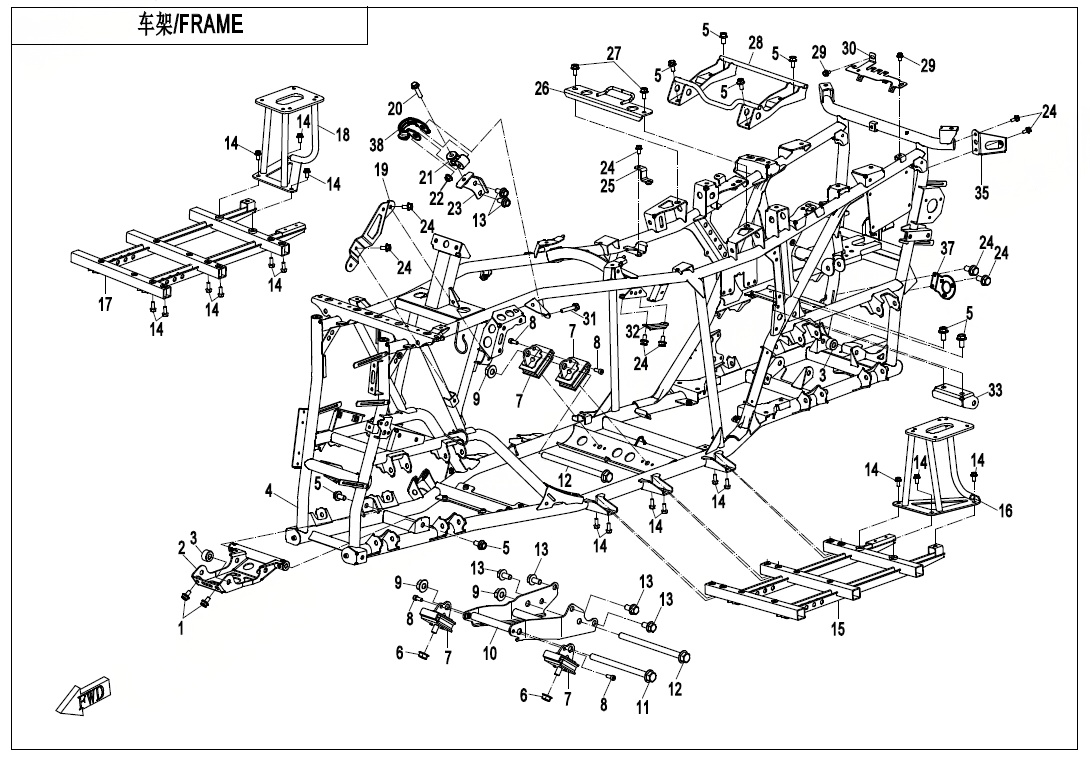

FRAME - F03-V4

FRAME - F03-V4

No.

01
P/N (SKU): 30006-080014810
Part Name: BOLT
Effective: 2025-06-04
Alternative parts:
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
02
P/N (SKU): 9DS#-030100-6001
Part Name: BRACKET, FRONT GEAR CASE
Effective: 2025-06-04
Alternative parts:
Price: 21,00 € : 21,00 €
-+
03
P/N (SKU): 9AWA-030002
Part Name: BUSHING, FRONT GEAR CASE
Effective: 2025-06-04
Alternative parts:
Price: 2,50 € : 2,50 €
-+
04
P/N (SKU): 9CSV-031000-A005-01-0BP00
Part Name: FRAME ASSY
Effective: 2025-06-04
Alternative parts:
Specification: MAUD SPIRIT BLACK
Price: 516,50 € : 516,50 €
-+
05
P/N (SKU): 30006-102020810
Part Name: BOLT M10x1.25x20
Effective: 2025-06-04
Alternative parts:
Specification: M10x1.25x20
Price: 2,00 € : 2,00 €
-+
06
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2025-06-04
Alternative parts:
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 9DQV-000300-3000
Part Name: DAMPING BLOCK, ENGINE
Effective: 2025-06-04
Alternative parts:
Specification: 55HA
Price: 19,00 € : 19,00 €
-+
08
P/N (SKU): 30102-060016810
Part Name: SCREW
Effective: 2025-06-04
Alternative parts:
Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 30204-122810
Part Name: NUT
Effective: 2025-06-04
Alternative parts:
Specification: M12×1.25
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 9CR6-001100-20000
Part Name: FRONT BRACKET, ENGINE
Effective: 2025-06-04
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 26,00 € : 26,00 €
-+
11
P/N (SKU): 30006-122170810
Part Name: BOLT M12x1.25x170
Effective: 2025-06-04
Alternative parts:
Specification: M12x1.25x170
Price: 4,00 € : 4,00 €
-+
12
P/N (SKU): 30006-122180810
Part Name: BOLT M12x1.25x180
Effective: 2025-06-04
Alternative parts:
Specification: M12x1.25x180
Price: 4,50 € : 4,50 €
-+
13
P/N (SKU): 30006-100020810
Part Name: BOLT M10x20
Effective: 2025-06-04
Alternative parts: 30006-103020810
Specification: M10x20
Price: 2,00 € : 2,00 €
14
P/N (SKU): 30006-080020810
Part Name: BOLT
Effective: 2025-06-04
Alternative parts:
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 9CS#-030300-6401
Part Name: BRACKET, LH FOOTREST
Effective: 2025-06-04
Alternative parts:
Price: 64,00 € : 64,00 €
-+
16
P/N (SKU): 9CS#-030500-6400
Part Name: BRACKET, LH PEDAL
Effective: 2025-06-04
Alternative parts:
Price: 45,00 € : 45,00 €
-+
17
P/N (SKU): 9CS#-030400-6401
Part Name: RH FOOT PEDAL BRACKET ASSY
Effective: 2025-06-04
Alternative parts:
Price: 64,00 € : 64,00 €
-+
18
P/N (SKU): 9CS#-030600-6400
Part Name: REAR RH FOOT PEDAL ASSY
Effective: 2025-06-04
Alternative parts:
Price: 40,00 € : 40,00 €
-+
19
P/N (SKU): 9DS#-030070-6000
Part Name: BRACKET, EPS CONTROLLER
Effective: 2025-06-04
Alternative parts:
Price: 8,00 € : 8,00 €
-+
20
P/N (SKU): 30006-080035810
Part Name: BOLT
Effective: 2025-06-04
Alternative parts:
Specification: M8×35
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 7020-000160
Part Name: CONNECTING PARTS, ENGINE UPPER BRACKET
Effective: 2025-06-04
Alternative parts:
Price: 12,00 € : 12,00 €
-+
22
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2025-06-04
Alternative parts:
Specification: M8
Price: 1,50 € : 1,50 €
-+
23
P/N (SKU): 9DSV-030040-6002
Part Name: UPPER BRACKET, ENGINE
Effective: 2025-06-04
Alternative parts:
Price: 4,00 € : 4,00 €
-+
24
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2025-06-04
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
25
P/N (SKU): 9DSV-030020-A000
Part Name: AIR FILTER CONNECTING BRACKET ASSY
Effective: 2025-06-04
Alternative parts:
Price: 6,50 € : 6,50 €
-+
26
P/N (SKU): 9DS#-030020-6000
Part Name: BRACKET, FRONT SEAT
Effective: 2025-06-04
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 18,00 € : 18,00 €
-+
27
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2025-06-04
Alternative parts:
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
28
P/N (SKU): 9CS#-030100-6400
Part Name: BRACKET, REAR SEAT
Effective: 2025-06-04
Alternative parts:
Specification: ELECTROPHORESIS BLACK
Price: 70,00 € : 70,00 €
-+
29
P/N (SKU): 30006-060010810
Part Name: BOLT
Effective: 2025-06-04
Alternative parts:
Specification: M6×10
Price: 1,50 € : 1,50 €
-+
30
P/N (SKU): 9DSV-030081-6K00
Part Name: WIRE CONNECTOR LOCKING PLATE 4
Effective: 2025-06-04
Alternative parts:
Price: 4,00 € : 4,00 €
-+
31
P/N (SKU): 30006-080045810
Part Name: BOLT
Effective: 2025-06-04
Alternative parts:
Specification: M8x45@COLOR ZINC TRIVALENT CHROMIUM
Price: 2,00 € : 2,00 €
-+
32
P/N (SKU): 9DS#-030091-6000
Part Name: WIRE CONNECTOR LOCKING PLATE 3
Effective: 2025-06-04
Alternative parts:
Price: 5,00 € : 5,00 €
-+
33
P/N (SKU): 9CRB-030010
Part Name: SUSPENSION BRACKET ASSY, REAR GEAR CASE
Effective: 2025-06-04
Alternative parts:
Price: 7,00 € : 7,00 €
-+
34
P/N (SKU): 9DS#-030504-6000
Part Name: RH BRACKET, REAR TRUNK
Effective: 2025-06-04
Alternative parts:
Price: 4,00 € : 4,00 €
-+
35
P/N (SKU): 9DS#-030503-6000
Part Name: LH BRACKET, REAR TRUNK
Effective: 2025-06-04
Alternative parts:
Price: 4,00 € : 4,00 €
-+
36
P/N (SKU): 30305-060112
Part Name: WASHER
Effective: 2025-06-04
Alternative parts:
Specification: φ6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 9DSV-030010-A000
Part Name: TRAILER POWER BRACKET
Effective: 2025-06-04
Alternative parts:
Price: 4,50 € : 4,50 €
-+
38
P/N (SKU): 9DSV-030060-6000
Part Name: UPPER LIMIT BRACKET ASSY, ENGINE
Effective: 2025-06-04
Alternative parts:
Price: 9,00 € : 9,00 €
-+
