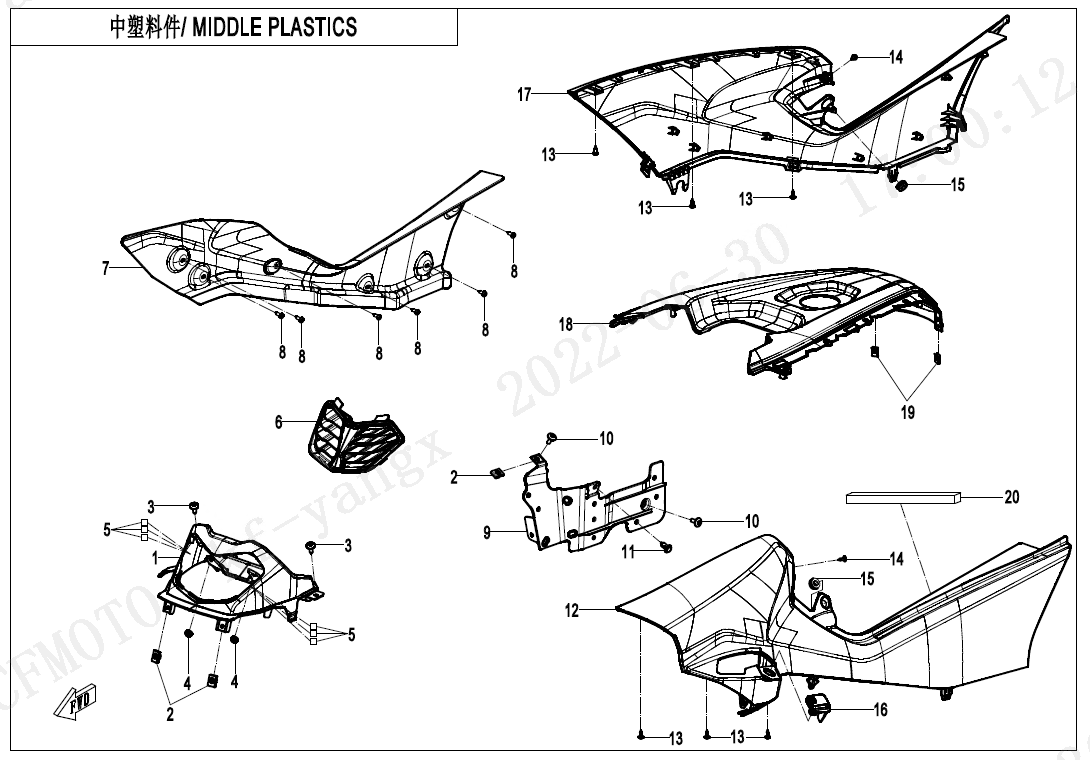

MIDDLE PLASTICS - F04-3

MIDDLE PLASTICS - F04-3

No.

1
P/N (SKU): 9DRV-041031-B000
Part Name: DASHBOARD GUARD DELUXE CONFIGURATION
Effective: 2025-09-11
Remarks: MATCHED WITH 5‘’ DASHBOARD
Alternative parts: null
Specification: DELUXE
Price: 14,00 € : 14,00 €
-+
2
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
3
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2025-09-11
Remarks: null
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 6NQ#-040022-2000
Part Name: SPONGE MAT
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
6
P/N (SKU): 9DQV-041032-3000
Part Name: DASHBOARD GUARD AIR INLET PORT
Effective: 2025-09-11
Remarks: null
Alternative parts: 9DQV-041032-3001
Specification: null
Price: 61,00 € : 61,00 €
7
P/N (SKU): 9CQV-042028-3000
Part Name: HEAT INSULATOR, RH SIDE COVER
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: LONG MODEL
Price: 24,00 € : 24,00 €
-+
8
P/N (SKU): 30110-421130010
Part Name: SELF-TAPPING SCREW
Effective: 2025-09-11
Remarks: null
Alternative parts: 30110-420130070
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
9
P/N (SKU): 9DQV-044012-3000
Part Name: ELECTRICAL BRACKET
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
10
P/N (SKU): 30006-060012870
Part Name: BOLTM6x12
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
12
P/N (SKU): 9CQV-042021-3000-0RM00
Part Name: LH SIDE COVER, LONG MODEL
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: MAGMA RED
Price: 66,00 € : 66,00 €
12
P/N (SKU): 9CQV-042021-3000-0K100
Part Name: LONG MODEL LH SIDE COVER
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: TRUE TIMBER KANATI
Price: 63,60 € : 63,60 €
12
P/N (SKU): 9CQV-042021-3000-0YD00
Part Name: LH SIDE COVER, LONG MODEL
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: LAVA ORANGE
Price: 54,00 € : 54,00 €
12
P/N (SKU): 9CQV-042021-3000-0P800
Part Name: LH SIDE COVER, LONG MODEL
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: HUNTER GREEN
Price: 32,00 € : 32,00 €
12
P/N (SKU): 9CQV-042021-3000-0BM00
Part Name: LH SIDE COVER, LONG MODEL
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: NEBULA BLACK
Price: 69,00 € : 69,00 €
12
P/N (SKU): 9CQV-042021-3000-0PG02
Part Name: LONG MODEL LH SIDE COVER
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: JET BLACK
Price: 48,00 € : 48,00 €
-+
13
P/N (SKU): 30110-421130010
Part Name: SELF-TAPPING SCREW
Effective: 2025-09-11
Remarks: null
Alternative parts: 30110-420130070
Specification: ST4.2x13@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
14
P/N (SKU): 30118-480160010
Part Name: SELF-TAPPING SCREW
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: ST4.8x16@COLOR ZINC-PLATED
Price: 1,50 € : 1,50 €
15
P/N (SKU): 8080-040064
Part Name: FRONT FENDER DAMPER
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9DQV-042027-3000
Part Name: LOCK CAP
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 4,00 € : 4,00 €
-+
17
P/N (SKU): 9CQV-042022-3000-0RM00
Part Name: RH SIDE COVER, LONG MODEL
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: MAGMA RED
Price: 66,00 € : 66,00 €
17
P/N (SKU): 9CQV-042022-3000-0K100
Part Name: LONG MODEL RH SIDE COVER
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: TRUE TIMBER KANATI
Price: 68,40 € : 68,40 €
17
P/N (SKU): 9CQV-042022-3000-0YD00
Part Name: RH SIDE COVER, LONG MODEL
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: LAVA ORANGE
Price: 56,00 € : 56,00 €
17
P/N (SKU): 9CQV-042022-3000-0P800
Part Name: RH SIDE COVER, LONG MODEL
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: HUNTER GREEN
Price: 34,00 € : 34,00 €
17
P/N (SKU): 9CQV-042022-3000-0BM00
Part Name: RH SIDE COVER, LONG MODEL
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: NEBULA BLACK
Price: 71,00 € : 71,00 €
17
P/N (SKU): 9CQV-042022-3000-0PG02
Part Name: LONG MODEL RH SIDE COVER
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: JET BLACK
Price: 48,00 € : 48,00 €
-+
18
P/N (SKU): 9DQV-042011-3000
Part Name: FUEL TANK UPPER PANEL
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: null
Price: 19,00 € : 19,00 €
-+
19
P/N (SKU): 8080-000002
Part Name: CLAMP
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Specification: ST4.8
Price: 1,50 € : 1,50 €
-+
20
P/N (SKU): 9060-038129
Part Name: HEAT INSULATOR SPONGE STRIP 1
Effective: 2025-09-11
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
