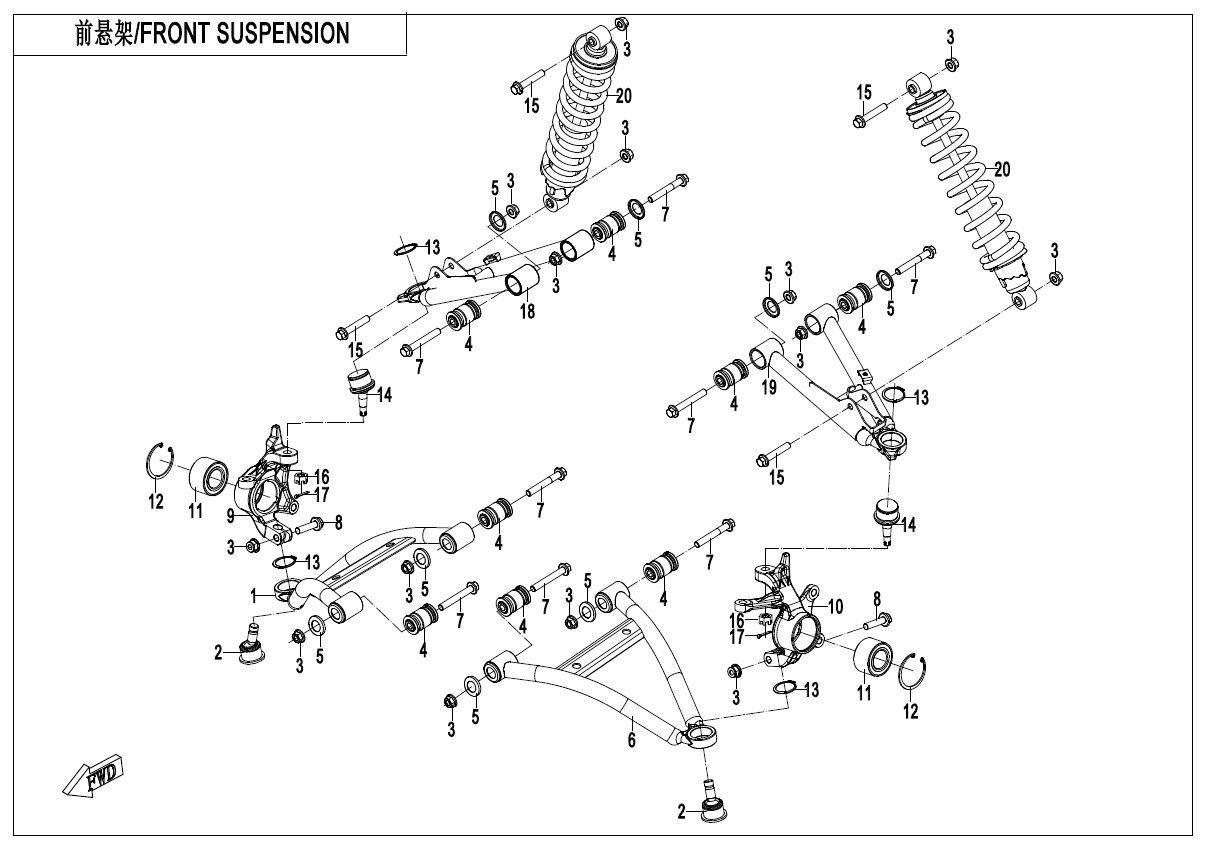

FRONT SUSPENSION - F05

FRONT SUSPENSION - F05

No.

1
P/N (SKU): 9DQV-050410-3001-0BP00
Part Name: FRONT RH LOWER SWING ARM ASSY
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 59,00 € : 59,00 €
-+
2
P/N (SKU): 9010-050800-20000
Part Name: LOWER BALL PIN ASSY.
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Price: 34,00 € : 34,00 €
2
P/N (SKU): 9DQV-056200-3000-M2
Part Name: LOWER BALL PIN ASSY
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
3
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 9DQV-050900-3000
Part Name: CUSHION SLEEVE ASSY
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: null
Price: 4,50 € : 4,50 €
-+
5
P/N (SKU): 9DSV-050900-6K00
Part Name: CUSHION SLEEVE CAP
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: null
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 9DQV-050210-3001-0BP00
Part Name: FRONT LH LOWER SWING ARM ASSY
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 59,00 € : 59,00 €
-+
7
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
8
P/N (SKU): 30006-102045810
Part Name: BOLT
Effective: 2026-01-24
Remarks: null
Alternative parts: F03V-100001-1000
Specification: M10×1.25×45
Price: 2,00 € : 2,00 €
9
P/N (SKU): 9DQV-050801-3000
Part Name: RH STEERING KNUCKLE
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: null
Price: 61,00 € : 61,00 €
-+
10
P/N (SKU): 9DQV-050701-3000
Part Name: LH STEERING KNUCKLE
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: null
Price: 61,00 € : 61,00 €
-+
11
P/N (SKU): 9GQ0-050710
Part Name: BEARING, HUB
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Price: 32,00 € : 32,00 €
-+
12
P/N (SKU): 30800-05505
Part Name: CIRCLIP FOR HOLE
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: BLACK
Price: 2,50 € : 2,50 €
-+
13
P/N (SKU): 30801-03405
Part Name: CIRCLIPS FOR SHAFT
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: 34
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 9DQV-056100-3000
Part Name: UPPER BALL PIN ASSY
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: null
Price: 14,70 € : 14,70 €
-+
14
P/N (SKU): 9DQV-056100-3000-M2
Part Name: TOP BALL PIN
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: CCVI
Price: 0,00 € : 0,00 €
15
P/N (SKU): 30006-102055810
Part Name: BOLT
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: M10×1.25×55
Price: 2,00 € : 2,00 €
16
P/N (SKU): 30207-102810
Part Name: NUT M10x1.25
Effective: 2026-01-24
Remarks: null
Alternative parts: 9010-100002
Specification: M10x1.25
Price: 3,00 € : 3,00 €
17
P/N (SKU): 30903-0201610
Part Name: COTTER PIN
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: φ2×16
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 9DQV-050310-3000-0BP00
Part Name: FRONT RH UPPER SWING ARM ASSY
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 61,00 € : 61,00 €
-+
19
P/N (SKU): 9DQV-050110-3000-0BP00
Part Name: FRONT LH UPPER SWING ARM ASSY
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: MAUD SPIRIT BLACK
Price: 60,00 € : 60,00 €
-+
20
P/N (SKU): 9DQV-050500-3000
Part Name: FRONT SHOCK ABSORBER ASSY
Effective: 2026-01-24
Remarks: null
Alternative parts: null
Specification: null
Price: 113,00 € : 113,00 €
-+
