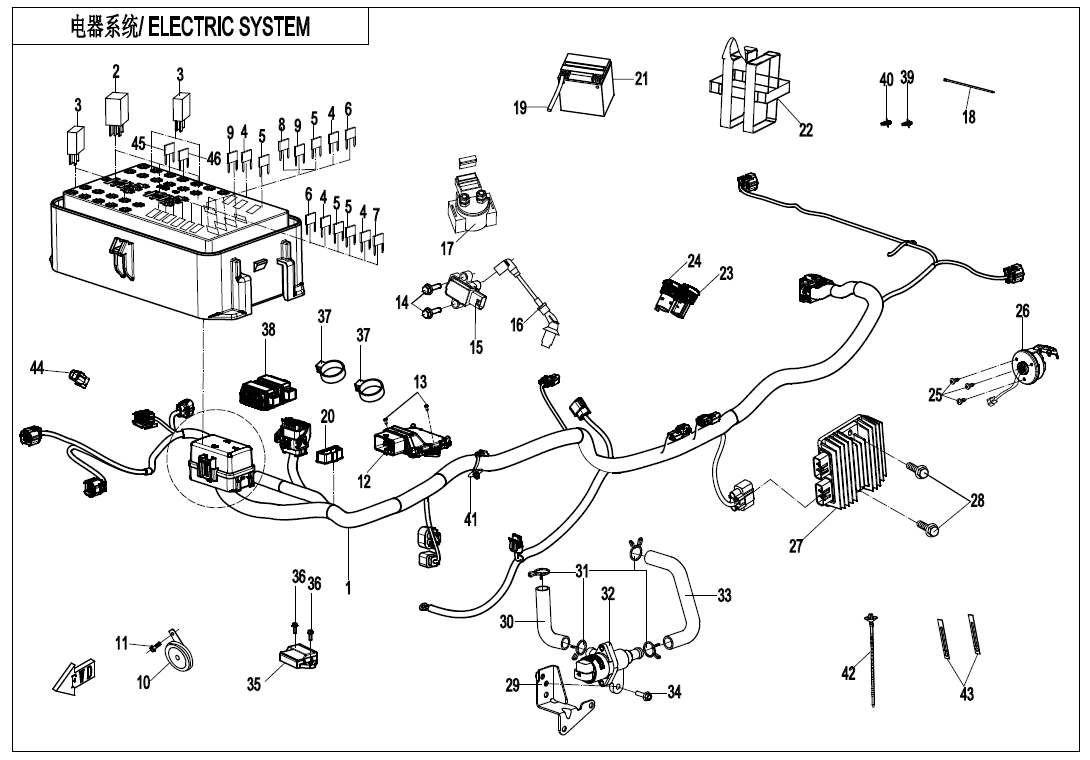

ELECTRIC SYSTEM(ABS) - F15-1-B-V2

ELECTRIC SYSTEM(ABS) - F15-1-B-V2

No.

01
P/N (SKU): 9CQV-150100-8703
Part Name: MAIN CABLE
Effective: 2025-09-11
Remarks: ABS
Price: 330,50 € : 330,50 €
-+
02
P/N (SKU): 9010-150350
Part Name: AUXILIARY RELAY
Effective: 2025-09-11
Price: 7,00 € : 7,00 €
-+
03
P/N (SKU): CFCV-150525-2000-M1
Part Name: AUXILIARY RELAY
Effective: 2025-09-11
Price: 5,00 € : 5,00 €
-+
04
P/N (SKU): 806A-151305
Part Name: 15A FUSE
Effective: 2025-09-11
Specification: 15A
Price: 1,50 € : 1,50 €
-+
05
P/N (SKU): 806A-151302
Part Name: 10A FUSE
Effective: 2025-09-11
Specification: 10A
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 806A-151307
Part Name: 25A FUSE
Effective: 2025-09-11
Price: 1,50 € : 1,50 €
-+
07
P/N (SKU): 5BY0-150301
Part Name: 30A FUSE
Effective: 2025-09-11
Price: 1,50 € : 1,50 €
-+
08
P/N (SKU): 5BY0-150302
Part Name: 40A FUSE
Effective: 2025-09-11
Price: 1,50 € : 1,50 €
-+
09
P/N (SKU): 806A-151301
Part Name: 7.5A FUSE
Effective: 2025-09-11
Specification: 7.5A
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 5020-150700
Part Name: ELECTRIC HORN
Effective: 2025-09-11
Alternative parts: EG4V-150600-1000
Price: 11,00 € : 11,00 €
-+
11
P/N (SKU): 30006-080014810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-09-11
Specification: M8×14
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 9DRV-001000-D800
Part Name: ECM ASSY
Effective: 2025-09-11
Remarks: ABS
Specification: MSE8.0
Price: 108,00 € : 108,00 €
-+
13
P/N (SKU): 30102-060016810
Part Name: HEXAGON SOCKET HEAD CAP SCREWS
Effective: 2025-09-11
Specification: M6x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
14
P/N (SKU): 30006-060025810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-09-11
Specification: M6×25
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 018B-178000
Part Name: IGNITION COIL
Effective: 2025-09-11
Price: 41,00 € : 41,00 €
-+
16
P/N (SKU): 0GR0-178000-10000
Part Name: HIGH-TENSION CABLE
Effective: 2025-09-11
Price: 15,00 € : 15,00 €
-+
17
P/N (SKU): 9CR6-150310
Part Name: STARTER RELAY
Effective: 2025-09-11
Price: 25,00 € : 25,00 €
-+
18
P/N (SKU): 8010-150003
Part Name: TIE BAND
Effective: 2025-09-11
Specification: 5x250
Price: 1,50 € : 1,50 €
-+
19
P/N (SKU): 9CQV-150420-3001
Part Name: NEGATIVE CABLE, BATTERY
Effective: 2025-09-11
Price: 29,00 € : 29,00 €
-+
20
P/N (SKU): CFCV-11H016-2000-M1
Part Name: DIAGNOSIS CONNECTOR COVER
Effective: 2025-09-11
Price: 1,50 € : 1,50 €
-+
21
P/N (SKU): 9DQV-151600-4401-M1
Part Name: BATTERY
Effective: 2025-09-11
Specification: 28Ah
Price: 131,00 € : 131,00 €
-+
22
P/N (SKU): 9060-152100
Part Name: BATTERY BELT
Effective: 2025-09-11
Price: 4,00 € : 4,00 €
-+
23
P/N (SKU): 9DSV-151200-6000
Part Name: USB OUTPUT SOCKET ASSY
Effective: 2025-09-11
Price: 21,00 € : 21,00 €
-+
24
P/N (SKU): 9DSV-150500-6R01
Part Name: POWER OUTLET SOCKET ASSY
Effective: 2025-09-11
Price: 22,00 € : 22,00 €
-+
25
P/N (SKU): 30105-050030410
Part Name: PAN HEAD SCREWS WITH CROSS RECESS
Effective: 2025-09-11
Specification: M5x30
Price: 1,50 € : 1,50 €
-+
26
P/N (SKU): 9DQV-151300-3100-10
Part Name: TRAILER POWER SOCKET
Effective: 2025-09-11
Price: 37,00 € : 37,00 €
-+
27
P/N (SKU): 9DQV-151000-3000
Part Name: REGULATOR
Effective: 2025-09-11
Alternative parts: 9DQV-151000-3001-10
Price: 137,00 € : 137,00 €
-+
28
P/N (SKU): 30006-060030810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-09-11
Specification: M6×30
Price: 1,50 € : 1,50 €
-+
29
P/N (SKU): 9GQA-030010-20000
Part Name: STEPPER MOTOR BRACKET ASSY
Effective: 2025-09-11
Price: 4,50 € : 4,50 €
-+
30
P/N (SKU): 9GQV-001002-9000
Part Name: STEPPER MOTOR EXHAUST PIPE
Effective: 2026-07-29
Price: 6,60 € : 6,60 €
-+
30
P/N (SKU): 9GQA-001002
Part Name: STEPPER MOTOR EXHAUST PIPE
Effective: 2025-09-11
Alternative parts: 9GQV-001002-9000
Price: 12,00 € : 12,00 €
31
P/N (SKU): 30601-118010
Part Name: STEEL WIRE ELASTIC RING HOOP
Effective: 2025-09-11
Specification: A18
Price: 1,50 € : 1,50 €
-+
32
P/N (SKU): 0GQ0-175000
Part Name: STEPPER MOTOR ASSY
Effective: 2025-09-11
Price: 90,00 € : 90,00 €
-+
33
P/N (SKU): 9GQV-001001-9000
Part Name: STEPPER MOTOR AIR INLET PIPE
Effective: 2026-07-29
Price: 0,00 € : 0,00 €
-+
33
P/N (SKU): 9GQA-001001
Part Name: STEPPER MOTOR INLET PIPE
Effective: 2025-09-11
Alternative parts: 9GQA-001001-00001/9GQV-001001-9000
Price: 18,00 € : 18,00 €
-+
34
P/N (SKU): 0010-013009-0010
Part Name: BOLT M6x40
Effective: 2025-09-11
Specification: GALVANIZED TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
35
P/N (SKU): 9DRV-161000-B002
Part Name: FLASHER
Effective: 2025-09-11
Price: 36,00 € : 36,00 €
-+
36
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2025-09-11
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
37
P/N (SKU): 6KMV-150901-B002
Part Name: T-BOX RUBBER RING
Effective: 2025-09-11
Price: 2,00 € : 2,00 €
-+
38
P/N (SKU): SN1V-691100-1201-11
Part Name: T-BOX
Effective: 2025-09-11
Remarks: AllyTech, Eurasia, Africa and Australia except Turkey
Specification: @Eurasia and Africa and Australia except Turkey,BN,IN,BD,MN,NP
Price: 420,00 € : 420,00 €
-+
38
P/N (SKU): SN1V-691100-1501-11
Part Name: T-BOX
Effective: 2025-09-11
Remarks: Turkey_Allytech
Specification: Turkey
Price: 420,00 € : 420,00 €
-+
39
P/N (SKU): A000-050015
Part Name: WIRE CLIP, FRONT BRAKE FLUID HOSE
Effective: 2025-09-11
Price: 1,50 € : 1,50 €
-+
40
P/N (SKU): CFCV-CBC001-2001-M1
Part Name: CLIP
Effective: 2025-09-11
Price: 2,00 € : 2,00 €
-+
41
P/N (SKU): 9DS#-150009-6100-M1
Part Name: TIE BAND ZDG
Effective: 2025-09-11
Specification: 4.7x194@ZDG4.7X194
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 7030-150005
Part Name: TIE BAND
Effective: 2025-09-11
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 0180-014010
Part Name: WIRE CLAMP
Effective: 2025-09-11
Alternative parts: 6WWV-030080-8000
Price: 1,50 € : 1,50 €
-+
44
P/N (SKU): CFCV-156103-2000
Part Name: T-BOX CONNECTOR PLUG
Effective: 2025-09-11
Alternative parts: CFCV-156122-2000-M1
Price: 6,00 € : 6,00 €
45
P/N (SKU): 806A-151308
Part Name: 30A FUSE
Effective: 2025-09-11
Price: 2,00 € : 2,00 €
-+
46
P/N (SKU): 806A-151306
Part Name: 20A FUSE
Effective: 2025-09-11
Price: 2,00 € : 2,00 €
-+
