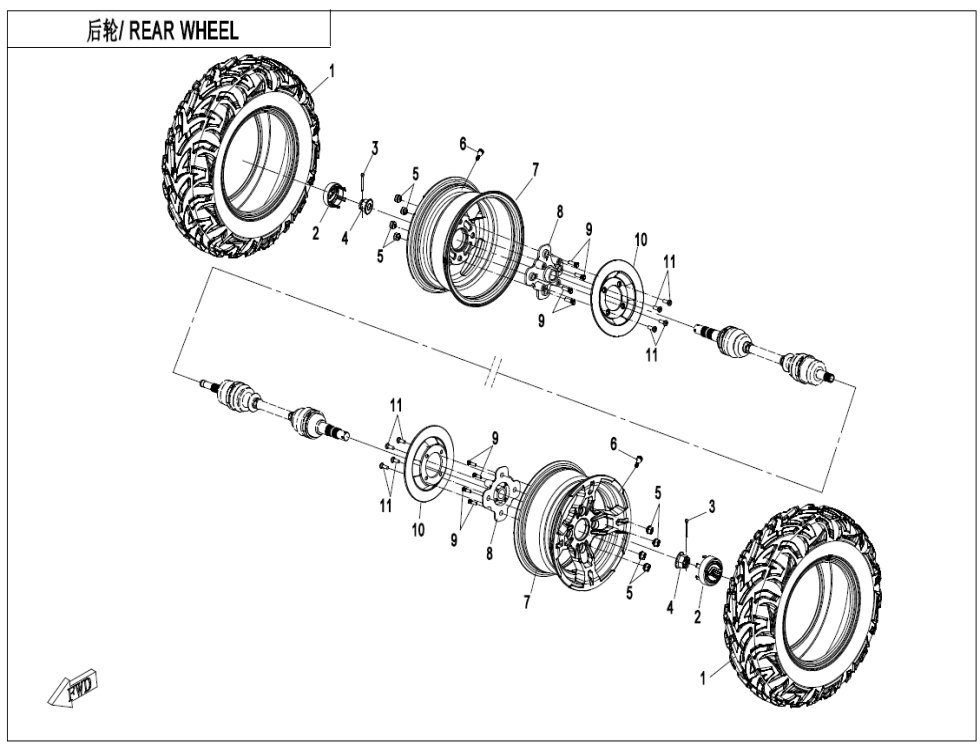

REAR WHEEL(ALUMINUM) - F11-A

REAR WHEEL(ALUMINUM) - F11-A

No.

01
P/N (SKU): 30703-1276
Part Name: TIRE
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 25x10-12 6PR(67J)@ENVIRONMENTAL VACUUM TIRE@WITH CFMOTO LOGO
Price: 151,00 € : 151,00 €
01
P/N (SKU): 30703-1256
Part Name: TIRE
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 25x10-12(270/60-12)47J@CROSS-TREADED TIRES
Price: 179,10 € : 179,10 €
02
P/N (SKU): 5ASV-070101-6001
Part Name: DECO COVER
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: ALUMINUM RIM
Price: 14,00 € : 14,00 €
-+
03
P/N (SKU): 30903-0403610
Part Name: COTTER PIN
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: 40x36@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
04
P/N (SKU): 5HYV-110001-1F00
Part Name: HEX FLANGE NUT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
05
P/N (SKU): 9010-070002-A000
Part Name: MOUNTING NUT, RIM
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: CHROME PLATED
Price: 2,50 € : 2,50 €
-+
06
P/N (SKU): 5190-070030-1000
Part Name: INFLATION VALVE
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 6,50 € : 6,50 €
07
P/N (SKU): 9CSV-110100-6R00-11
Part Name: REAR RIM
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: FULL MATTE BLACK@ALUMINUM RIM@12x7.5AT
Price: 167,00 € : 167,00 €
-+
08
P/N (SKU): 9AWV-110001-2B01
Part Name: REAR WHEEL HUB
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Specification: null
Price: 39,00 € : 39,00 €
-+
09
P/N (SKU): 9010-070201
Part Name: FRONT WHEEL BRACKET BOLT
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 7020-080004-00001
Part Name: REAR BRAKE DISC
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 37,00 € : 37,00 €
-+
11
P/N (SKU): A000-080001
Part Name: SCREW
Effective: 2025-05-29
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
-+
