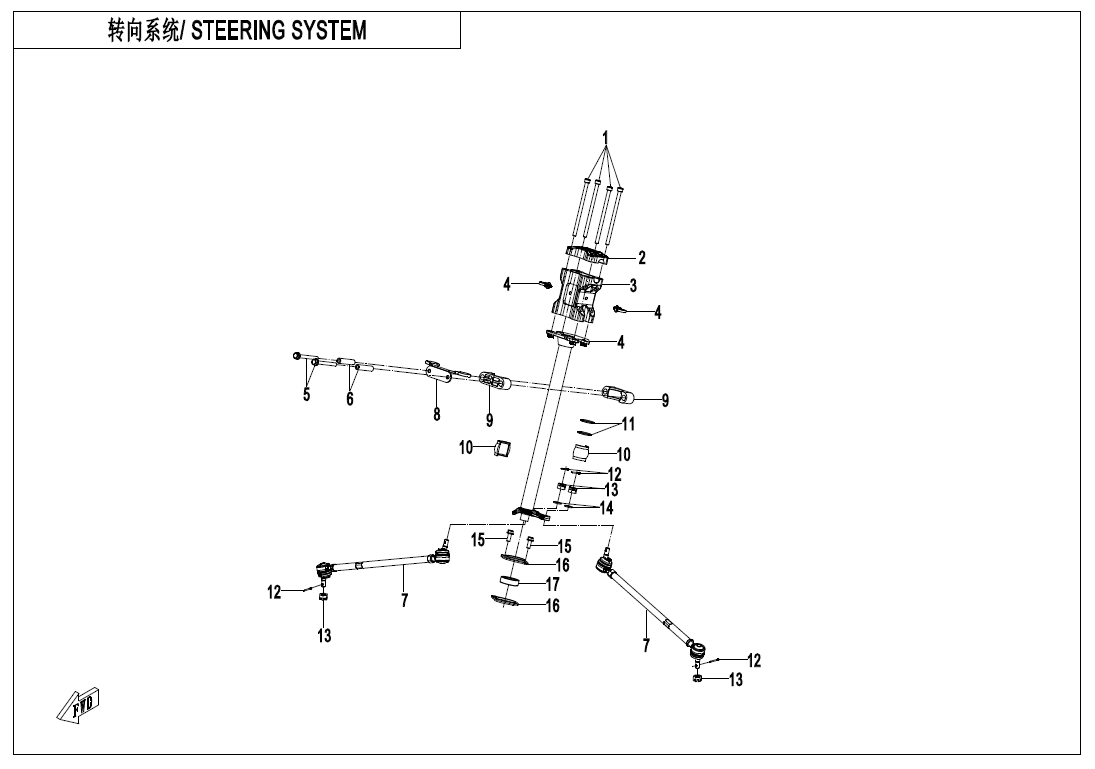

STEERING SYSTEM - F10-2-A

STEERING SYSTEM - F10-2-A

No.

1
P/N (SKU): 9DQV-100003-1100
Part Name: INNER HEX SCREW M8×140
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
2
P/N (SKU): 9DQV-100001-1100-0DZ00
Part Name: HANDLEBAR PRESS COVER
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: JET BLACK
Price: 0,00 € : 0,00 €
3
P/N (SKU): 9DQV-100002-1100-0DZ00
Part Name: HANDLEBAR BRACKET
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: JET BLACK
Price: 0,00 € : 0,00 €
4
P/N (SKU): 9DQV-102100-1100
Part Name: STEERING SHAFT ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
5
P/N (SKU): 30006-080070810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: SURFACE TREATMENT COLOR ZINC
Price: 0,00 € : 0,00 €
6
P/N (SKU): 7020-100604-00001
Part Name: BUSHING
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
7
P/N (SKU): 9DQV-104100-1100
Part Name: STEERING ROD
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
8
P/N (SKU): 9DQV-108100-1100
Part Name: LINER ASSY
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
9
P/N (SKU): 7020-100601-00001
Part Name: OUTER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Price: 5,00 € : 5,00 €
-+
10
P/N (SKU): 7020-100602
Part Name: INNER BUSHING, STEERING SHAFT SPHERICAL
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Price: 9,00 € : 9,00 €
-+
11
P/N (SKU): 30502-032800N
Part Name: O-RING RUBBER SEALS
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: 32x1.8
Price: 1,50 € : 1,50 €
-+
12
P/N (SKU): 30903-0252010
Part Name: SPLIT PINS
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: 2.5x20
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 9010-100002
Part Name: 1-TYPE NUT
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: M10x1.25
Price: 2,00 € : 2,00 €
-+
14
P/N (SKU): 30306-100112
Part Name: PLAIN WASHERS
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: φ10
Price: 1,50 € : 1,50 €
-+
15
P/N (SKU): 30006-080020810
Part Name: HEXAGON FLANGE BOLTS
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: M8x20@COLOR ZINC PLATED
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9DQV-109100-1100
Part Name: STEERING SHAFT SEAT
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 2,80 € : 2,80 €
-+
17
P/N (SKU): 30414-02000
Part Name: OUTER SPHERICAL BALL BEARING
Effective: 2026-02-06
Remarks: null
Alternative parts: null
Specification: null
Price: 9,35 € : 9,35 €
-+
