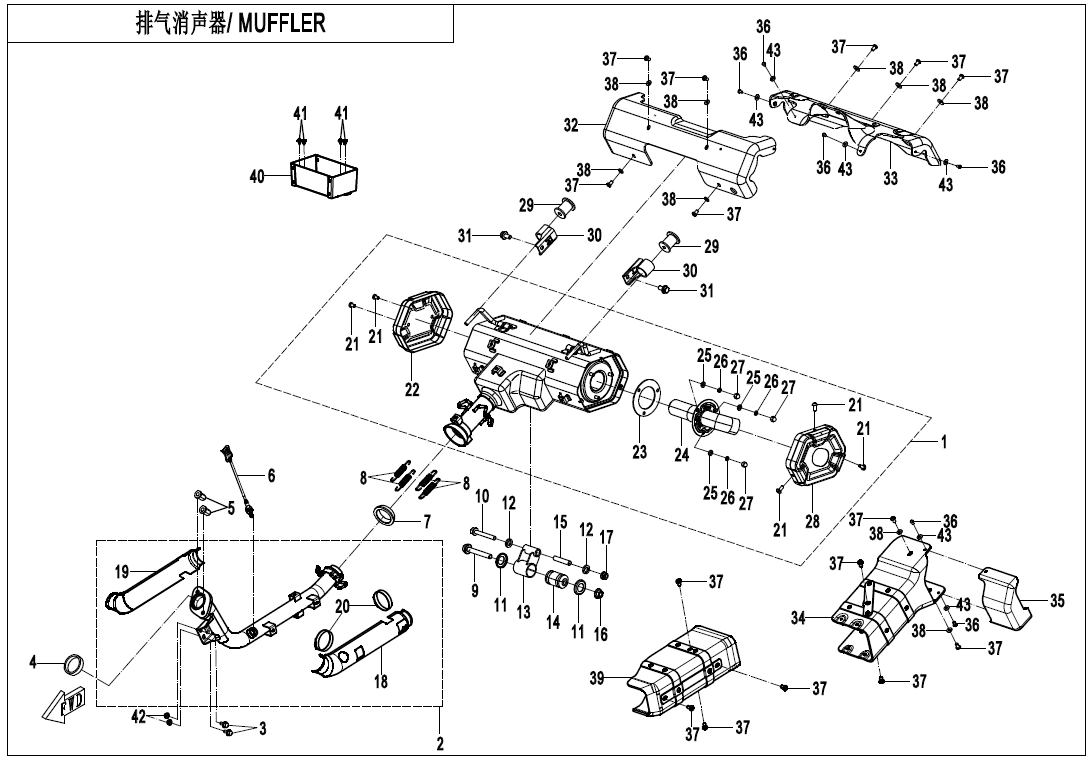

MUFFLER - F02

MUFFLER - F02

No.

1
P/N (SKU): 9DQV-021200-1102
Part Name: MUFFLER ASSY
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 0,00 € : 0,00 €
2
P/N (SKU): 9CQV-021100-1301
Part Name: EXHAUST PIPE ASSY
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 0,00 € : 0,00 €
3
P/N (SKU): 30006-060016810
Part Name: BOLT
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: M6×16
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 0800-022300
Part Name: EXHAUST PIPE GASKET ASSY
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 4,50 € : 4,50 €
-+
5
P/N (SKU): 8010-020001
Part Name: NUT M8, MUFFLER JOINT
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
6
P/N (SKU): 0HU0-176000
Part Name: OXYGEN SENSOR
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 84,00 € : 84,00 €
-+
7
P/N (SKU): 9AWA-021003-00002
Part Name: SMALL GRAPHITE RING
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: null
Price: 12,00 € : 12,00 €
-+
8
P/N (SKU): 9CR6-020002-00001
Part Name: DRAG SPRING,MUFFLER
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
9
P/N (SKU): 30006-102070810
Part Name: BOLT
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: M10x1.25x70@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
10
P/N (SKU): 30006-080065810
Part Name: BOLT
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: M8x65
Price: 1,50 € : 1,50 €
-+
11
P/N (SKU): 9010-050003
Part Name: CUSHION SLEEVE CAP
Effective: 2025-12-08
Remarks: null
Alternative parts: 9DSV-050900-6K00
Price: 2,00 € : 2,00 €
12
P/N (SKU): 9CR6-020003
Part Name: WIRE WASHER
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
13
P/N (SKU): 9CR6-020020-00001
Part Name: MUFFLER MOUNT ASSY
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
14
P/N (SKU): 5BY0-020030-00001
Part Name: CUSHION SLEEVE ASSY
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: null
Price: 15,00 € : 15,00 €
-+
15
P/N (SKU): 7020-020001
Part Name: MUFFLER LINER
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
16
P/N (SKU): 30204-102810
Part Name: NUT
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: M10×1.25
Price: 1,50 € : 1,50 €
17
P/N (SKU): 30204-080810
Part Name: LOCK NUT
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: M8
Price: 1,50 € : 1,50 €
-+
18
P/N (SKU): 9CRV-021102-1301
Part Name: EXHAUST PIPE LH PANEL
Effective: 2025-12-08
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
19
P/N (SKU): 9CRV-021101-1301
Part Name: EXHAUST PIPE RH PANEL
Effective: 2025-12-08
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
20
P/N (SKU): 7030-021305
Part Name: A-TYPE SCREW CLAMP
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 4,00 € : 4,00 €
21
P/N (SKU): 30006-060012870
Part Name: BOLTM6x12
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: BLACK ZINC-PLATED
Price: 1,50 € : 1,50 €
-+
22
P/N (SKU): 9DQV-021206-1100
Part Name: RH DECO COVER
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
23
P/N (SKU): 9DS#-021001-6000
Part Name: SEAL GASKET,GRAPHITE
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 3,00 € : 3,00 €
-+
24
P/N (SKU): 9GQ0-021320
Part Name: SPARK ARRESTOR
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 11,00 € : 11,00 €
25
P/N (SKU): 30306-060800
Part Name: WASHER
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: φ6
Price: 2,00 € : 2,00 €
26
P/N (SKU): 30303-060900
Part Name: WASHER φ6
Effective: 2025-12-08
Remarks: null
Alternative parts: 30303-060112
Specification: 6
Price: 1,50 € : 1,50 €
27
P/N (SKU): 30220-060810
Part Name: NUT
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
28
P/N (SKU): 9DQV-021205-1100
Part Name: LH DECO COVER
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
29
P/N (SKU): 9GQ0-020002
Part Name: RUBBER BUSHING, MUFFLER
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 2,50 € : 2,50 €
-+
30
P/N (SKU): 9DQV-032007-1100
Part Name: MUFFLER UPPER BRACKET
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
31
P/N (SKU): 30006-080016810
Part Name: BOLT
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: M8x16@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
32
P/N (SKU): 9DQV-021340-1100
Part Name: MUFFLER BODY HEAT INSULATOR GUARD 2
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
33
P/N (SKU): 9DQV-021320-1100
Part Name: MUFFLER BODY HEAT INSULATOR GUARD
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
34
P/N (SKU): 9CRV-021130-1301
Part Name: EXHAUST PIPE HEAT INSULATOR ASSY 1
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
35
P/N (SKU): 9DQV-021120-1100
Part Name: EXHAUST HEAT INSULATION GUARD 1
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
36
P/N (SKU): 30902-0401200
Part Name: BLIND RIVET
Effective: 2025-12-08
Alternative parts: null
Price: 0,00 € : 0,00 €
37
P/N (SKU): 30006-060012810
Part Name: BOLT
Effective: 2025-12-08
Remarks: null
Alternative parts: 30006-060012870
Specification: M6×12
Price: 1,50 € : 1,50 €
38
P/N (SKU): 30309-060900
Part Name: WASHER
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 1,50 € : 1,50 €
39
P/N (SKU): 9CQV-021140-1301
Part Name: EXHAUST PIPE HEAT INSULATOR ASSY 2
Effective: 2025-12-08
Remarks: null
Alternative parts: null
Price: 0,00 € : 0,00 €
40
P/N (SKU): 9DQV-021360-1100
Part Name: BATTERY BOX HEAT INSULATOR
Effective: 2025-12-12
Remarks: null
Alternative parts: null
Specification: null
Price: 0,00 € : 0,00 €
41
P/N (SKU): 5BWV-040016-5000
Part Name: INNER HEX SLEF-TAPPING SCREW ST4.8x16
Effective: 2025-12-10
Remarks: null
Alternative parts: 5BWV-040015-5000
Specification: ST4.8x16
Price: 1,50 € : 1,50 €
-+
42
P/N (SKU): 30202-060110
Part Name: NUT
Effective: 2025-12-10
Alternative parts: 30204-060810
Specification: M6@COLOR ZINC TRIVALENT CHROMIUM
Price: 1,50 € : 1,50 €
-+
43
P/N (SKU): 30305-040112
Part Name: WASHER
Effective: 2025-12-10
Remarks: null
Alternative parts: null
Specification: 4
Price: 1,50 € : 1,50 €
