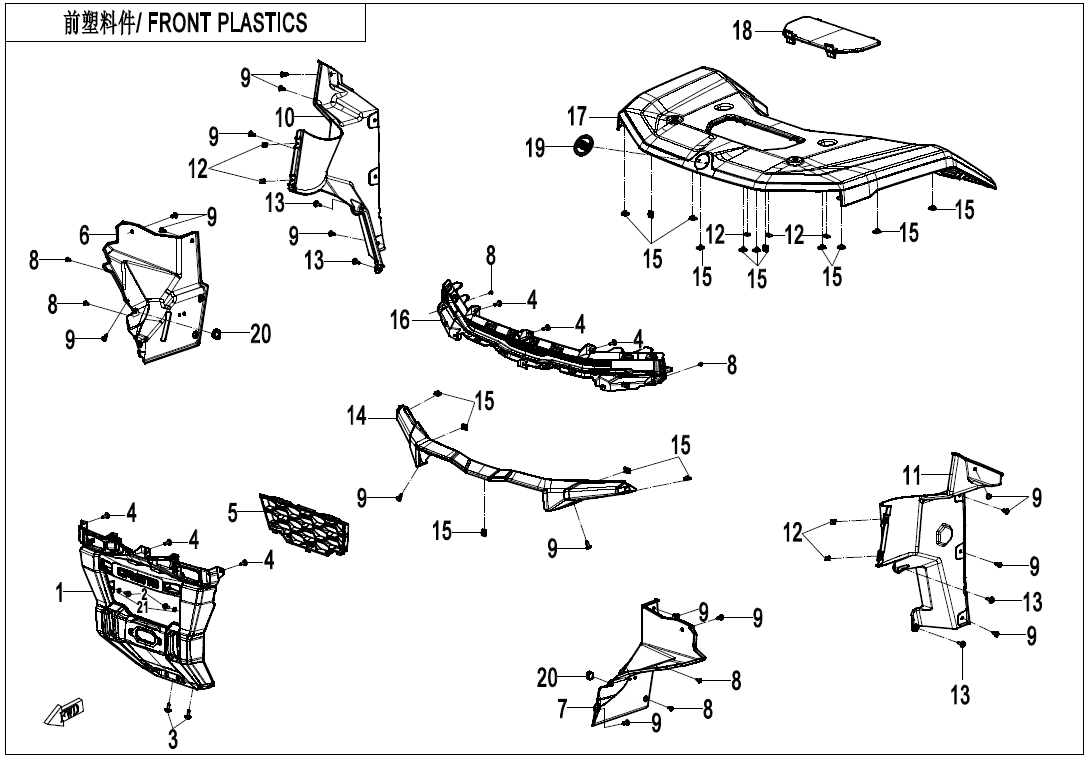

FRONT PLASTICS - F04-1

FRONT PLASTICS - F04-1

No.

1
P/N (SKU): 9DQV-041011-1101
Part Name: FRONT GUARD
Effective: 2025-12-01
Remarks: WITH TOWING WINCH
Alternative parts: 9DQV-041011-1102
Specification: null
Price: 19,20 € : 19,20 €
-+
1
P/N (SKU): 9DQV-041011-1102
Part Name: FRONT GUARD
Effective: 2026-06-30
Remarks: null
Alternative parts: 9DQV-041011-1103
Specification: null
Price: 19,20 € : 19,20 €
2
P/N (SKU): 30006-102025870
Part Name: HEXAGON FLANGE BOLTS
Effective: 2025-12-01
Alternative parts: null
Specification: M10×25
Price: 2,00 € : 2,00 €
3
P/N (SKU): 5BWV-040001-5000
Part Name: INNER HEX BOLT
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: M6x14
Price: 1,50 € : 1,50 €
-+
4
P/N (SKU): 5BWV-040008-5000
Part Name: INNER HEX BOLT M6x20
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: M6x20
Price: 1,50 € : 1,50 €
-+
5
P/N (SKU): 9DQV-041036-1100
Part Name: FRONT GRILL PLATE
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: null
Price: 6,00 € : 6,00 €
-+
6
P/N (SKU): 9DQV-042045-1100
Part Name: FRONT RH INNER FENDER 1
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
-+
7
P/N (SKU): 9DQV-042035-1100
Part Name: FRONT LH INNER FENDER 1
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: null
Price: 11,00 € : 11,00 €
8
P/N (SKU): 5BWV-040016-5000
Part Name: ST4.8×16 INNER HEX SELF-TAPPING SCREW
Effective: 2025-12-01
Remarks: null
Alternative parts: 5BWV-040015-5000
Specification: ST4.8x16
Price: 1,50 € : 1,50 €
-+
9
P/N (SKU): 9060-040310
Part Name: CLAMP ASSY
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Price: 2,00 € : 2,00 €
-+
10
P/N (SKU): 9DQV-041026-1100
Part Name: FRONT RH INNER FEDNER
Effective: 2025-12-01
Remarks: null
Alternative parts: 9DQV-041026-1101
Specification: null
Price: 13,50 € : 13,50 €
-+
11
P/N (SKU): 9DQV-041025-1100
Part Name: FRONT LH INNER FEDNER
Effective: 2025-12-01
Remarks: null
Alternative parts: 9DQV-041025-1101
Specification: null
Price: 13,50 € : 13,50 €
-+
12
P/N (SKU): 5020-040049
Part Name: CLAMP ST4.8
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: ST4.8
Price: 1,50 € : 1,50 €
-+
13
P/N (SKU): 9DQV-040002-1100
Part Name: HEX COLLAR/INNER HEX COMBINATION BOLT
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: null
Price: 0,91 € : 0,91 €
14
P/N (SKU): 9DQV-041017-1101-0AC00
Part Name: FRONT GUARD CONNECTING PARTS
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: CYPRESS GREEN
Price: 9,35 € : 9,35 €
14
P/N (SKU): 9DQV-041017-1101-0PH00
Part Name: FRONT GUARD CONNECTING PARTS
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: GEDANITE GRAY
Price: 9,35 € : 9,35 €
-+
15
P/N (SKU): 8030-040800-00001
Part Name: NUT CLIP M6
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: M6
Price: 1,50 € : 1,50 €
-+
16
P/N (SKU): 9DQV-041012-1101-0BU00
Part Name: HEADLIGHT PANEL
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: MIST SILVER BLACK
Price: 28,81 € : 28,81 €
17
P/N (SKU): 9DQV-041013-1101-0PH00
Part Name: FRONT FENDER
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: GEDANITE GRAY
Price: 38,80 € : 38,80 €
-+
17
P/N (SKU): 9DQV-041013-1101-0AC00
Part Name: FRONT FENDER
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: CYPRESS GREEN
Price: 38,80 € : 38,80 €
-+
18
P/N (SKU): 9DQV-041014-1100-0AC00
Part Name: FRONT SERVICE COVER
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: CYPRESS GREEN
Price: 6,00 € : 6,00 €
-+
18
P/N (SKU): 9DQV-041014-1100-0PH00
Part Name: FRONT SERVICE COVER
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: GEDANITE GRAY
Price: 6,00 € : 6,00 €
-+
19
P/N (SKU): 9DQV-190019-1100
Part Name: CFMOTO STICKER
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: null
Price: 8,25 € : 8,25 €
-+
20
P/N (SKU): FE4V-041031-3000
Part Name: HEADLIGHT ADJUSTMENT HOLE PLUG
Effective: 2025-12-01
Remarks: null
Alternative parts: null
Specification: null
Price: 0,91 € : 0,91 €
-+
21
P/N (SKU): 30303-100112
Part Name: SPRING COIL SPRING LOCK WASHERS
Effective: 2026-06-30
Remarks: null
Alternative parts: null
Specification: φ10
Price: 1,50 € : 1,50 €
