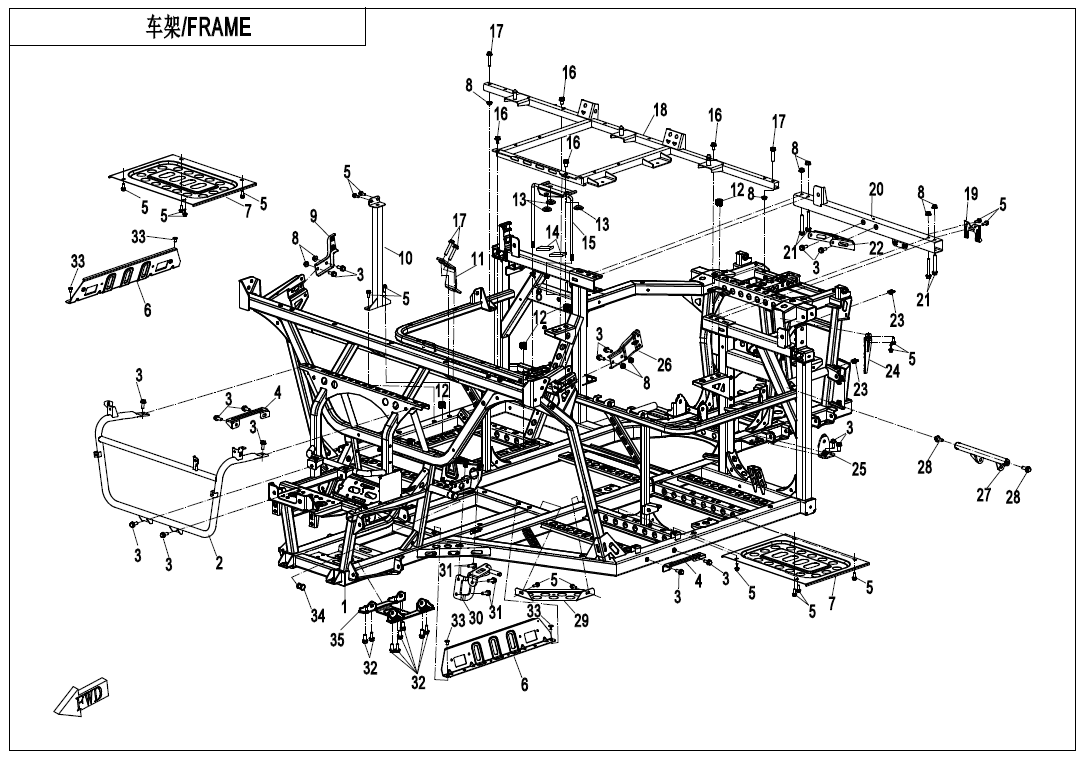

FRAME - F03 | 2025, UTV, CF1000UTR-3

No.

P/N (SKU)

Part Name

Price

Your price

P/N (SKU): 5HY0-031000-J0000

Part Name: FRAME ASSY

Effective: 2024-05-08

Alternative parts:

Price: 2 543,40 € : 2 543,40 €

P/N (SKU): 5HY0-030100-10000

Part Name: PROTECTION PIPE, RESERVOIR

Effective: 2024-05-08

Alternative parts:

Specification: ELECTROPHORESIS BLACK

Price: 35,90 € : 35,90 €

P/N (SKU): 30006-080020810

Part Name: BOLT

Effective: 2024-05-08

Alternative parts:

Specification: M8Ã20

Price: 1,00 € : 1,00 €

P/N (SKU): 5HY0-030003

Part Name: FOOTREST BRACKET

Effective: 2024-05-08

Alternative parts:

Price: 7,70 € : 7,70 €

P/N (SKU): 30006-060016810

Part Name: BOLT

Effective: 2024-05-08

Alternative parts:

Specification: M6Ã16

Price: 1,00 € : 1,00 €

P/N (SKU): 5HYV-030070-1H00

Part Name: ACCESSORY BRACKET

Effective: 2024-05-08

Alternative parts:

Price: 19,80 € : 19,80 €

P/N (SKU): 5HY0-030090

Part Name: PANEL, FUEL TANK

Effective: 2024-05-08

Alternative parts:

Price: 47,30 € : 47,30 €

P/N (SKU): 30204-080810

Part Name: LOCK NUT

Effective: 2024-05-08

Alternative parts:

Specification: M8

Price: 1,00 € : 1,00 €

P/N (SKU): 5HY0-030430

Part Name: RH LOCK HOOK MOUNTING SEAT

Effective: 2024-05-08

Alternative parts:

Price: 11,75 € : 11,75 €

P/N (SKU): 5HY0-030440-10000

Part Name: SEAT BRACKET

Effective: 2024-05-08

Alternative parts:

Specification: ELECTROPHORESIS BLACK

Price: 11,00 € : 11,00 €

P/N (SKU): 5HY0-030450

Part Name: GEARSHIFT BRACKET

Effective: 2024-05-08

Alternative parts:

Price: 9,90 € : 9,90 €

P/N (SKU): 5020-031001

Part Name: RUBBER SLEEVE, FRONT LICENSE BRACKET

Effective: 2024-05-08

Alternative parts:

Price: 1,70 € : 1,70 €

P/N (SKU): 9010-030005

Part Name: BATTERY RUBBER WASHER

Effective: 2024-05-08

Alternative parts:

Price: 1,00 € : 1,00 €

P/N (SKU): 9010-120008

Part Name: SPONGE PAD, FUEL TANK

Effective: 2024-05-08

Alternative parts:

Price: 1,00 € : 1,00 €

P/N (SKU): 7000-031820

Part Name: BATTERY PRESS PLATE ASSY

Effective: 2024-05-08

Alternative parts:

Price: 11,00 € : 11,00 €

P/N (SKU): 30006-080014810

Part Name: BOLT

Effective: 2024-05-08

Alternative parts:

Specification: M8Ã14

Price: 1,00 € : 1,00 €

P/N (SKU): 30006-080040810

Part Name: BOLT

Effective: 2024-05-08

Alternative parts:

Specification: M8Ã40

Price: 1,80 € : 1,80 €

P/N (SKU): 5HYV-030200-1H00

Part Name: SEAT BRACKET

Effective: 2024-05-08

Alternative parts:

Price: 91,50 € : 91,50 €

P/N (SKU): 5HY0-030060

Part Name: HIGH-VOLTAGE PACK BRACKET

Effective: 2024-05-08

Alternative parts:

Price: 6,00 € : 6,00 €

P/N (SKU): 5HY0-030500-10000

Part Name: REINFORCEMENT PIPE

Effective: 2024-05-08

Remarks: FOR THREE SEATS

Alternative parts:

Specification: ELECTROPHORESIS BLACK

Price: 35,20 € : 35,20 €

P/N (SKU): 5HY0-030500-20000

Part Name: REINFORCEMENT PIPE

Effective: 2024-05-08

Remarks: FOR TWO SEATS

Alternative parts:

Specification: ELECTROPHORESIS BLACK

Price: 39,20 € : 39,20 €

P/N (SKU): 30006-080060810

Part Name: BOLT

Effective: 2024-05-08

Alternative parts:

Specification: M8x60

Price: 2,00 € : 2,00 €

P/N (SKU): 5HY0-030053

Part Name: MOUNT PLATE

Effective: 2024-05-08

Alternative parts:

Price: 7,70 € : 7,70 €

P/N (SKU): 8030-040800-00001

Part Name: NUT CLIP M6

Effective: 2024-05-08

Alternative parts:

Specification: M6

Price: 1,00 € : 1,00 €

P/N (SKU): 5HY0-030410

Part Name: MOUNT SEAT, REGULATOR

Effective: 2024-05-08

Alternative parts:

Price: 9,90 € : 9,90 €

P/N (SKU): 5HY0-030001

Part Name: REAR JOINT PLATE,ENGINE

Effective: 2024-05-08

Alternative parts:

Price: 7,00 € : 7,00 €

P/N (SKU): 5HY0-030420

Part Name: MOUNT SEAT, lh LOCK HOOK

Effective: 2024-05-08

Alternative parts:

Price: 11,75 € : 11,75 €

P/N (SKU): 5HY0-030040

Part Name: MOUNT FRAME, REAR GEAR CASE

Effective: 2024-05-08

Alternative parts:

Specification: ELECTROPHORESIS BLACK

Price: 11,25 € : 11,25 €

P/N (SKU): 30006-102020810

Part Name: BOLT M10x1.25x20

Effective: 2024-05-08

Alternative parts:

Specification: M10x1.25x20

Price: 1,70 € : 1,70 €

P/N (SKU): 5HY0-030004

Part Name: CABLE PANEL

Effective: 2024-05-08

Alternative parts:

Price: 8,50 € : 8,50 €

P/N (SKU): 5HY0-030300

Part Name: FIXED BRACKET, BRAKE PADEL

Effective: 2024-05-08

Alternative parts:

Price: 18,30 € : 18,30 €

P/N (SKU): 30006-080025810

Part Name: BOLT

Effective: 2024-05-08

Alternative parts:

Specification: M8Ã25

Price: 1,00 € : 1,00 €

P/N (SKU): 30006-080016810

Part Name: BOLT

Effective: 2024-05-08

Alternative parts:

Specification: M8Ã16

Price: 1,00 € : 1,00 €

P/N (SKU): A010-120003

Part Name: BOLT M6x16

Effective: 2024-05-08

Alternative parts: 6NQ#-000206-6001

Specification: M6x16

Price: 1,80 € : 1,80 €

P/N (SKU): 9CR6-230001

Part Name: REAR BUMPER PLUG

Effective: 2024-05-08

Alternative parts:

Price: 3,30 € : 3,30 €

P/N (SKU): 5HY0-030600

Part Name: BRACKET, FRONT GEAR CASE

Effective: 2024-05-08

Alternative parts:

Price: 24,90 € : 24,90 €
